Sony HCD-LV80 - SECTION 8 EXPLODED VIEWS; 8-1. CASE AND BACK PANEL SECTION

66
1 1-769-977-11 WIRE(FLAT TYPE) (13 CORE)
2 1-693-488-11 TUNER(FM/AM)
3 4-227-751-21 PANEL, BACK (MY,SP)
3 4-227-751-31 PANEL, BACK (EA)
4 3-363-099-01 SCREW(CASE 3 TP2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SECTION 8
EXPLODED VIEWS

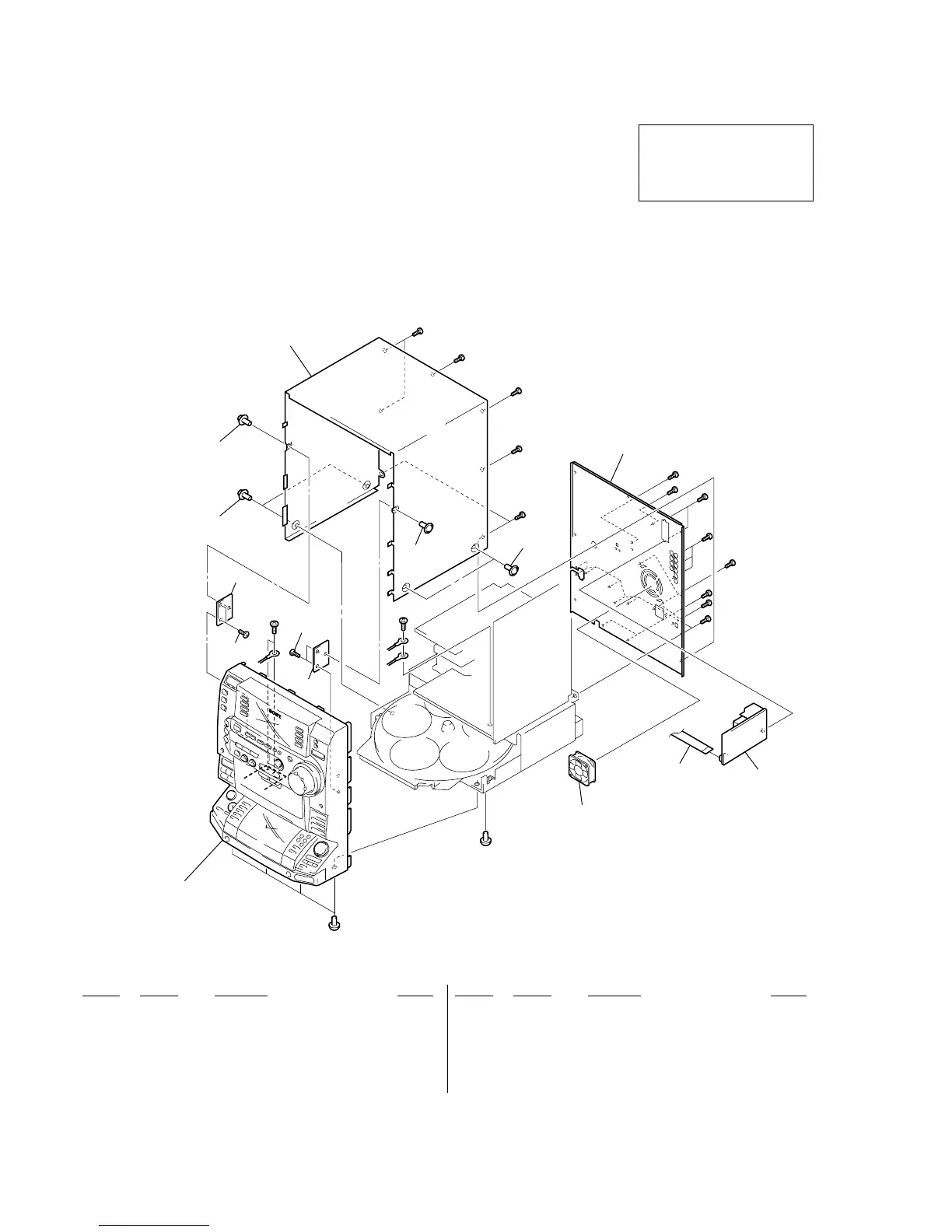

8-1. CASE AND BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
#3
#3
#3
#3
#3
#2
#3
#3
#1
#1
#1
#1
#3
#3
#3
#3
#3
M901
1
2
FRONT PANEL
4
4
4
4
5
3
7
7
6
6
• Abbreviation
SP : Singapore model
EA : Saudi Arabia model
MY : Malaysia model
5 4-214-777-51 CASE
6 4-225-517-01 HOLDER (CASE)
7 4-951-620-01 SCREW (2.6X8), +BVTP
M901 1-763-072-11 FAN, D.C.
