Sony HCD-LV80 - Printed Wiring Board - Power Section

HCD-LV80
40
40

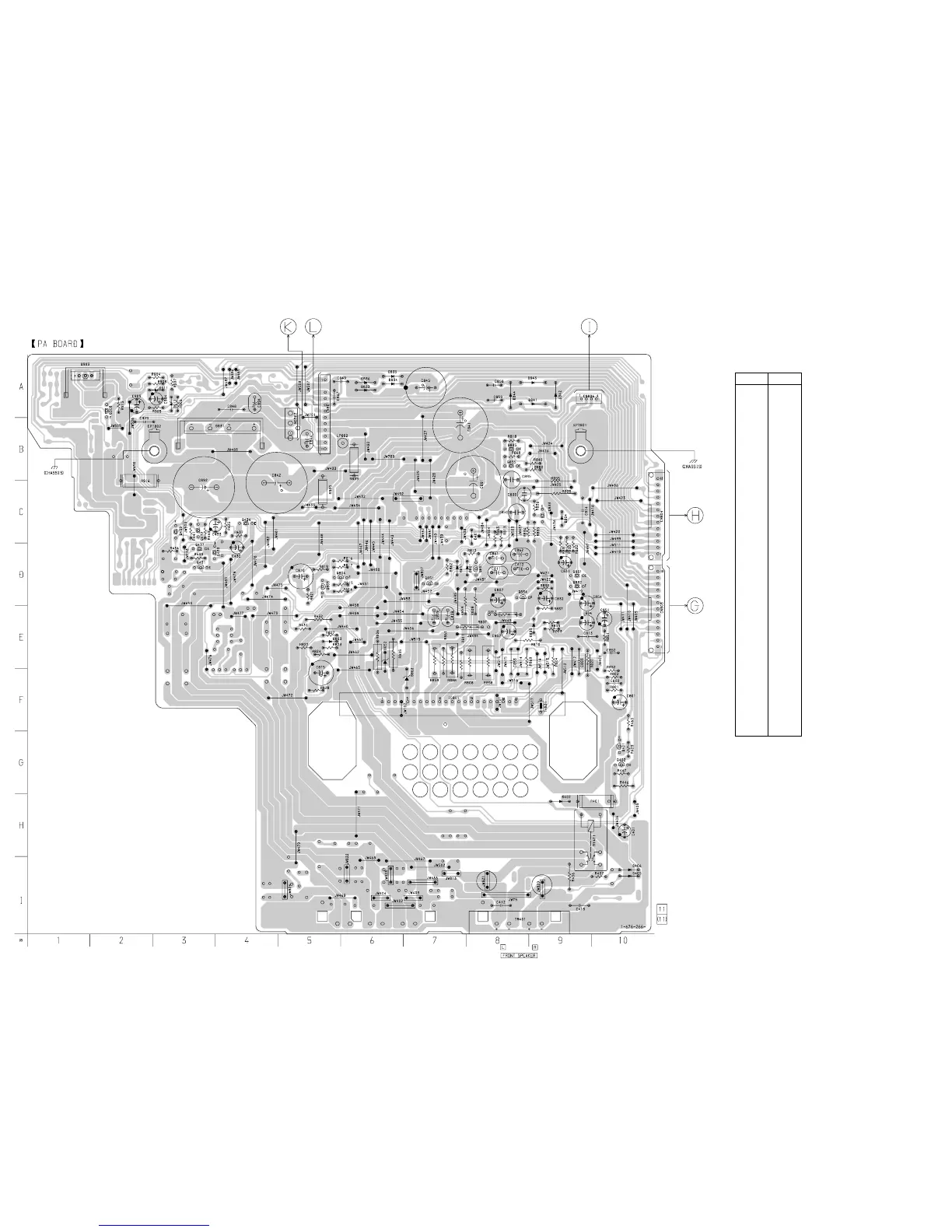

7-15. PRINTED WIRING BOARD – POWER SECTION –
• See page 19 for Circuit Boards Location.
(Page 53)
(Page 53)
(Page 48)
(Page 36)
(Page 36)
• Semiconductor
Location
D401 C-8
D402 H-9
D405 I-10
D406 I-10
D801 D-8
D802 F-7
D803 E-5
D804 C-9
D805 E-9
D831 B-4
D833 A-6
D834 A-6
D835 A-6
D836 A-6
D841 A-9
D842 A-9
D843 A-9
D844 A-8
D851 D-7
D852 E-6
D911 A-3
D912 A-3
IC801 F-7
Q401 G-10
Q402 G-10
Q431 D-3
Q432 C-3
Q433 D-4
Q434 C-4
Q437 D-3
Q439 C-3
Q801 D-8
Q803 D-5
Q804 D-6
Q805 B-8
Q831 D-9
Q832 D-9
Q833 C-9
Q834 D-8
Q851 D-7
Q855 B-8
Q903 A-1
Q908 A-2
Ref. No. Location
