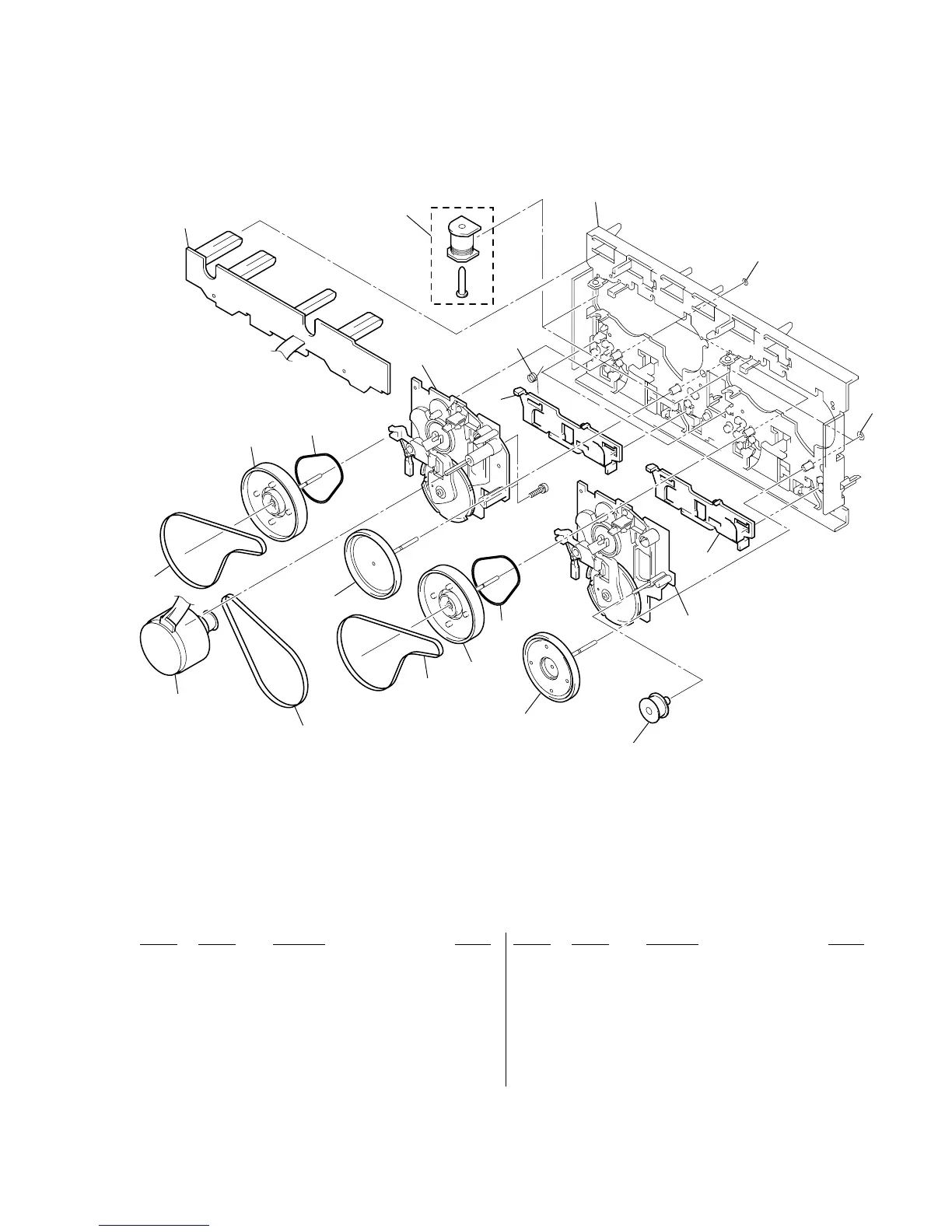

8-6. TC MECHANISM SECTION 2 (TCM230PWR12)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
451 X-4952-881-1 CHASSIS ASSY, MAIN
452 3-041-946-01 BELT (CAPSTAN B)
453 4-227-239-01 BELT (CAPSTAN C)
454 X-3378-247-1 FLYWHEEL (A-FWD) ASSY
455 X-3378-249-1 FLYWHEEL (B-FWD) ASSY
456 X-3378-250-1 FLYWHEEL (B-REV) ASSY
457 X-3378-248-1 FLYWHEEL (A-REV) ASSY
458 3-041-947-01 BELT (FR)
460 3-016-566-01 SLIDER, REVERSE
461 A-2007-852-A LEAF SW BOARD, COMPLETE
462 4-228-450-01 SPRING(REVERSE SLIDER),TORSION
463 3-019-208-01 WASHER, STOPPER
464 A-2004-752-A BLOCK (A) ASSY, MECHANICAL
465 1-454-887-21 SOLENOID, PLUNGER
466 A-2004-753-A BLOCK (B) ASSY, MECHANICAL
#11
451
465
452
453
452
454
455
457
464
456
458
458
460
460
461
462
466
463
463
M1
not supplied
