8
Display
E@@M#*****
@@ : Error number. 00 is the newest.
# : Operating state of table
0 : Currently in the INITIAL mode
7 : Currently rotating to the right
8 : Currently rotating to the left
A : Currently chucking down
B : Currently chucking up
* : Invalid
• Viewing the NO DISC ERROR history display
(Switch the history by pressing the REPEAT button.)
Display
E@@D##$$%*
@@ : Error number. 00 is the newest
## : Error contents
01: Focus error
02: GFS error
03: Setup error
$$ : Retries
00: NO DISC is determined without attempting chucking retry
02: NO DISC is determined after chucking retry.
% : State when determined as NO DISC
1 : When stopped
2 : At setup
3 : At TOC READ
4 : When accessing
5 : When playing
6 : When pausing
7 : When manual searching (during play)
8 : When manual searching (during pausing)
* : Invalid

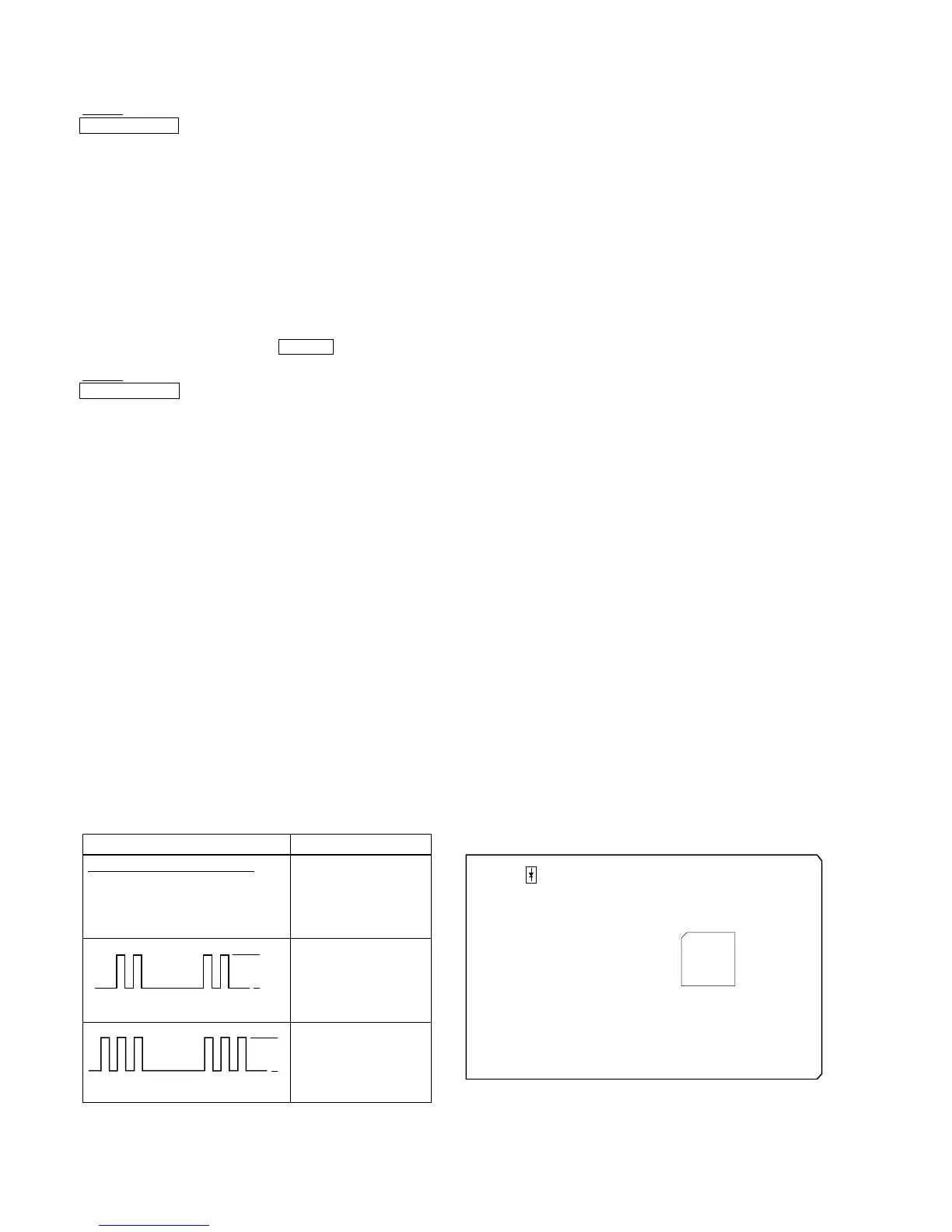

SELF-DIAGNOSIS
This model has the self-diagnosis function for the VIDEO and AUDIO decoder sections.
Immediately after the power on, the self-diagnosis function searches each operation of IC’s around the mechanism control microcomputer
(IC701).
The results can be checked by D502 of the VIDEO board.
Oscilloscope (Waveform) Symptom
No error
MPEG decoder (IC505)
error
MPEG decoder (IC505)
or
DRAM (IC507) error
[VIDEO BOARD] (SIDE A)
D502
IC505
100
91
33
64
90
65
1
32
