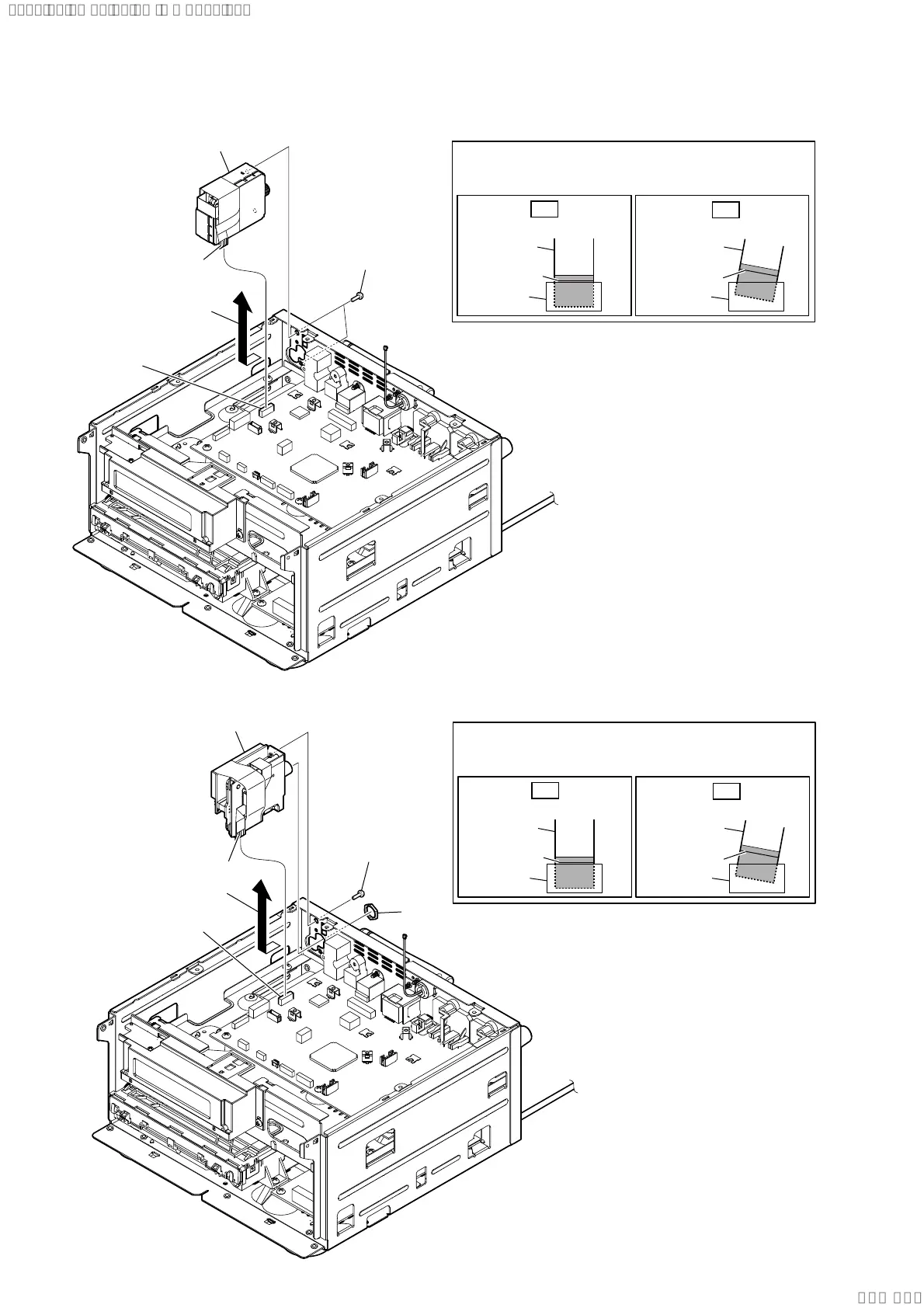

2-14. TUNER BLOCK (SX7)
2-15. DAB BOARD BLOCK (SX7B)
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
 How to install the flexible flat cable
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
4 tuner block
2 connector
(CN001)
1 two screws
(BV/ring)
(L=8 mm)
3 Remove the tuner block in
the direction of the arrow.
terminal side
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
 How to install the flexible flat cable
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
5 DAB board block
3 connector
(CN001)
1 screw
(BV/ring)
(L=8 mm)
4 Remove the DAB board block
in the direction of the arrow.
2 nut
Note:
Use needle-nosed pliers
to remove the nut.
terminal side
