67
HCD-SX7/SX7B
SECTION 6
EXPLODED VIEWS
1 3-077-331-21 +BV3 (3-CR) (L = 6 mm)
2 4-485-564-11 CUSHION FOOT
3 4-485-549-01 FOOT
4 4-549-189-01 PANEL (TOP) (SX7/SX7B: AUS)
4 4-549-189-11 PANEL (TOP) (SX7B: AEP, UK)
5 4-569-677-31 HI-RES LABEL
6 3-704-515-22 SCREW (BV/RING) (L = 8 mm)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.

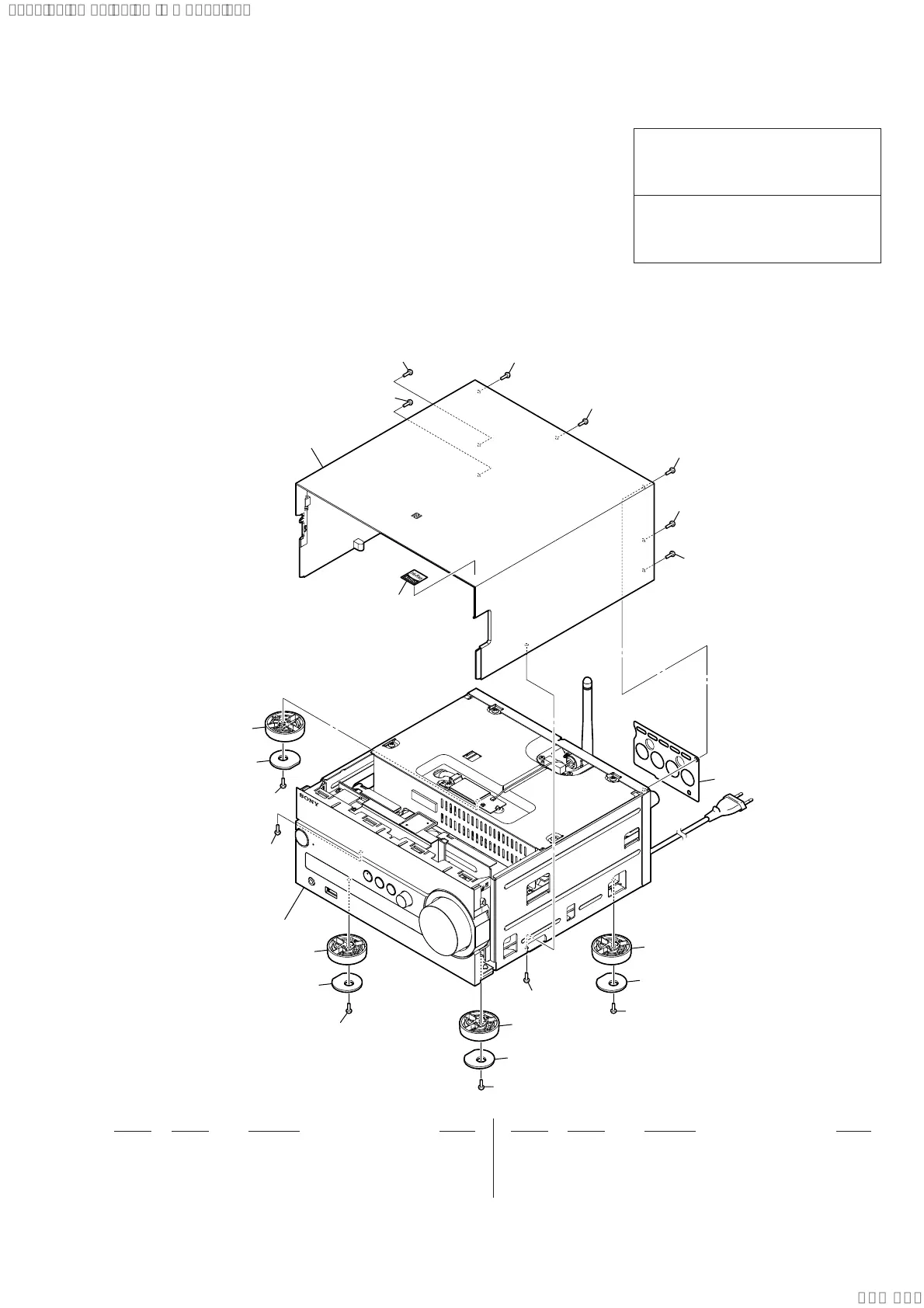

6-1. PANEL (TOP) SECTION
not supplied
1
1
1
6
6
1
2
3
4
5
6
6
6
6
6
6
6
2
3
2
3
2
3
base (CD) section
SYSSET
