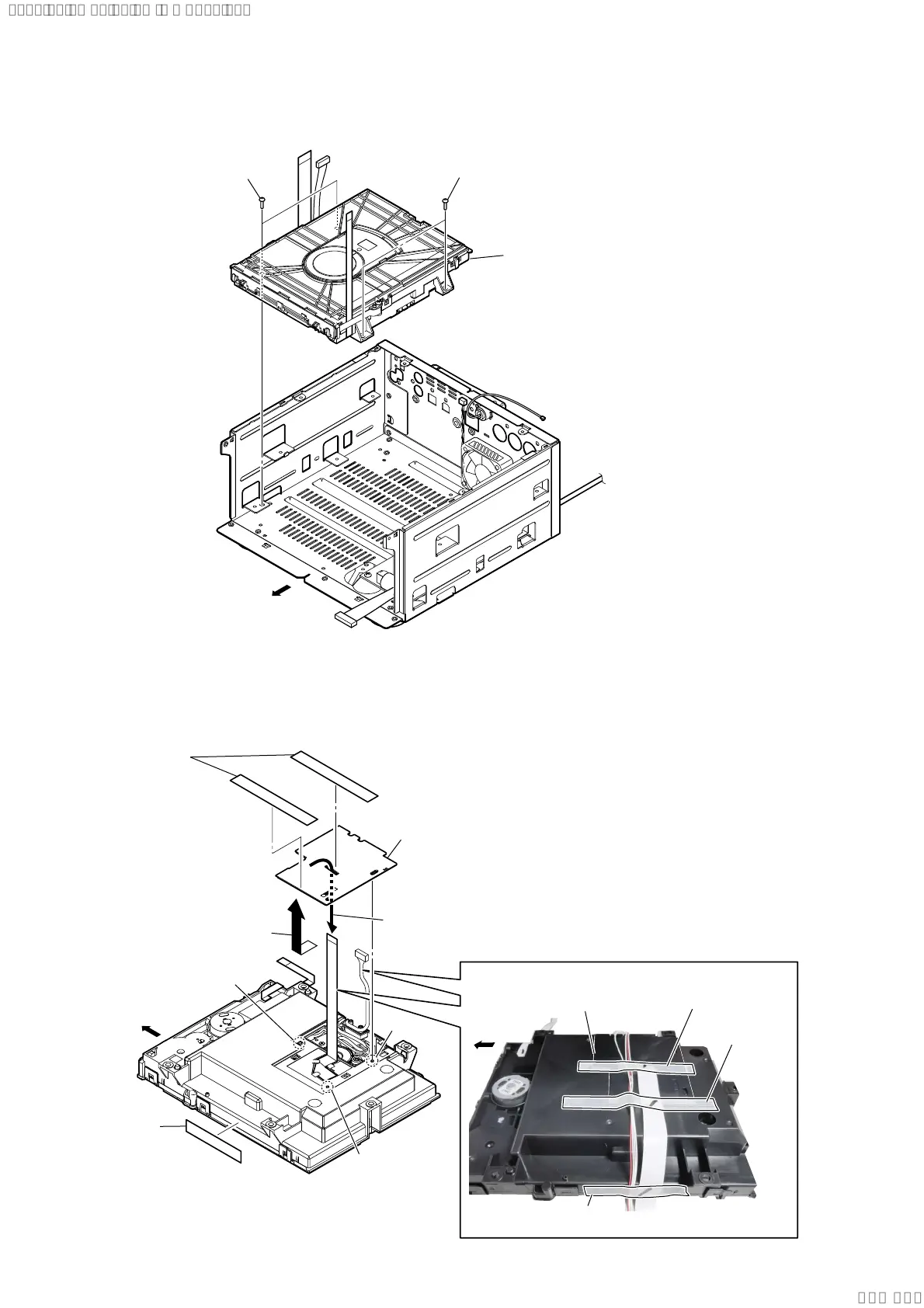

2-24. CD MECHANISM DECK BLOCK
2-25. FFC HOLDER
2 CD mechanism deck block
1 two screws
(BV3 u 6)
1 two screws
(BV3 u 6)
Front side
1 two filament tapes
(sub material)
1 filament tape
(sub material)
boss
boss
claw
– CD mechanism deck block bottom view –
4
FFC holder
Note:
When installing the FFC holder,
check that installed firmly
claw and two bosses.
2 Remove the
FFC holder
in the
direction of the arrow.
3 Draw the flexible flat cable (24 pin).
out of the hole in FFC holder.
:LUHVHWWLQJ
filament tape
(sub material)
filament tape
(sub material)
FFC holder
filament tape
(sub material)
Front side
Front
side
