Sony HCD-VX555 - Front Panel Section

7
HCD-VX555/VX555J

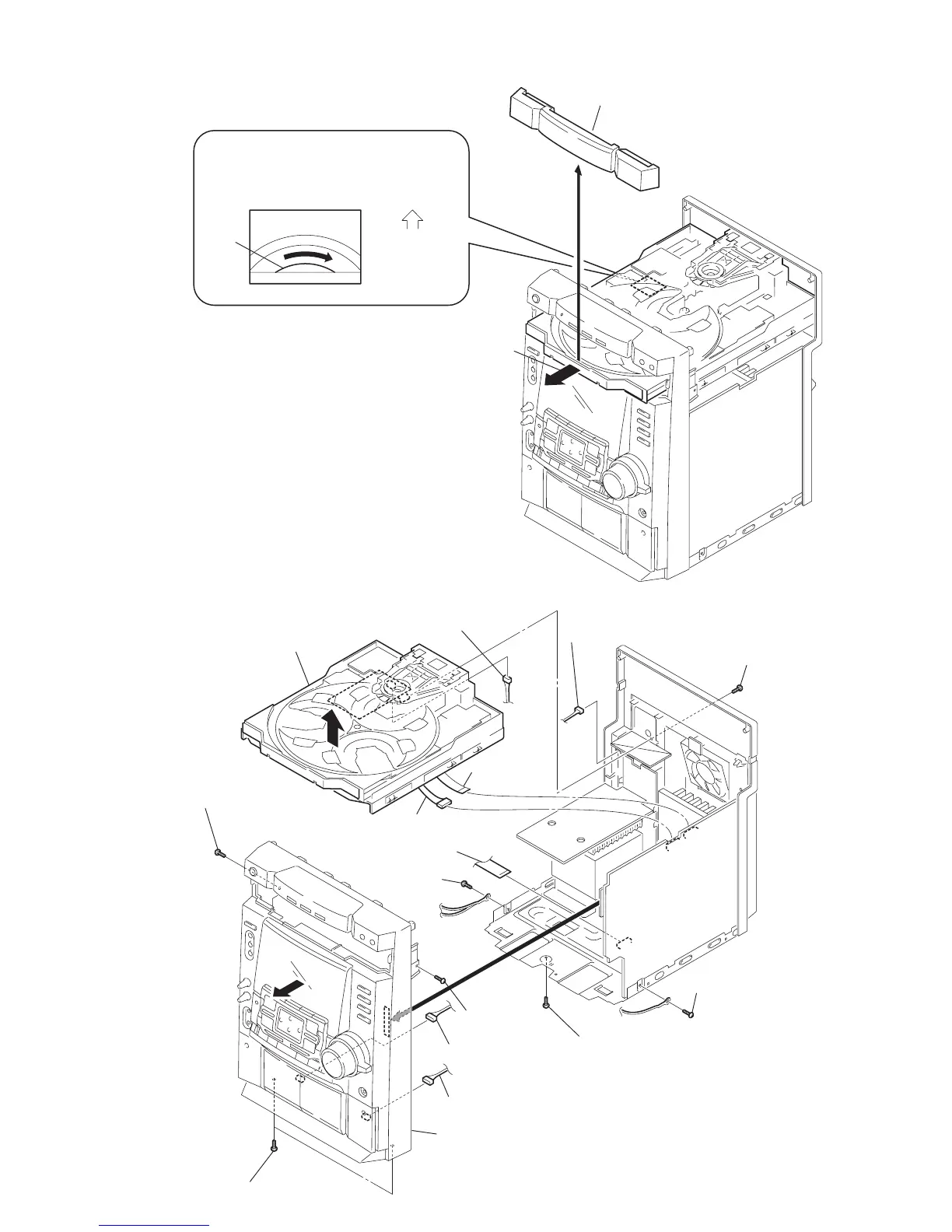

2-3. FRONT PANEL SECTION
2-2. LOADING PANEL ASSY
2 Pull-out the disc tray.
1 Turn the pulley to the direction of arrow.
pulley
Loading panel
Front panel side
CD mechanism deck (CDM58E)
3
qh
qg
7
CD mechanism deck
(CDM58E-30BD61A)
Front panel ASSY
qa Connector (CN2)
qs Connector (CN1)
3 Connector (CN301)
2 Connector (CN202)
7 Flat type wire (17 core)
1 Flat type wire
(13 core)
qd Two screws (+BVTP 3 × 10 )
q; Connector (CN607)
8 Screws (+BVTP 3 × 10 )
4 Screws (+BVTP 3 × 8 )
9 Screws
(+BVTP 3 × 10)
5 Screw
(+BVTP 3 × 10)
qf Screw
(+BVTP 3 × 10)
6 Screw (+BVTP 3 × 10)
