8
HCD-VX555/VX555J

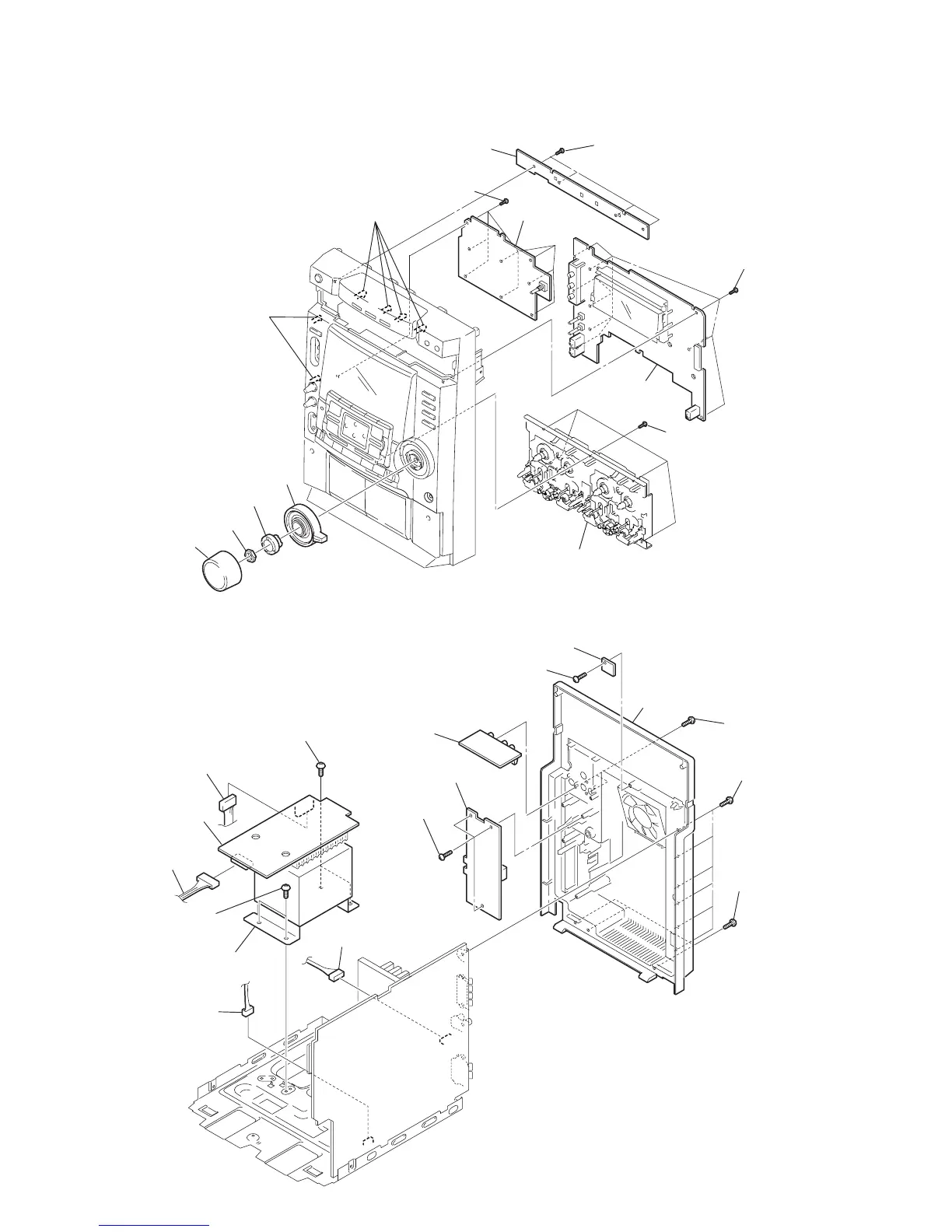

2-4. PANEL BOARD
2-5. SUB TRANS BOARD AND MAIN TRANS BOARD
q; PANEL board
7 CD SWITCH board
qs PAD
SWITCH board
1 Knob (Volume)
2 Nut
3 Bracket (ring)
4 Ring (FR)
6 Four claws
9 Two claws
5 Four screws
(+BVTP 2.6 × 8)
8 Nine screws
(+BVTP 2.6 × 8)
qd Five screws
(+BVTP 2.6 × 8)
qa Eight screws
(+BVTP 2.6 × 8)
qf Tape mechanism deck
3 Two screws
(+BVTT 4
× 8)
q; Six screws
(+BVTP 3
× 10
)
9 Three screws
(+BVTP 3
× 10)
qa Back panel
4 Two screws
(+BVTT 4
× 8)
6 MAIN TRANS board
5 Power transformer (T910)
1 Connector (CN973)
2 Connector (CN977)
8 Connector (CN504)
7 Connector (CN891)
qs Screw (+BVTP 3 × 10)
qg SWITCH board
qd SENSOR board
qf Two screws
(+BVTP 3
× 8)
qh Three screws
(+BVTP 3
× 10)
qj SUB TRANS board
