Sony HDC-P1 - Board

2-10 (E)
HDC-P1

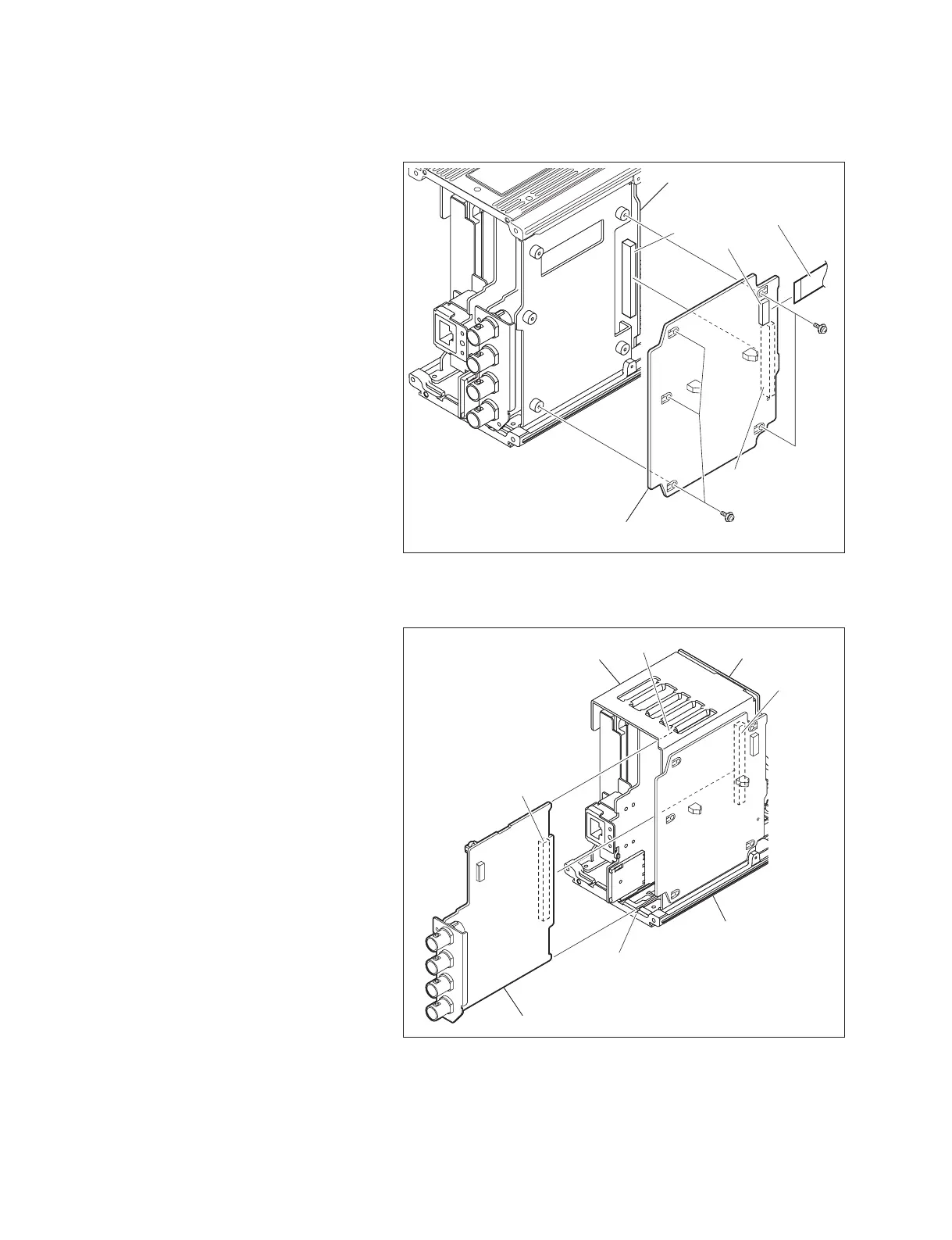

2-7-3. DPR-315 Board
1. Remove the side panel (L) assembly.
(Refer to Section 1-5.)
2. Disconnect the fl exible fl at cable from he
connector (CN1) on the DPR-315 board.
3. Remove the fi ve screws and remove the
DPR-315 board.
4. Install the new DPR-315 board by reversing
the steps of removal.
n
When installing the DPR-315 board, connect the
connector (CN701) on the DPR-315 board fi rmly
to the connector (CN5) on the MB-1158 board.
2-7-4. DPR-316 Board
1. Remove the side panel (L) assembly and the
side panel (R) assembly.
(Refer to Section 1-5.)
2. Remove the rear panel assembly.
(Refer to Section 2-6.)
3. Pull out the DPR-316 board.
4. Install the new DPR-316 board by reversing
the steps of removal.
m
. Insert the DPR-316 board into the groove
between the bottom cover and the sub-
chassis.
. Connect the connector (CN201) on the
DPR-316 board fi rmly to the connector
(CN4) on the MB-1158 board.
DPR-315 board
MB-1158 board
Flexible flat cable
CN5
CN1
CN701
PSW
M2 x 5
PSW
M2 x 5
DPR-315 board
MB-1158 board
Flexible flat cable
CN5
CN1
CN701
PSW
M2 x 5
PSW
M2 x 5
DPR-316 board
MB-1158 board
Sub-chassis
Bottom cover
Groove
Groove
CN4
CN201
DPR-316 board
MB-1158 board
Sub-chassis
Bottom cover
Groove
Groove
CN4
CN201
