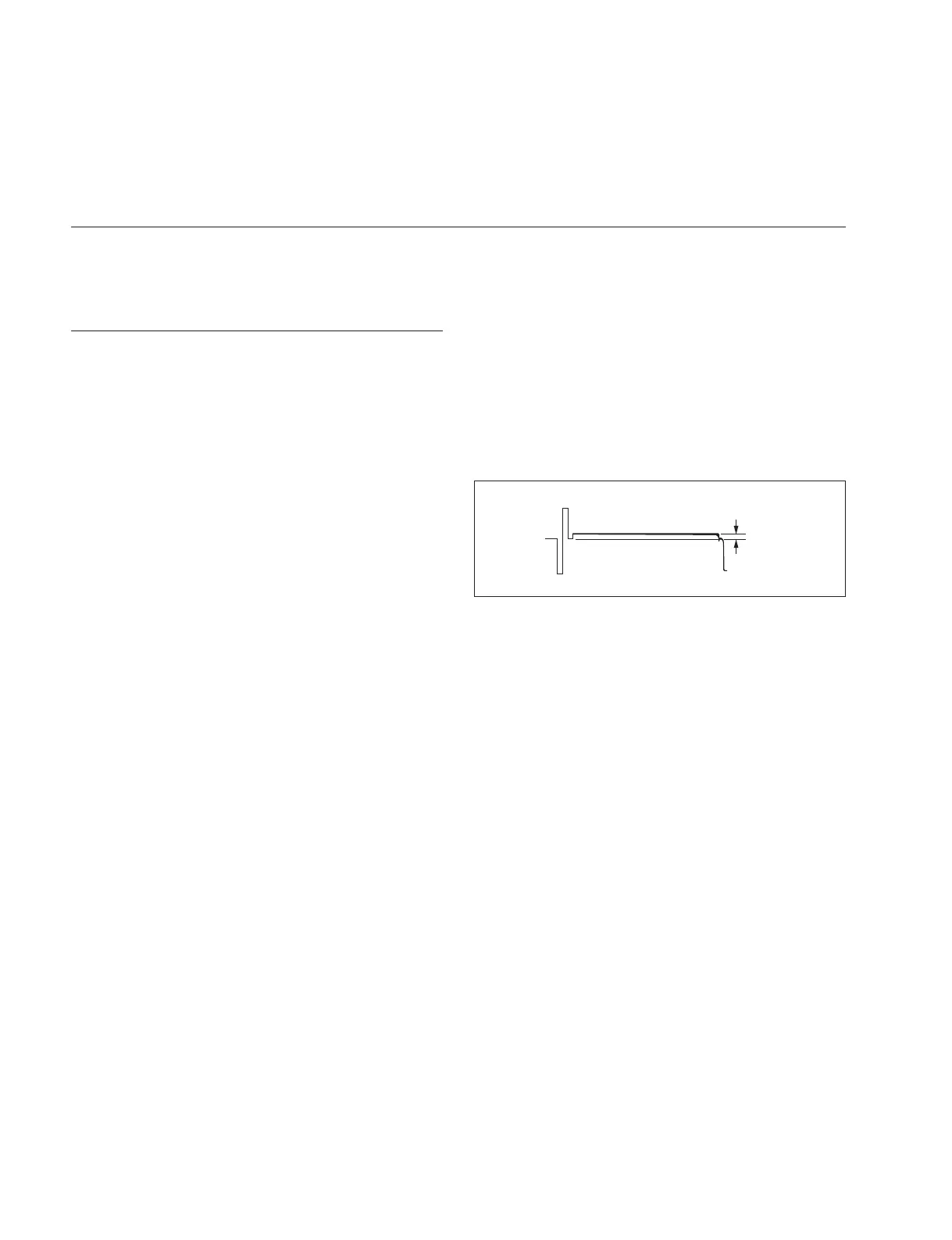

3-4-7. Pedestal Level Adjustment
Equipment: Waveform monitor (R, G, B)
Test Point: SDI 1 and SDI 2 connectors
Preparation
. Setting for MSU-900
CLOSE button → ON (lit)
Adjustment Procedure
1. MSU menu operation:
. PAINT button → ON (lit)
. Touch panel operation
(Page 1/4) → [Black]
Adjustment item: R, G, B, Master
Specifi cation: Adjust the levels A to desired
level for R, G and B respectively.
To adjust all levels for R, G and
B simultaneously, adjust them
using Master.
(Reference value: A = 21 mV)
To Next Page
