4-10. DR-697 Board (HDC-P50)
Preparation
1. Remove the inside assembly. (Refer to "4-5. Inside Assembly")
2. Remove the FD assembly. (Refer to "4-9. FD Assembly (HDC-P50)")
Procedure
1. Disconnect the two harnesses from the two connectors (CN5 and CN6) on the DR-697 board.
2. Remove the three screws.
3. Pull out the connector (CN4) on the DR-697 board from the connector (CN1) on the SE-1197 board in the direction of the arrow
to remove the DR-697 board.
4. Install the removed parts by reversing the steps of removal.

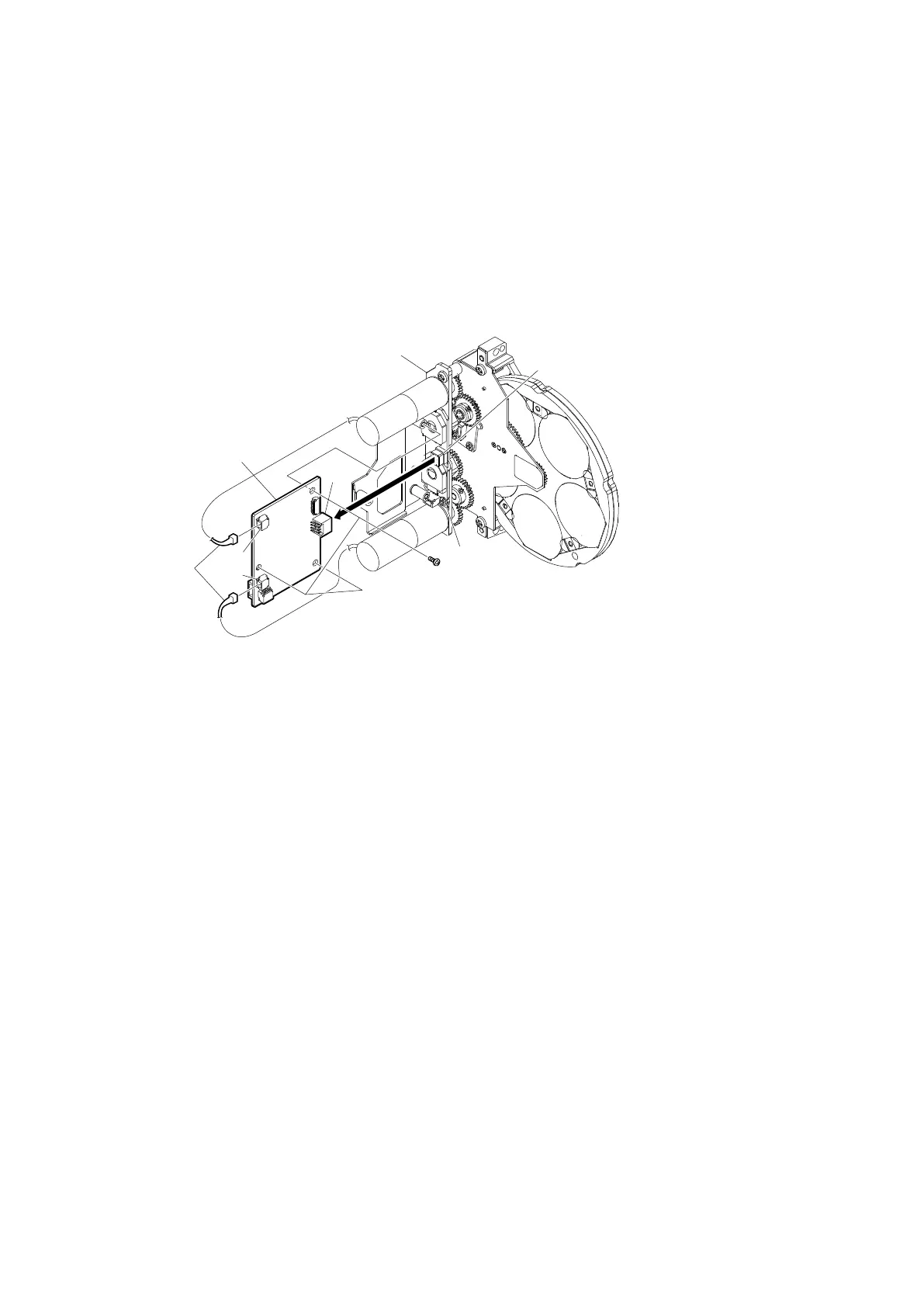

FD assembly
P2 x 3
Harnesses
CN5
CN6
DR-697 board
SE-1
197 board
CN4
CN1
