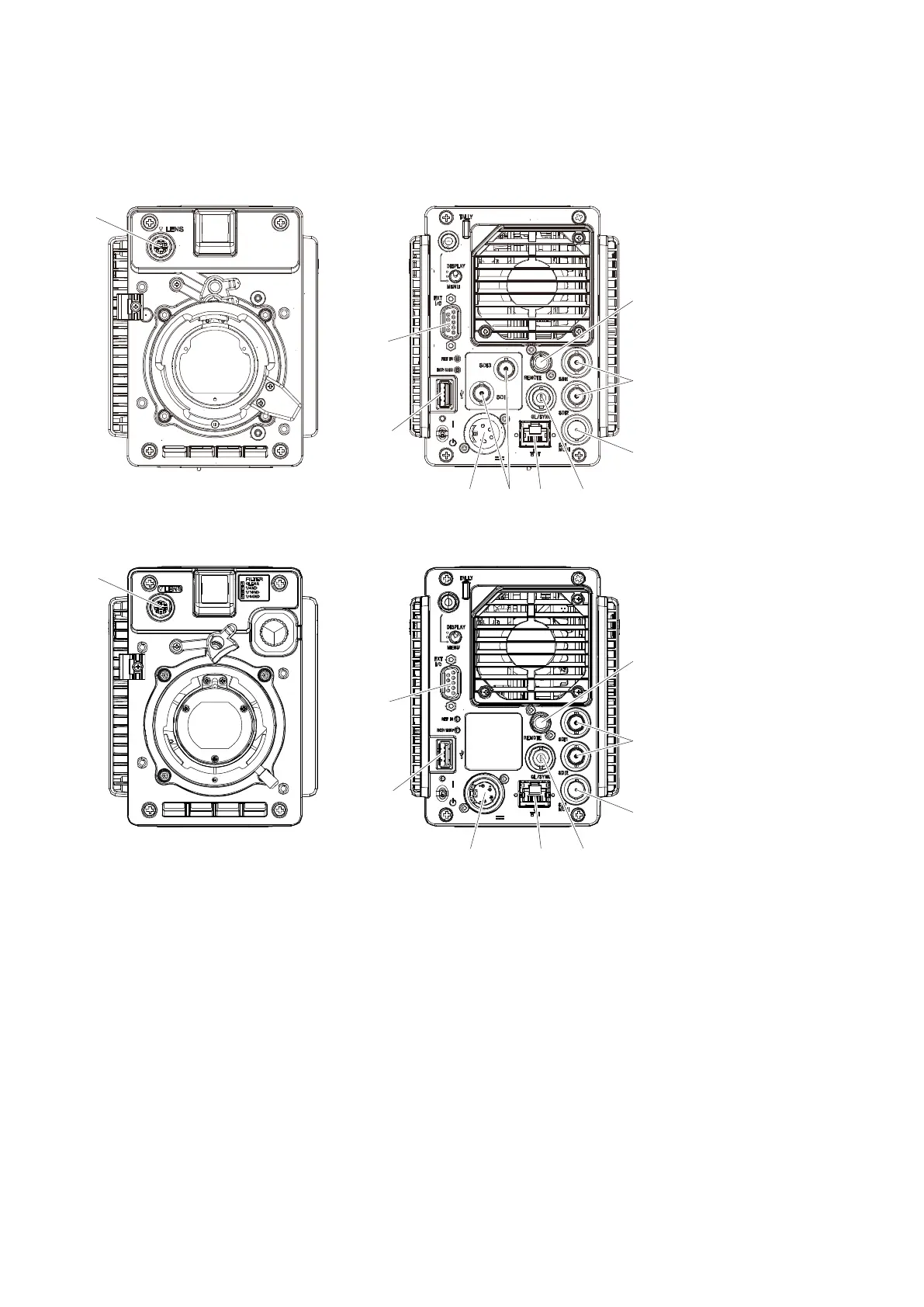

1-3. Connectors and Cables
1-3-1. Connector Input/Output Signals
HDC-P50
HDC-P31
1. GL/SYNC
BNC type
0.6 Vp-p 75 Ω
2. SDI 1/2 (HDC-P50)
BNC type
12G SDI signal
SMPTE ST2082-1 compliant
0.8 Vp-p 75 Ω, 11.88 Gbps/11.8681 Gbps serial
3G SDI signal
SMPTE 424M/425M-B compliant
0.8 Vp-p 75 Ω, 2.97 Gbps/2.9679 Gbps serial or HD SDI signal
SMPTE 292M/372M, BTA-S004 compliant
0.8 Vp-p 75 Ω, 1.485 Gbps/1.4835 Gbps serial
