5-4-11. White Clip Level Adjustment
Equipment: Waveform monitor (R, G, B)
Test Point: SDI 1 connector
Preparation
• Setting for the MSU
MASTER GAIN → 12 (12 dB)
TEST 1 button → ON (lit)
Procedure
1. Operate the control panel of MSU, and set as follows.
(1) PAINT button → ON (lit)
(2) Touch panel operation: (Page 2) → [White Clip]

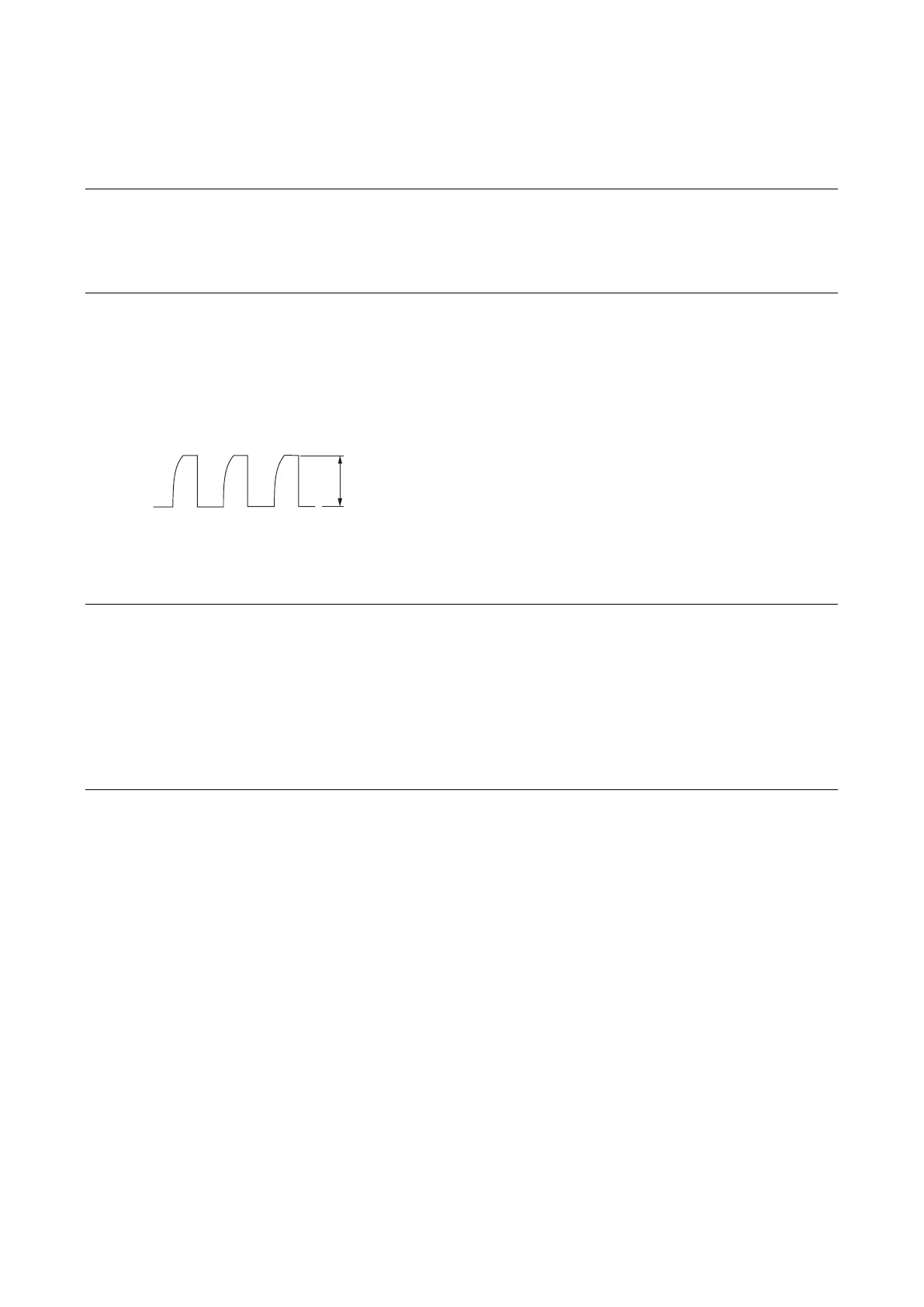

2. Adjust the levels A to desired level for R, G and B respectively.
To adjust all levels for R, G and B simultaneously, adjust them using [Master].
• Adjustment item: [R], [G], [B], [Master]
• Reference value: A = 756 mV
3. Store the reference file.
(Refer to “5-4-12. File Store”.)
Setting after adjustment
• Setting for the MSU
MASTER GAIN → 0 (0 dB)
TEST 1 button → OFF (unlit)
5-4-12. File Store
After adjustments described in “5-4. Video System Level Adjustment” are completed, be sure to store the reference file.
Reference file store
Operate the control panel of MSU, and store file.
Procedure
1. FILE button → ON (lit)
2. Touch panel operation: [Ref File] → [Ref Store] → [Start]
After the reference file entry is completed, a message “Completed” is displayed.
A
