Sony HDC-P31 - CMOS Block Assembly (HDC-P31)

41
4-13. CMOS Block Assembly (HDC-P31)
Hexagonal wrench (Width across : 1.5 mm, 2.5 mm) are necessary as tools.
Preparation
1. Remove the outside assembly. (Refer to "4-4. Outside Assembly")
2. Remove the inside assembly. (Refer to "4-5. Inside Assembly")
3. Remove the front panel block. (Refer to "4-7. Front Panel Block")
Procedure

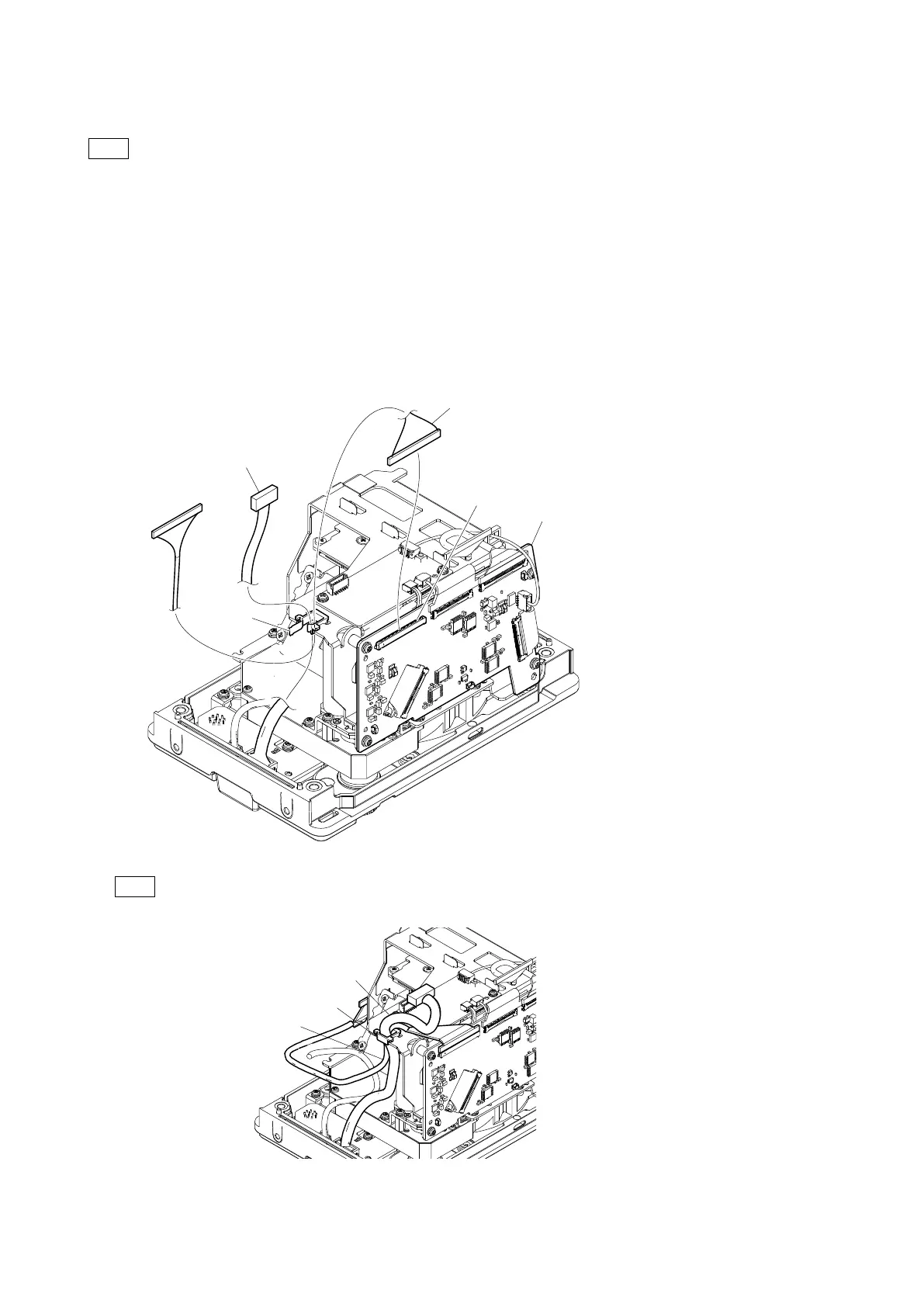

1. Release the harness and the fine-wire coaxial cable from the clamper.
2. Disconnect the fine-wire coaxial cable from the connector (CN007) on the IF-1331 board.
When installing the CMOS block assembly, arrange the harnesses as shown figure.
Tip
Harness
Clamper
Fine-wire coaxial cable
CN007
IF-1331 board
N
ote
Clamper
Fine-wire coaial cable
Harness
