4-24. NET-49 Board
Preparation
1. Remove the outside assembly. (Refer to "4-4. Outside Assembly")
2. Remove the inside assembly. (Refer to "4-5. Inside Assembly")
3. Remove the front panel block. (Refer to "4-7. Front Panel Block")
4. Remove the rear panel assembly. (Refer to "4-18. Rear Panel Assembly")
5. Remove the SY-471 board. (Refer to "4-21. SY-471 Board")
6. Remove the MB-1259 board. (Refer to "4-23. MB-1259 Board")

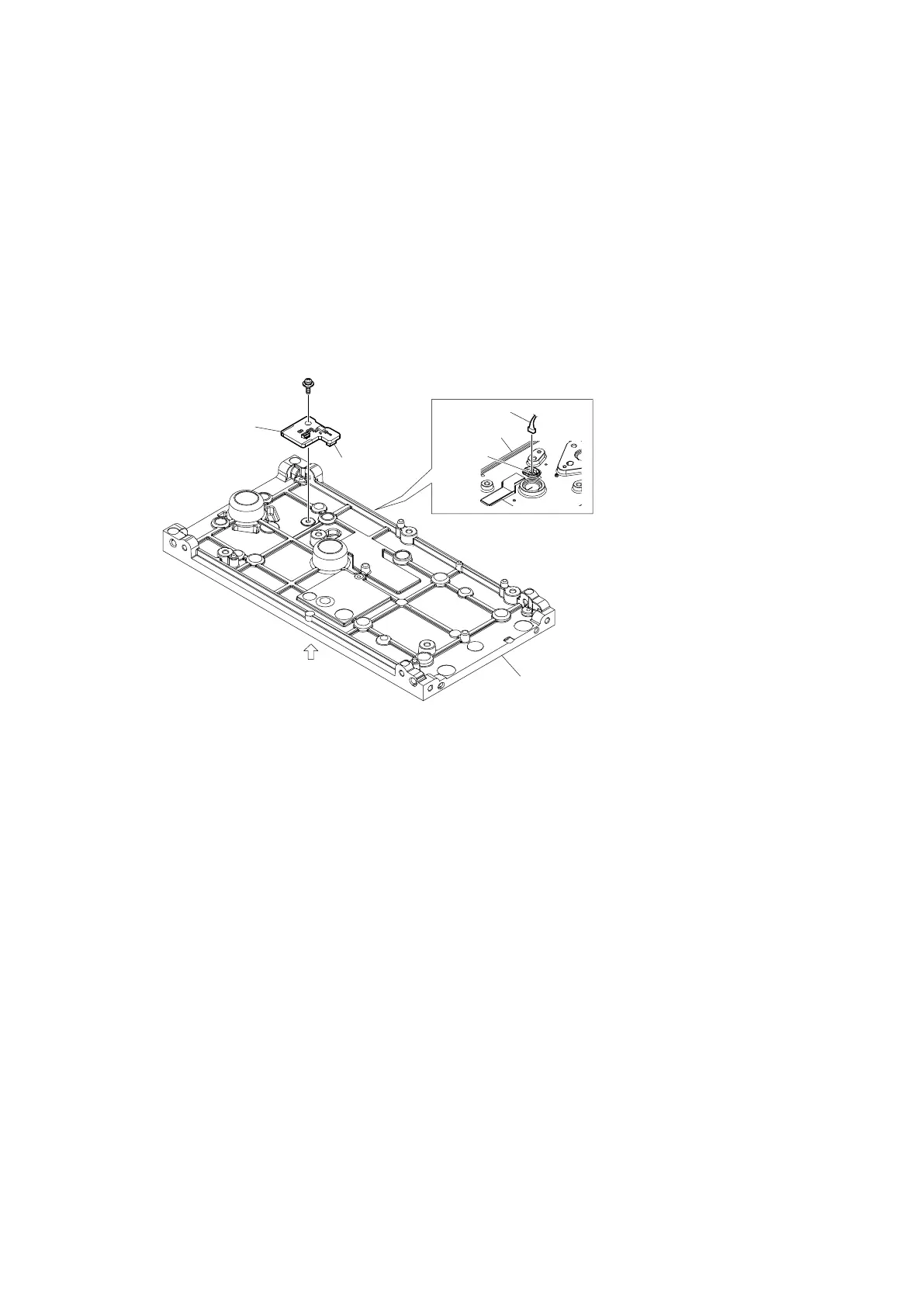

Procedure for removal
1. Disconnect the harness from the connector (CN003) on the NET-49 board.
2. Remove the screw, and then remove the NET-49 board.
PSW
2 x 5
Harness
NET-49 board
A
View on arrow A
CN003
CN003
Bottom cover
Bottom cover
