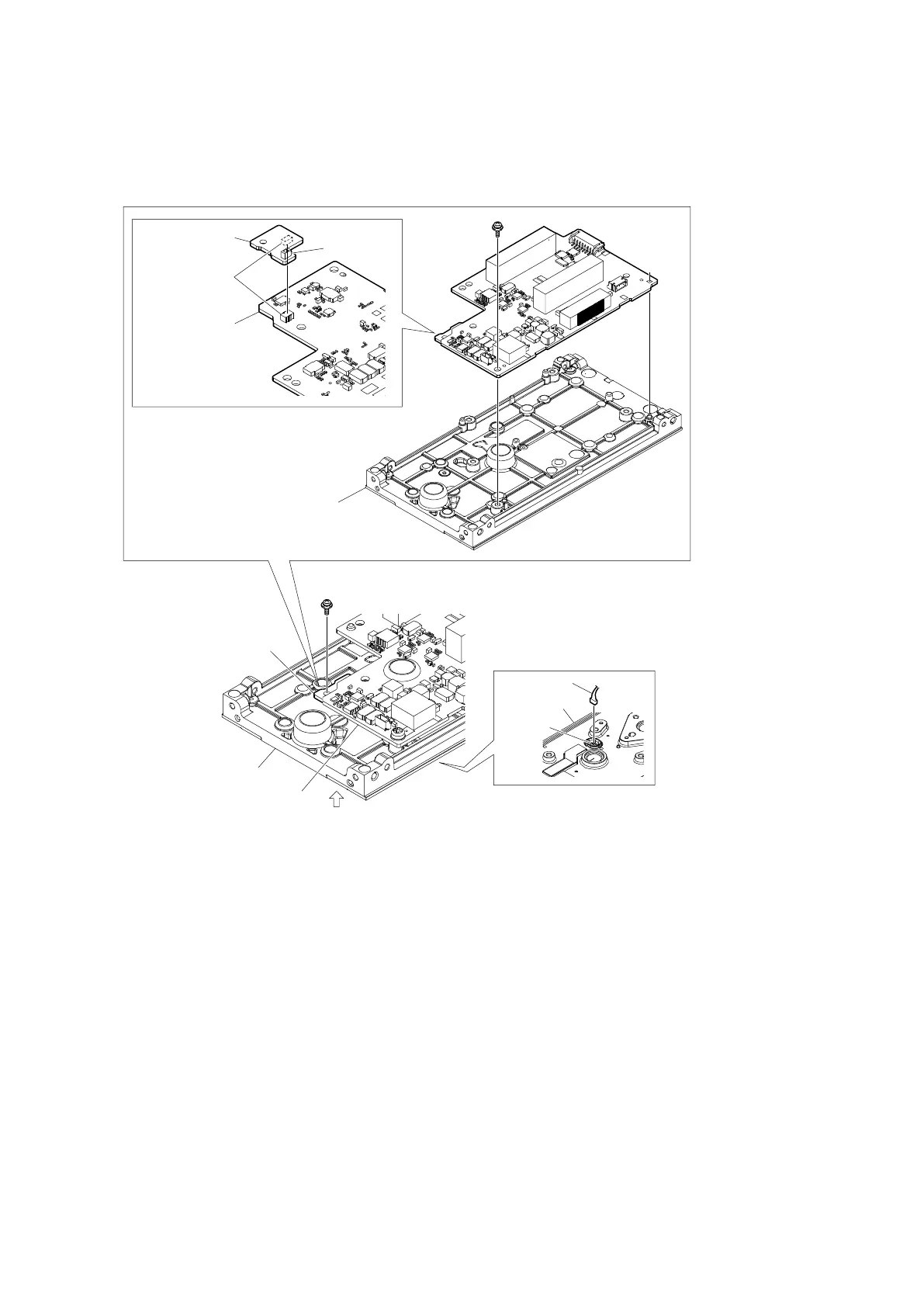

Procedure for installation
1. Connect the connector on the NET-49 board to the B to B connector on the MB-1259 board.
2. Install the MB-1259 board to which the NET-49 board is installed with the screw (PSW3 x 8).
3. Install the NET-49 board with the screw (PSW2 x 5).
4. Connect the harness to the connector (CN003) on the NET-49 board.
PSW
3 x 8
PSW
2 x 5
Harness
A
View on arrow A
NET-49 board
CN003
B-to-B connectors
NET-49 board
MB-1259 board
MB-1259 board
CN003
Bottom cover
Bottom cover
Bottom cover
