System Configuration
Note
Production of some of the peripherals and related devices shown in the figures has been discontinued. For advice on
choosing devices, please contact your Sony dealer or a Sony sales representative.

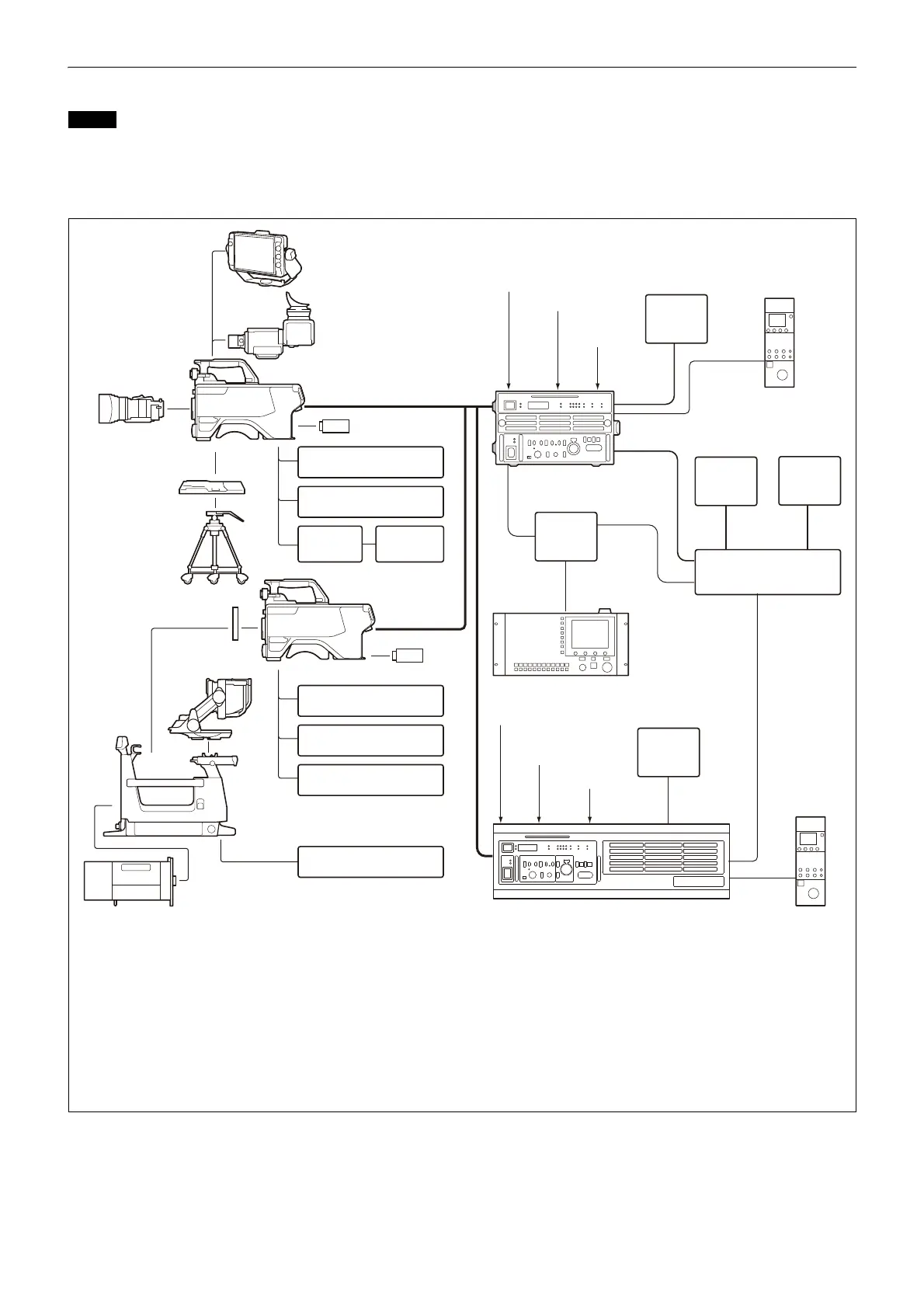

Connection example (4K optical fiber transmission)
Lens
(for ENG/EFP)
VCT-14 Tripod
Attachment
Tripod
USB drive
Camera hanger
a)
HDVF-EL70
Viewfinder
CAC-6 Return Video
Selector
Intercom headset
Microphone
HDLA1500-series Large
Lens Adaptor
BKP-7911 Script Holder
Lens
(for studio camera use)
HDVF-EL75/L750/L770
Viewfinder
HDC5500
HDC3500
b)
Optical fiber cable
c)
CAC-6 Return Video
Selector
Intercom headset
CAC-12
Microphone
Holder
Microphone
HDC5500
HDC3500
b)
HDVF-EL20
HDVF-EL30
Viewfinder
MSU-1000 series
Master Setup Unit
a) Supplied with HDLA1500 series (Part No.: A-1128-405-A)
b) Installation of the HKC-FB50 Fiber Transmission Adaptor and HKC-CN50 Side Panel Attachment Kit is required.
c) Signal transfer up to a maximum of 4 km is possible when using the HDCU5000, or 2 km when using the HDCU5500.
However, the actual transfer distance may vary depending on the system configuration of the cameras, the type of
optical fiber cables used, and the shooting format.
d) Configure the following menu items on the camera control unit according to the connected camera.
SYSTEM CONFIG t <CAMERA I/F> t CABLE TYPE t FIBER CAMERA CABLE
SYSTEM CONFIG t <CAMERA I/F> t FIBER TRANSMIT RATE t ULTRA
For details, refer to the operation manual of the camera control unit.
USB drive
RCP-3000/1000
series
Remote Control Panel
Sync signal input
Return video input
Intercom
microphone
input
4K video
monitor
CCA-5
Video
monitor
Waveform
monitor
BNC
HDCU5500
Camera Control Unit
d)
Video router
Hub
BNC
LAN cable
LAN
cable
LAN
cable
Sync signal input
Return video input
Intercom
microphone
input
BNC
BNC
4K video
monitor
HDCU5000
Camera Control Unit
RCP-3000/1000 series
Remote Control Panel
CCA-5
