SECTION 2
SELF DIAGNOSTIC FUNCTION
12
DIAGNOSTIC TEST INDICATORS
When an error occurs, the Smart Core Red LED will flash a set number of times to indicate the possible cause of the problem.
If there is more than one error, the LED will identify the first of the problem areas.
Result for all of the following diagnostic items are displayed on screen.
If the screen displays a “0”, no error has occurred .
The units in this manual contain a self-diagnostic function. If an error occurs, the Smart Core Red LED will automatically begin to flash.
The number of times the LED flashes translates to a probable source of the problem.
A definition of the Smart Core Red LED flash indicators is listed in the instruction manual for the user’s knowledge and reference.
If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to
reveal past problems and how often these problems occur.

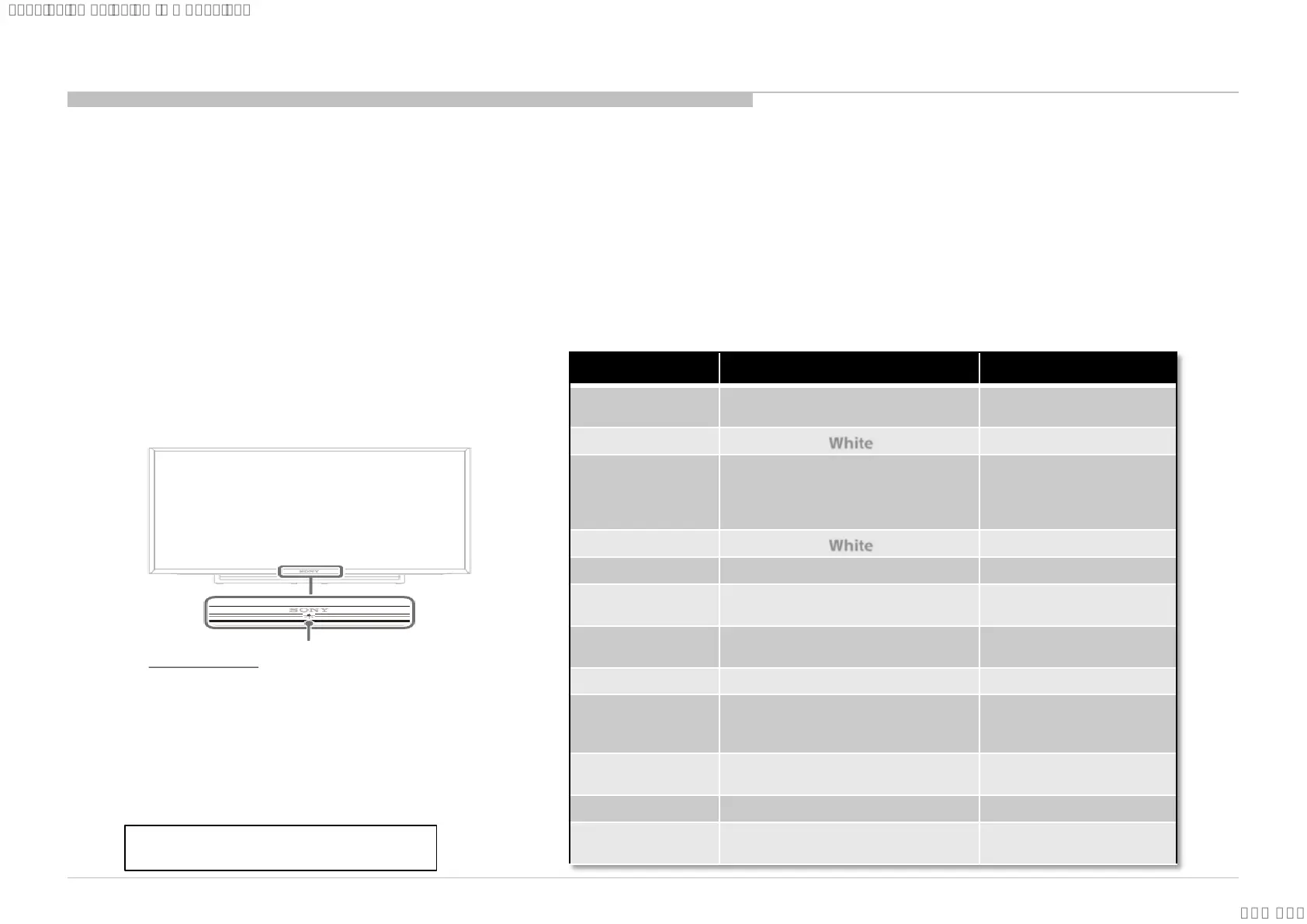

Status
LED Colour
Remarks
Power Off
( AC Off and *1)
OFF
*1 power switch off (by
Side Key)
Power On
White
Standby
( by remote control
off and Side Key
off)
OFF
Picture Off
White
Set "Sleep Timer"
Amber
Set "On Timer"
( Power On )
Amber
Set "On Timer"
( Standby )
Amber
Picture Frame
Amber
Failure
Red Blinking
The number of LED
blinking indicates cause of
failure.
Error of panel ID
Amber / Green Blinking
Blinking:0.5sec Amber/
0.5sec Green
Software Updating
Amber Blinking
Blinking: 1sec On / 1sec Off
Software Updating
failure
Amber / Red Blinking
Blinking:1 sec Amber/ 1sec
Red
Amber = Red + Green
LED Indicator
• Lights up in white when you select “Picture Off”.
• Lights up in amber when you set the timer or
“Photo Frame Mode”.
• Lights up in white when the TV is turned on.
• Flashes while the remote is being operated.
