3.12 HDMI No Picture

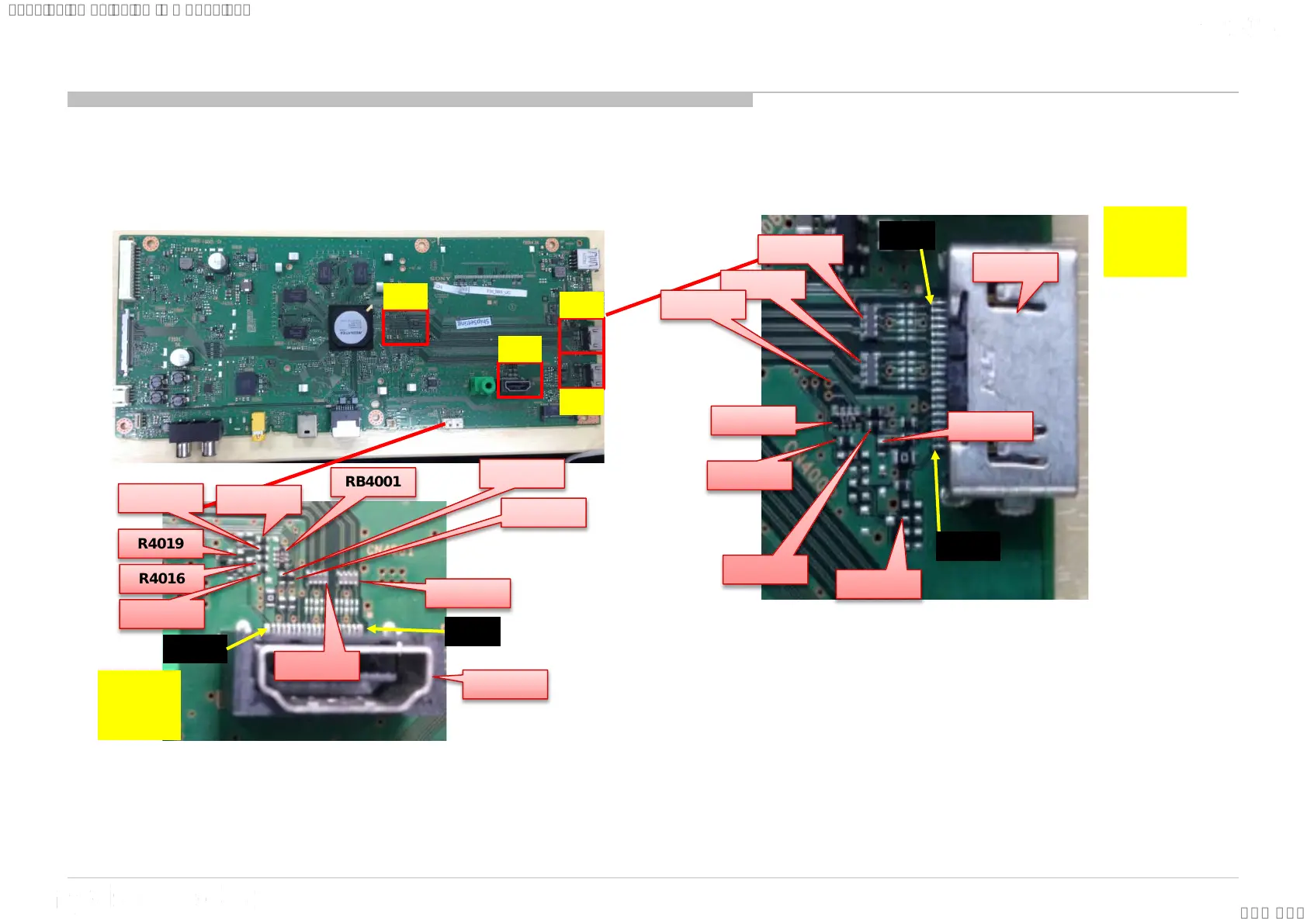

HDMI No picture– Checking Point
Pin 19
Pin 1
Zoom 1
Zoom 2
Zoom 4
Zoom 3
R4019
R4016
RB4001
VR4010
L4003
L4002
Zoom 1 :
HDMI1
CN4001
Zoom 2 :
HDMI2
Pin 1
Pin 19
L4004
L4005
RB4002
VR4011
More on the next slide…
CN4002
R4007
R4004
R4005
R4008
R4022
R4025
R4044
R4043
SYSSET
