Sony KD-43X7 F Series User Manual

(Supplementary
information)
TV Business Division
69
69
3.12 HDMI No Picture
3.12.5 TMDS Failure Analysis
Checking condition:
- TV ON & HDMI Source ON except if the flow mentioned is AC OFF.
- TV HDMI input connected to HDMI source (Player etc.)
- TV Input Selection: HDMI

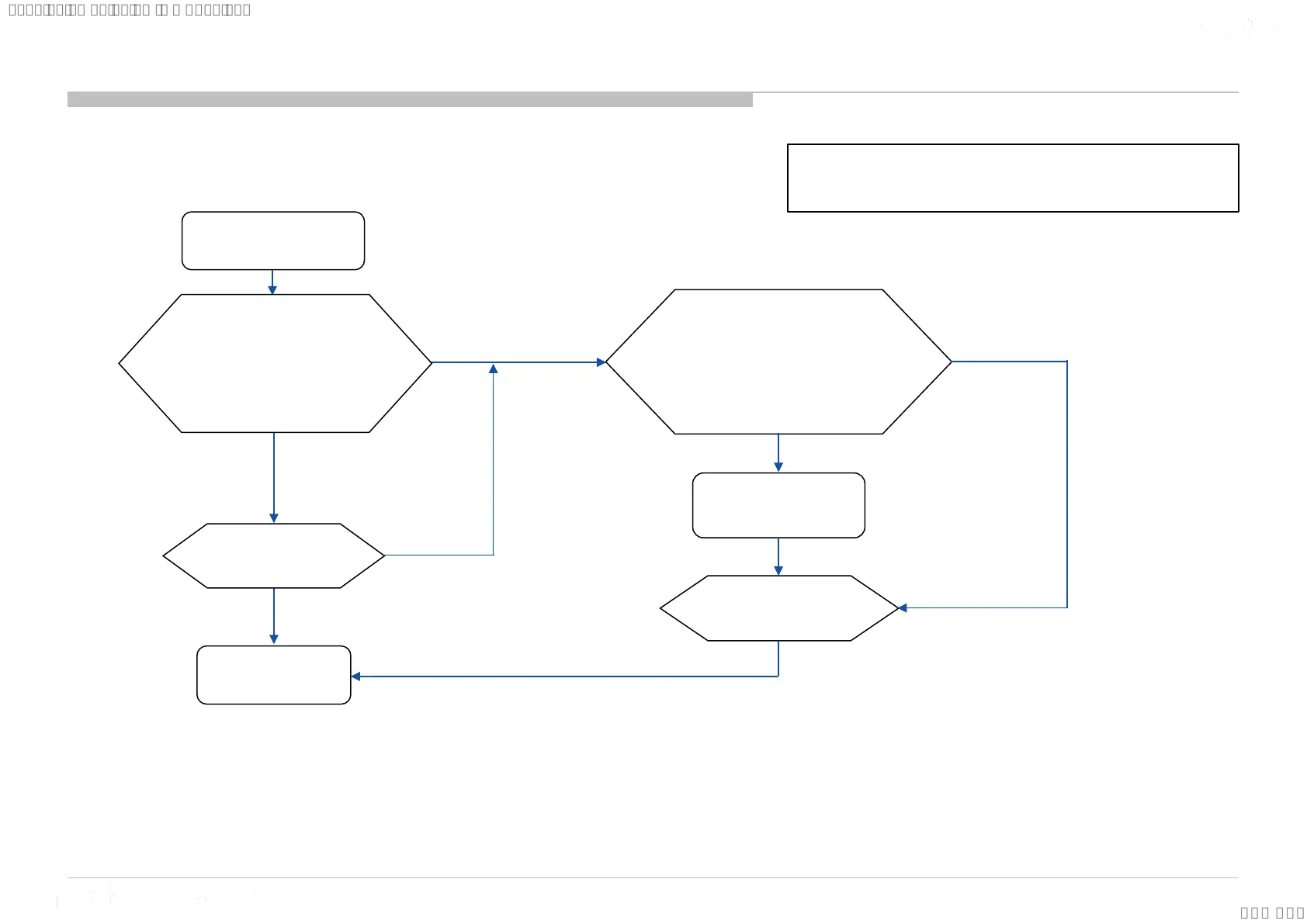

TMDS
Failure Analysis
END
Replace Broken
Resistor and Re-verify
[OK] Picture recovered
Check impedance of Resistor,
CMF (Filter)during AC OFF
HDMI1:RB4007,RB4008,L4002,L4003
HDMI2:RB4003,RB4004,L4004,L4005
HDMI3:RB4005,RB4006,L4000,L4001
Check I2C GPIO Line impedance
to Ground during AC OFF
HDMI1: CN4001 – Pin1,3,4,6,7,9,10,12
HDMI2: CN4002 – Pin1,3,4,6,7,9,10,12
HDMI3: CN4000 – Pin1,3,4,6,7,9,10,12
Replace B-Board
and Re-Verify
[NG] Impedance ≠ Open (High-Z)
[OK] Impedance = Open (High-Z)
Internal Main IC (SoC)
Broken (IC5000)
[OK] Impedance ≈ 0±5Ω
[NG] No Picture
[NG] Impedance ≠ 0Ω
SYSSET
2018/05/0404:12:02(GMT+09:00)
