Sony KD-43X7 F Series User Manual

(Supplementary
information)
TV Business Division
3.12 HDMI No Picture

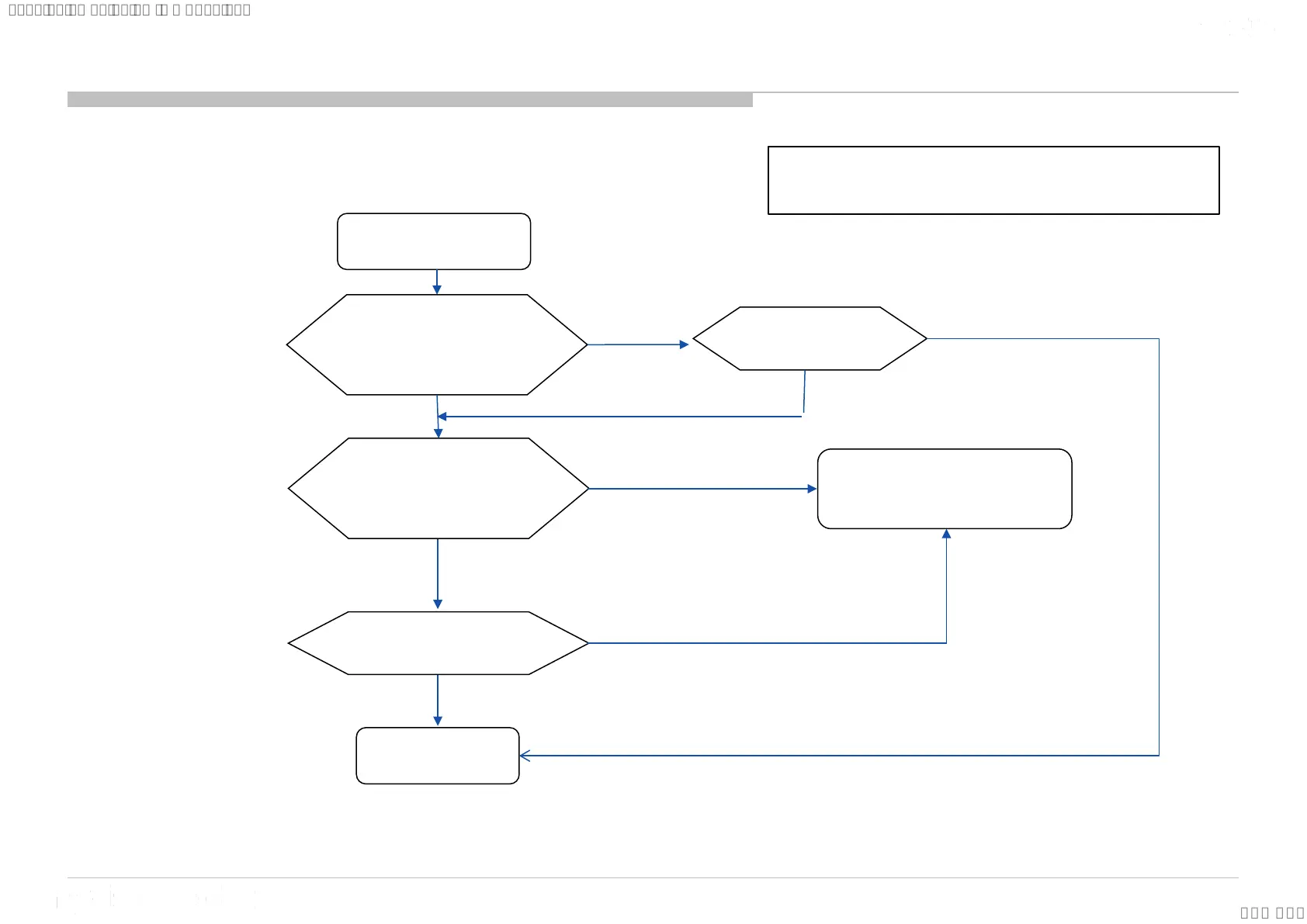

3.12.2 +5V Power Failure Analysis – HDMI2
Checking condition:
- TV ON & HDMI Source ON except if the flow mentioned is AC OFF.
- TV HDMI input connected to HDMI source (Player etc.)
- TV Input Selection: HDMI
+5V Power
Failure Analysis
Check impedance of
Varistor during AC OFF
HDMI2:
VR4011
[OK] Impedance ≈ Open (High Z)
[NG] Impedance ≠ Open (High Z)
END
Go to
“HPD Power Failure Analysis“
Page
Replace Broken Varistor
and Re-verify
[OK] Picture recovered
[NG] No picture
Check impedance of
Resistor during AC OFF
HDMI2:
R4044
[NG] Impedance ≠ 22 Ω
[OK] Impedance ≈ 22 Ω
Replace Broken Resistor
and Re-verify
[NG] No picture
[OK] Picture recovered
64
SYSSET
2018/05/0404:12:02(GMT+09:00)
