TV Business Division

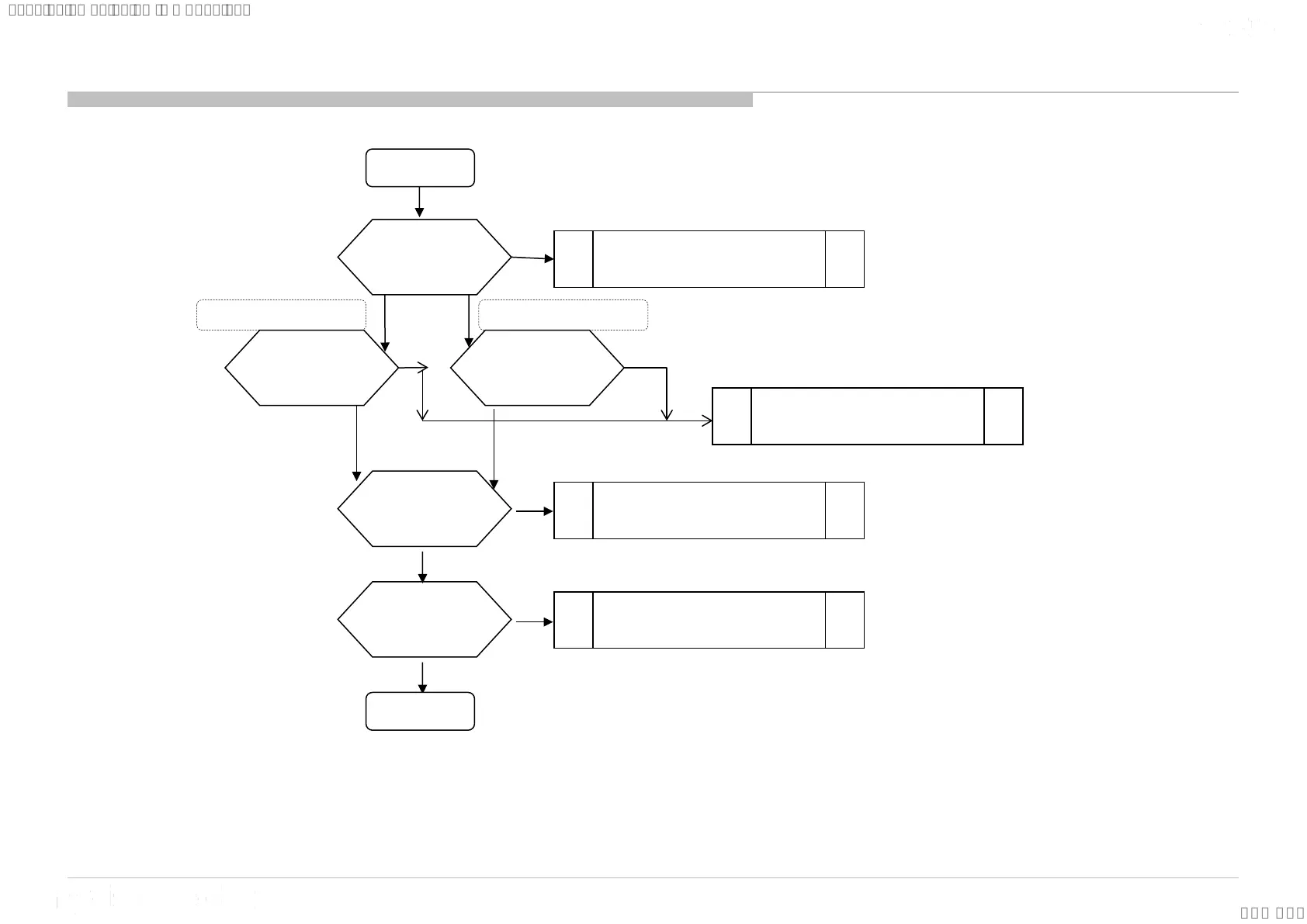

3.15 No Power DDCON/LDO

DDC: +1.0V_M3 check

Check EN signal

R6114 voltage

Is voltage >1.9V?

Check Vcc

C6102 voltage

Is voltage >5.3V?

MTK IC damage

Change IC6017

Change F6006

yes

END

START

yes

Check input

F6006 voltage

Is voltage >19.0V?

LD-Board model G-Board model

Check input

F6006 voltage

Is voltage >12.0V?

yes

Check fuse

F6006

Is fuse OK?

G-Board/LD-Board

CHL 55”/65”=G-Board model (PSU)

CHL43”/49”=LD-Board model (ADP)
