TV Business Division

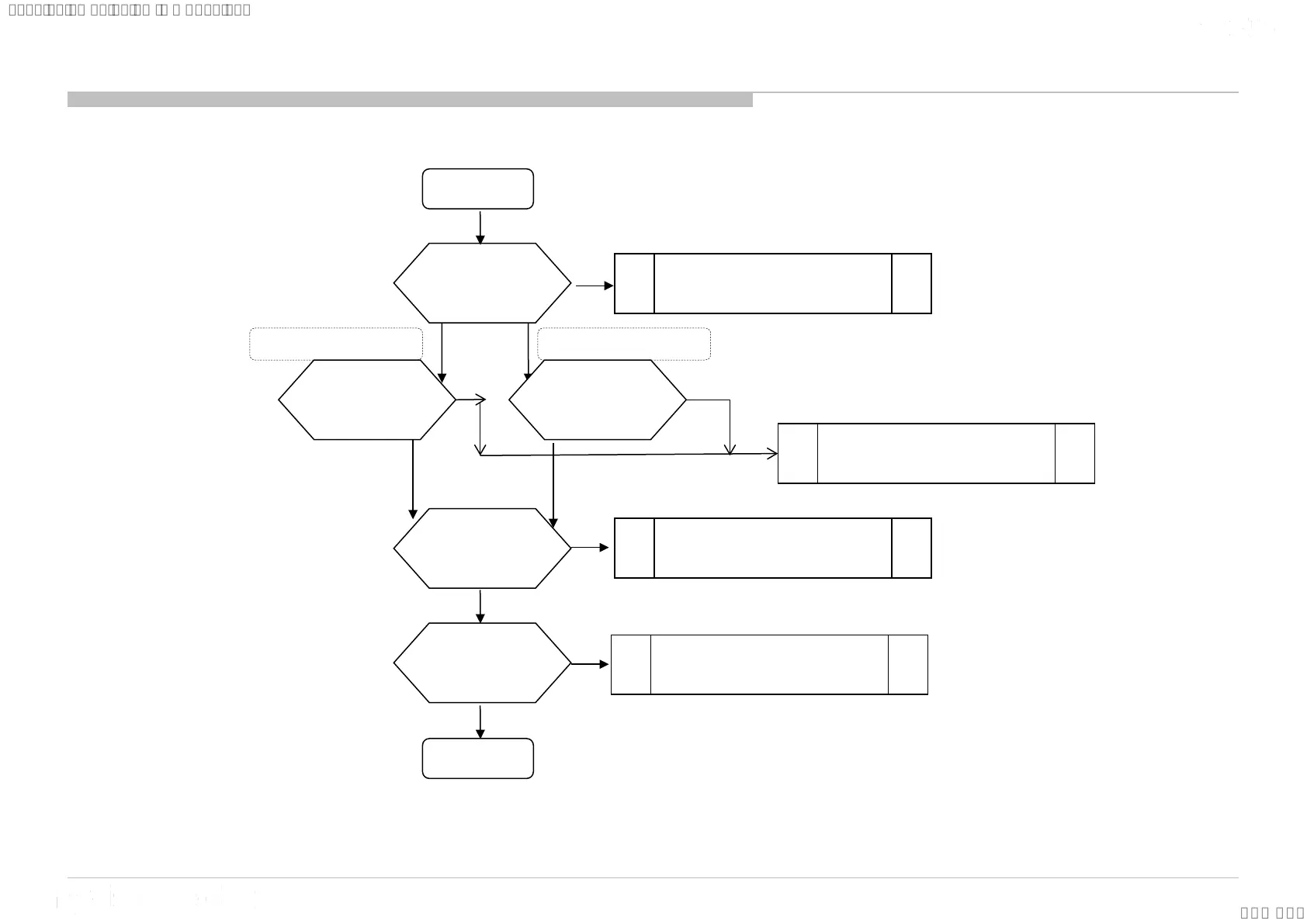

3.15 No Power DDCON/LDO

DDC: +5.0V_DDC_OUT check

START

Check EN signal

R6073 voltage

Is voltage >2.5V?

Check Vcc

C6062 voltage

Is voltage >5V?

Check fuse

F6004

Is fuse OK?

Change IC6009

Change F6004

yes

END

yes

Check input

F6004 voltage

Is voltage >19.0V?

LD-Board model G-Board model

Check input

F6004 voltage

Is voltage >12.0V?

yes

G-Board/LD-Board

CHL 55”/65”=G-Board model (PSU)

CHL 43”/49”=LD-Board model (ADP)
