3.11 CI Slot
3.11 CI Slot – Cannot Play / No picture / No Sound – Checking Point
CI Slot (B-board Checking) – Checking Resistor Part Mounting Points [3/3]
Board
Name

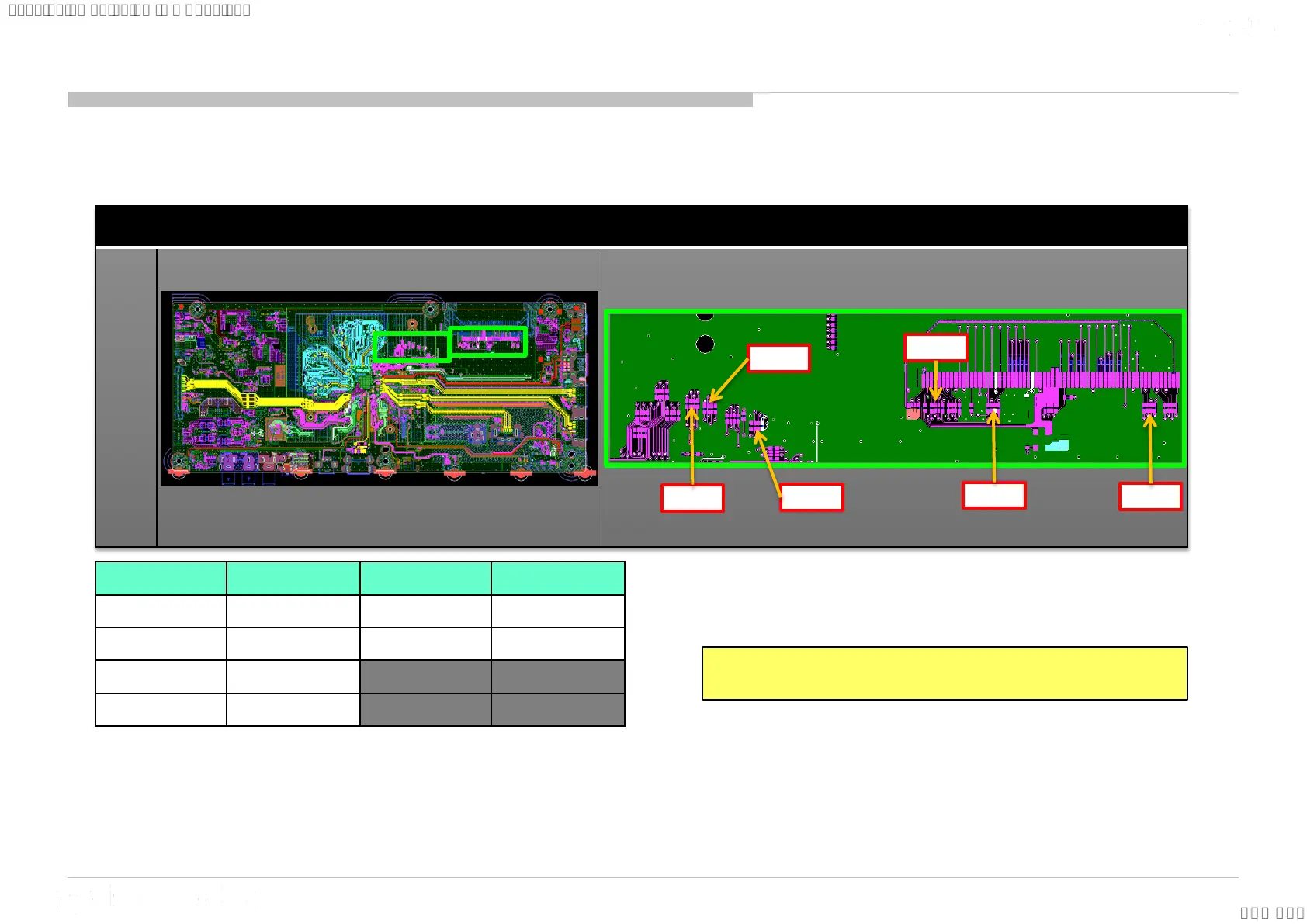

Board PWB (A side) Detail
BB9
Ref. No. Location Ref. No. Location
RB7003 1 RB7012 6
RB7004 2 RB7020 7
RB7005 3
RB7010 4
Remark:
Confirm these 6 resistors part are mount properly or not.
6
5
4
3
2
1
SYSSET
2018/05/0404:12:02(GMT+09:00)
