Sony KLV-19T400A - Lead Assy, Earth Dressing; Wire Harness Dressing

– 11 –
KLV-19T400A,T400G,T400W
RM-GA013

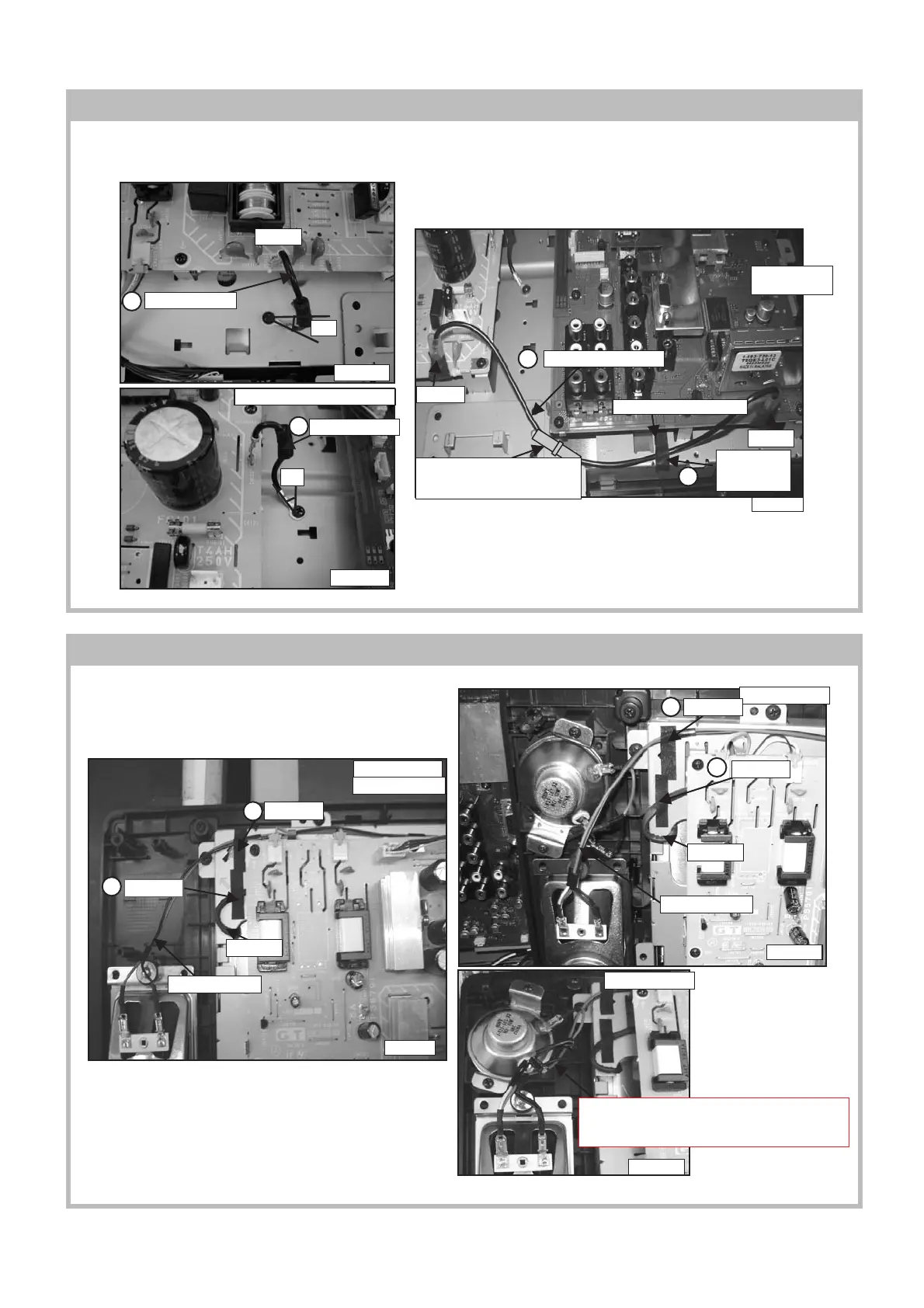

4-1-8. Wire Harness Dressing
4-1-7. Lead Assy, Earth Dressing
1) Insert both Lead Assy, Earth to GT PWB and screw them on to main bracket's screw hole as shown.
2) Insert Lead Assy, Earth from GT PWB to BT PWB as shown.
3) Attach Tape, LCD to Lead Assy, Earth.
Figure (b)
Figure (a)
45º
45º
CN6204
Lead Assy, Earth
Common for all 19T400 models
Lead Assy, Earth
Attach Tape,
LCD to Lead
Assy, Earth
Commo for all
19T400 models
Insert Lead Assy, Earth
Figure c
CN6206
Make sure UL tube is positioned
at the stand (to protect wire
from sharp edge).
CN8002
Use datum line as a guide
3
2
1
1
1) Dress SP Conn Assy 4P using Tape, LCD as shown (1X).
2) Dress Lamp wire using Tape, LCD as shown (1X).
Figure(a)
Tape, LCD
19T400A models
19T400W models
19T400G models
SP Conn Assy 4P
Figure (b)
Tape, LCD
Figure (c)
19T400G models
Tape, LCD
Lamp wire
SP Conn Assy 4P
Tape, LCD
Lamp wire
1
2
1
2
Caution: Dress wires downward towards the tweeter.
Ensure capacitor does not touch tweeter or any
conductive parts.
