Sony KLV-19T400A - Exploded Views; Rear Cabinet and Stand Assy

– 20 –
KLV-19T400A,T400G,T400W
RM-GA013
• The component parts of an assembly
are indicated by the reference numbers
in the far right column of the part list and
within the dotted lines of the diagram.
• Components not identified by a part
number or description are not stocked
because they are not required for routine
service.

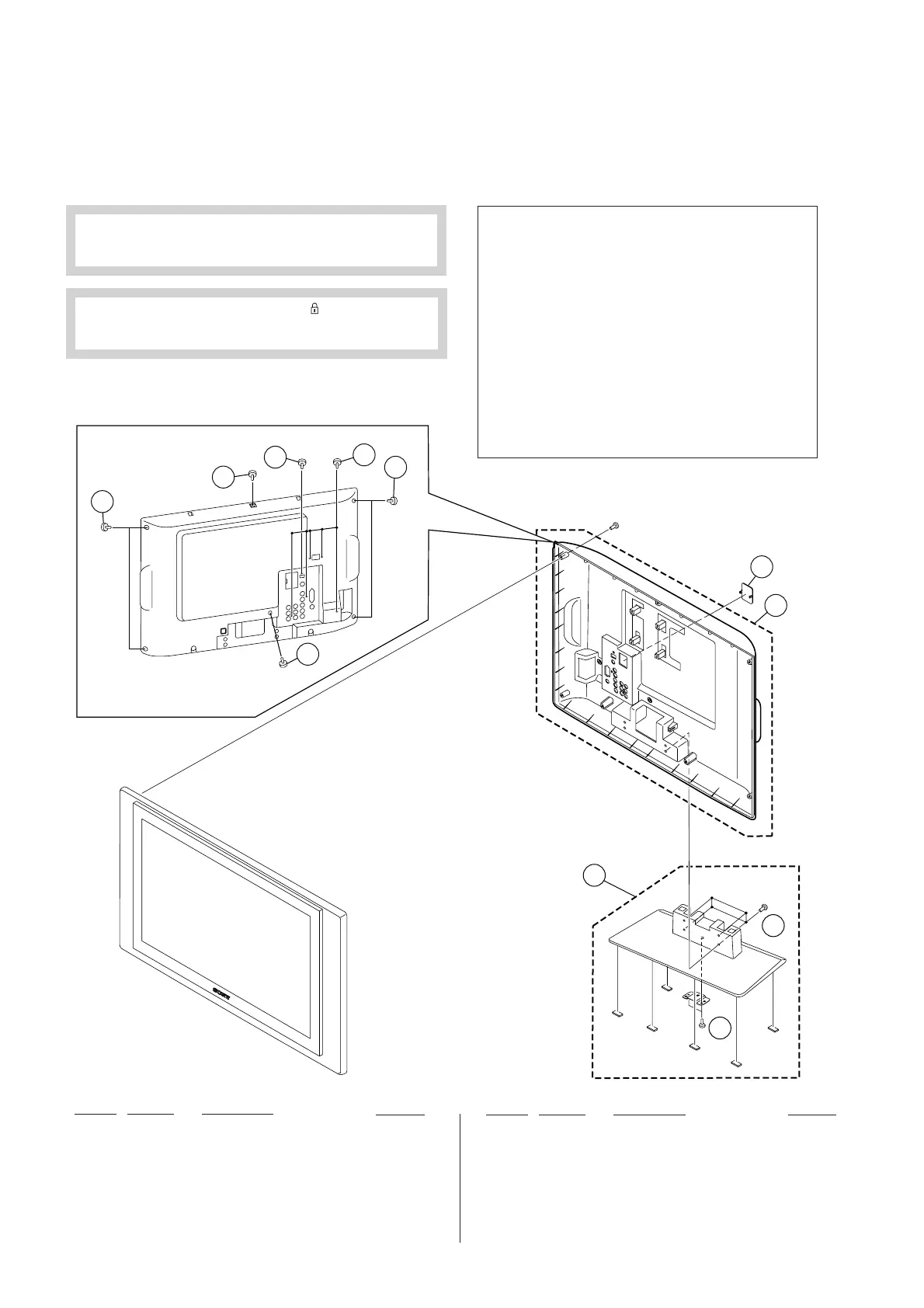

7-1 REAR CABINET AND STAND ASSY
(19T400A/T400G)
SECTION 7
EXPLODED VIEWS
NOTE: The components identified by shading and ! mark are
critical for safety. Replace only with part number specified.
• Item marked with an asterisk (*) are not
stocked since they are seldom required
for routine service. Some delay should
be anticipated when ordering these
components.
Note: The components identified by mark
contain
confidential information. Strictly follow the instructions
whenever the components are repaired and /or replaced.
a 4-046-797-11 SCREW (3X12), (+) BVTAP
b 2-580-591-01 SCREW, +PSW M3X5
c 2-580-592-01 SCREW, +PSW M3X8
d 2-580-600-01 SCREW, +PSW M4X8
e 2-580-602-01 SCREW, +PSW M4X12
f 2-580-614-01 SCREW, +K M3X8
g 2-580-626-01 SCREW, SP 4-40 UNC
h 2-580-629-01 SCREW, +BVST 3X8
i 2-580-640-01 SCREW, +BVTP2 4X16
j 2-580-644-01 SCREW, +KTP2 3X8
k 2-580-645-01 SCREW, +KTP2 3X10
l 2-674-965-31 SCREW, +PSW 3SG
m 3-398-903-01 SCREW, BVTP2 4X20 (S)
n 7-685-648-79 SCREW, +BVTP 3X12 TYPE2 IT-3
o 2-580-608-11 SCREW, +PSW M5X16
REF. NO. PART NO. DESCRIPTION REMARK
1 X-2318-604-1 ASSY COVER, REAR (19)
(19T400A,T400A/H(ME))
X-2320-071-1 ASSY COVER, REAR (19)
(19T400A/H(E, Thailand))
X-2319-749-1 ASSY COVER, REAR (19G) (19T400G)
2*3-106-086-03 COVER ECS
3 X-2318-518-1 ASSY STAND(19) (19T400A, 19T400G)
X-2320-052-1 ASSY STAND(19) (19T400A/H)
REF. NO. PART NO. DESCRIPTION REMARK
2
1
g
o
c
i
i
n
i
i
3
