Sony KLV-19T400A - Wire Harness Dressing; Connector Assy 4 P, 11 P, SP Conn Assy 4 P and 5 P* Dressing

– 12 –
KLV-19T400A,T400G,T400W
RM-GA013

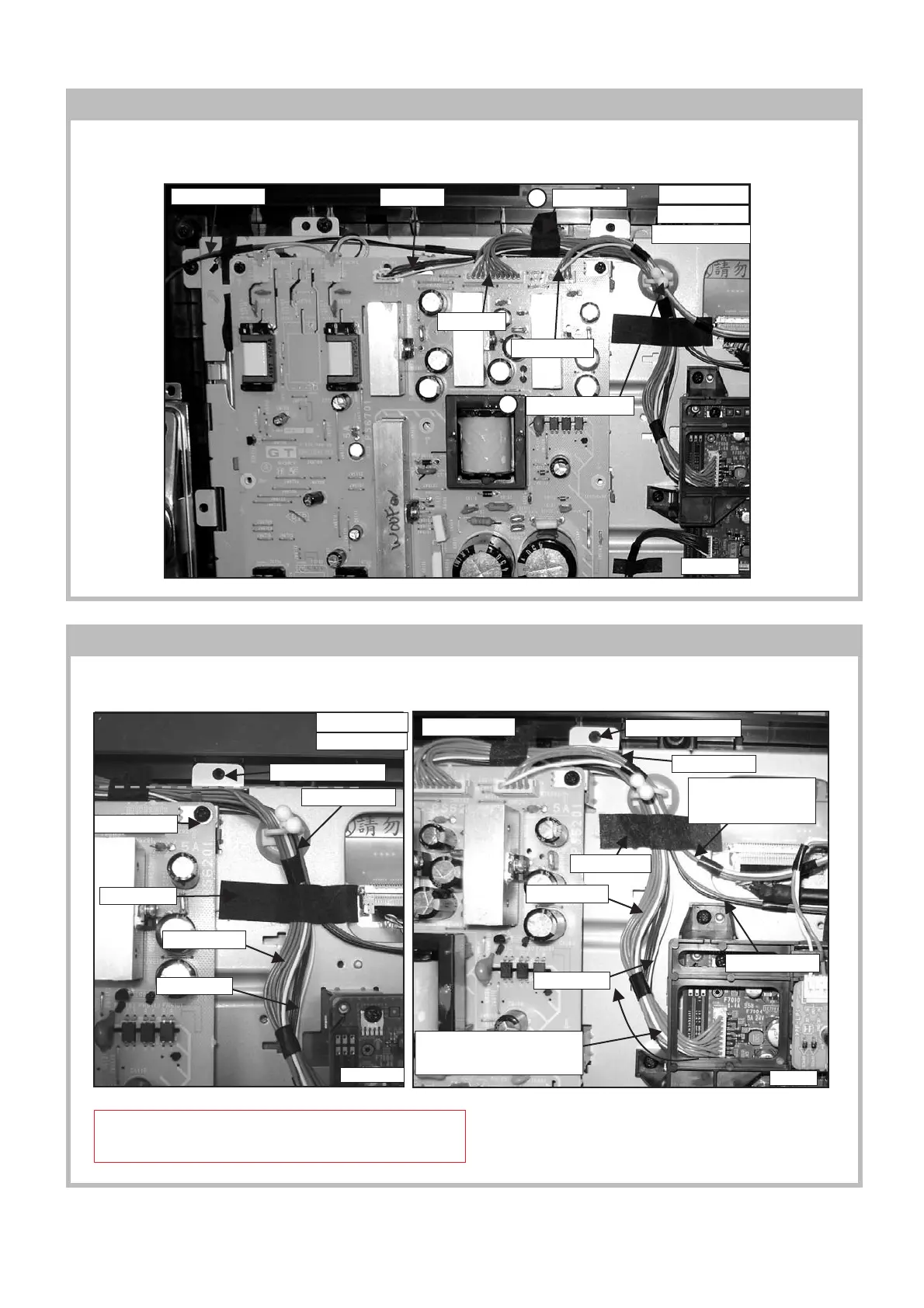

4-1-8. Wire Harness Dressing
4-1-9. Connector Assy 4P, 11P, SP Conn Assy 4P and 5P* Dressing
3) Dress SP Conn Assy 4P; Conn Assy 11P and Conn Assy 4P using Sheet Core, C as shown.
4) Insert Conn Assy 4P; Conn Assy 11P; SP Conn Assy 4P and
Conn Assy 5P* (for 19T400W model only) into Purse Lock (S) Ø 12.
Sheet Core,C
Purse Lock (S) Ø 12
Figure 9
19T400A models
*19T400W models
19T400G models
SP Conn Assy 4P
Conn Assy
Conn Assy 5P*
Conn Assy
1) Dress Conn Assy 4P; Conn Assy 11P; SP Conn Assy 4P and Conn Assy 5P* (for 19T400W) using Sheet Core, C as shown.
2) Use pin, wire A6204 to wire dress all wires keep it away from rear cover screw hole.
*For 19T400W model onl
y
Rear cover screw hole
Pin, wire A6204
Sheet Core, C
Conn Assy 11P
Conn Assy 4P
19T400A models
19T400G models
19T400W models
Figure b
Caution: Dress all wires below panel's height limit.
Ensure that wires do not block screw hole
(prevent them from being sandwiched when inserting screw to rear cover)
Conn Assy 4P
Figure a
SP Conn Assy 4P
Bend Conn Assy 5P*
towards the right before
dressing
Pin, wire A6204
Rear cover screw hole
Sheet Core, C
Conn Assy 11P
Ensure both Conn Assy 11P
and Conn Assy 4P are dressed
towards the left (below J-bracket)
SP Conn Assy 4P
3
4
