Sony KLV-19T400A - HT Board Speaker Removal; LCD Panel and Bezel Assy Removal

– 8 –
KLV-19T400A,T400G,T400W
RM-GA013

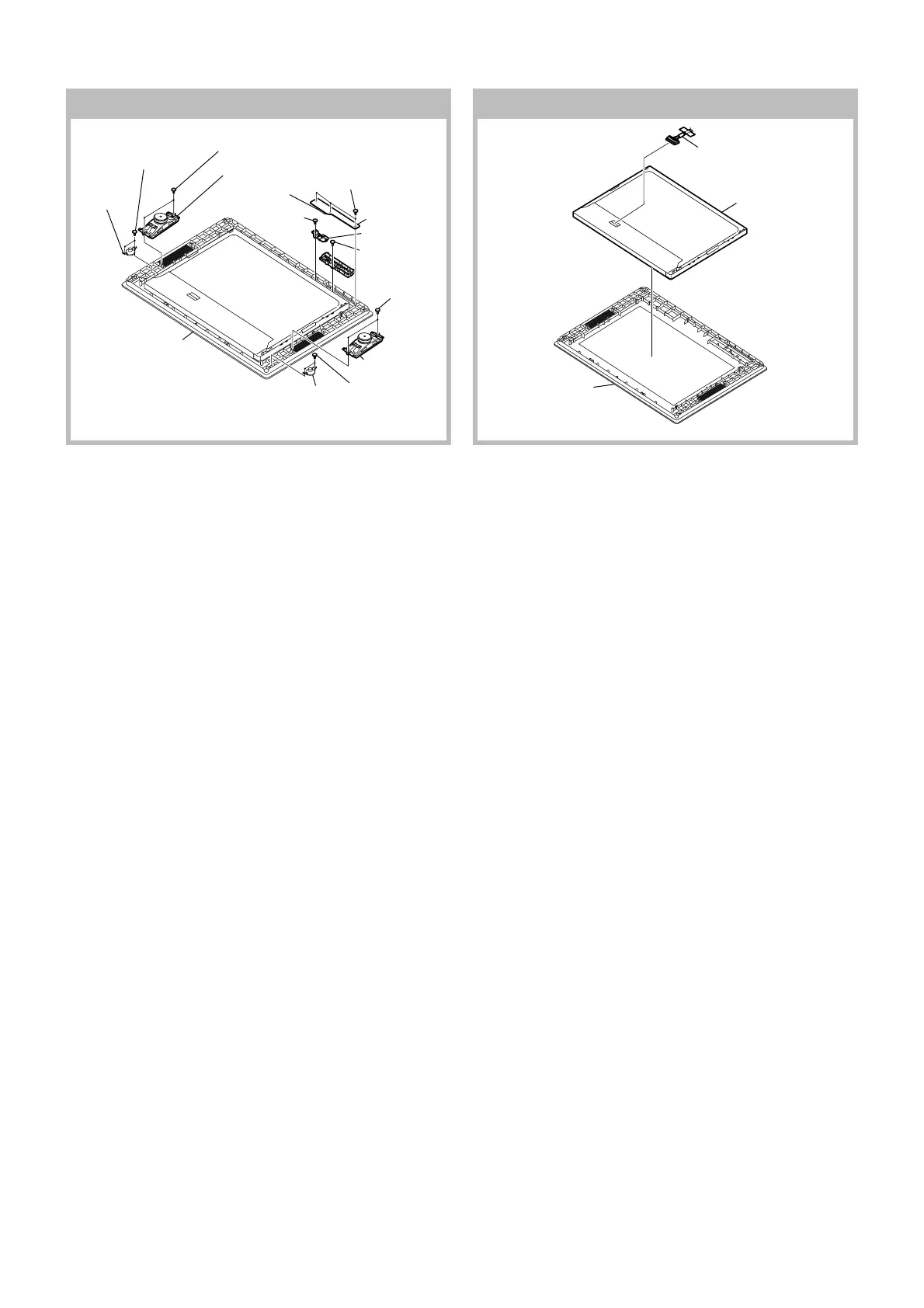

3-7. HT Board and Speaker Removal 3-8. LCD Panel and Bezel Assy Removal
1 Harness with connector
2 LCD panel
3 Bezel assy
(19T400A)
Cabinet Assy
(19T400G/T400W)
qf One screw
(+BVTP 3 X 12)
7 Two screws
(+BVTAP 3 X 12)
5 Two screws
(+BVTP 3 X 12)
qd Guide Light
qs One screw
(BVTP2 4 X 16)
q; One connector
3 Two screws
(+BVTAP 3 X 12)
qg Bezel assy
(19T400A)
Cabinet Assy
(19T400G/T400W)
4 Loudspeaker
(5.5 X 12cm)
2 Loudspeaker
(5cm)
(19T400G)
8 Loudspeaker
(5.5 X 12cm)
6 Loudspeaker
(5cm)
(19T400G)
qa HT board
9 Three screws
(+BVTP 3 X 12)
1 Two screws
(+BVTP 3 X 12)
