Sony KLV-19T400A - GT Board Removal; Main Bracket Removal; BT, KT and J Boards Removal; Woofer and Stand Assy Removel

– 7 –
KLV-19T400A,T400G,T400W
RM-GA013
SECTION 3
DISASSEMBLY

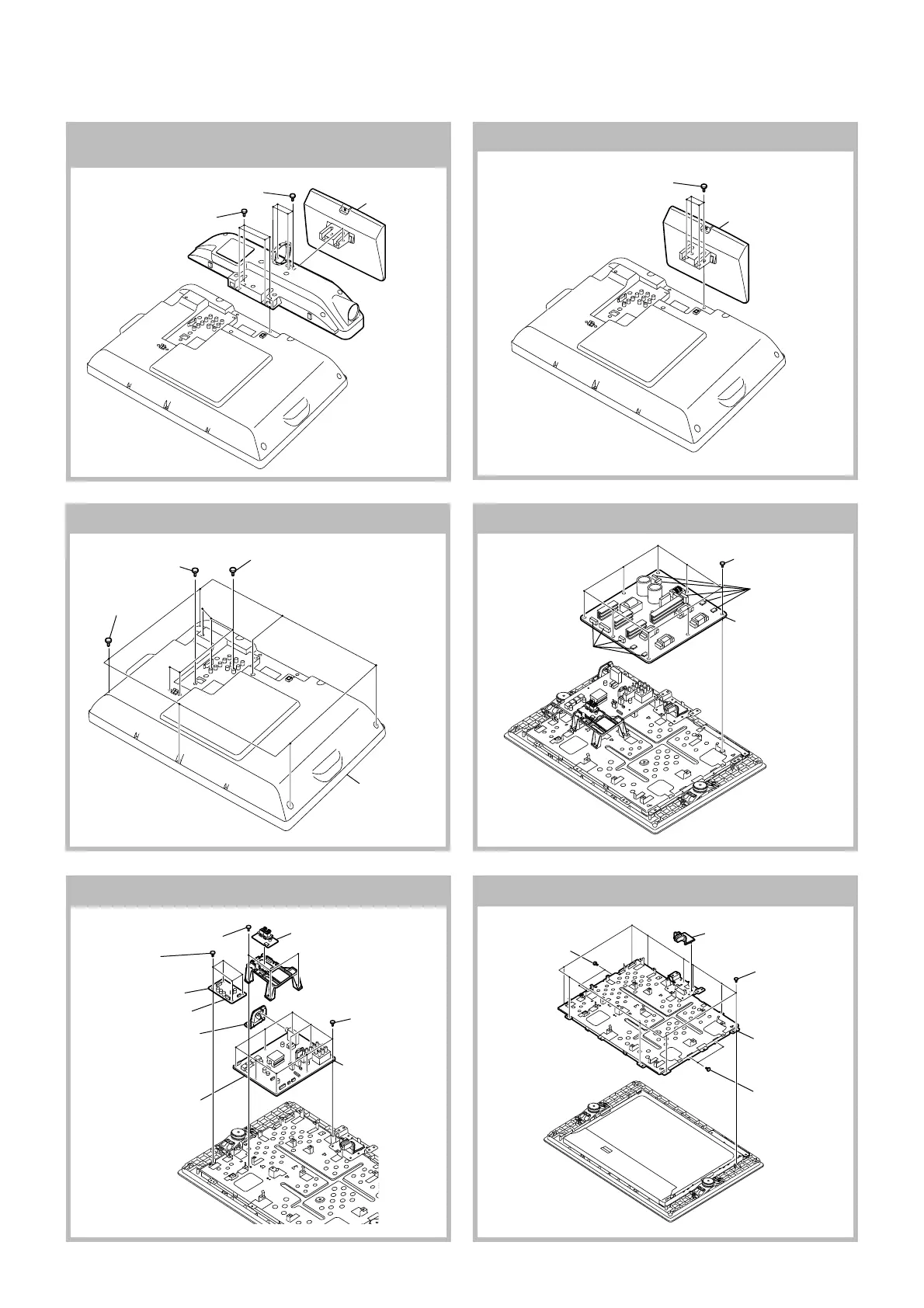

3-2. Stand Assy Removel (19T400A/T400G)
3-3. Rear Cover Removal 3-4. GT Board Removal
3-6. Main Bracket Removal
3-5. BT, KT and J Boards Removal
4 Main Bracket
AC Bracket
1 Ten screws
(BVTP2 4 X 16)
3 Two screws
(+PSW M3 X 5)
2 Two screws
(+PSW M3 X 5)
9 BT board
2 J board
(19T400W)
5 KT board
(19T400W)
4 Three connectors
6 Side Jack Bracket Assy
8 Five connectors
7 Nine screws
(+BVST 3 X 8)
1 Three screws
(+BVST 3 X 8)
3 Four screws
(+BVST 3 X 8)
4 GT board
2 Five connectors
3 Five connectors
1 Eight screws
(+BVST 3 X 8)
4 Lift to remove
Rear Cover
1 Six screws
(BVTP2 4 X 16)
2 One screw
(+PSW M3 X 8)
3 Five screws (+BVTP 3 X 12)
(19T400W)
Three screws (+BVTP 3 X 12)
(19T400A/T400G)
3 Stand assy
2 Four screws
(BVTP2 4 X 16)
3 Stand assy
1 Four screws
(+PSW M5 X 16)
2 Four screws
(BVTP2 4 X 16)
3-1. 3D Woofer and Stand Assy Removal
(19T400W)
