Sony RMT-D128A - Mechanism Deck Assembly

8-5

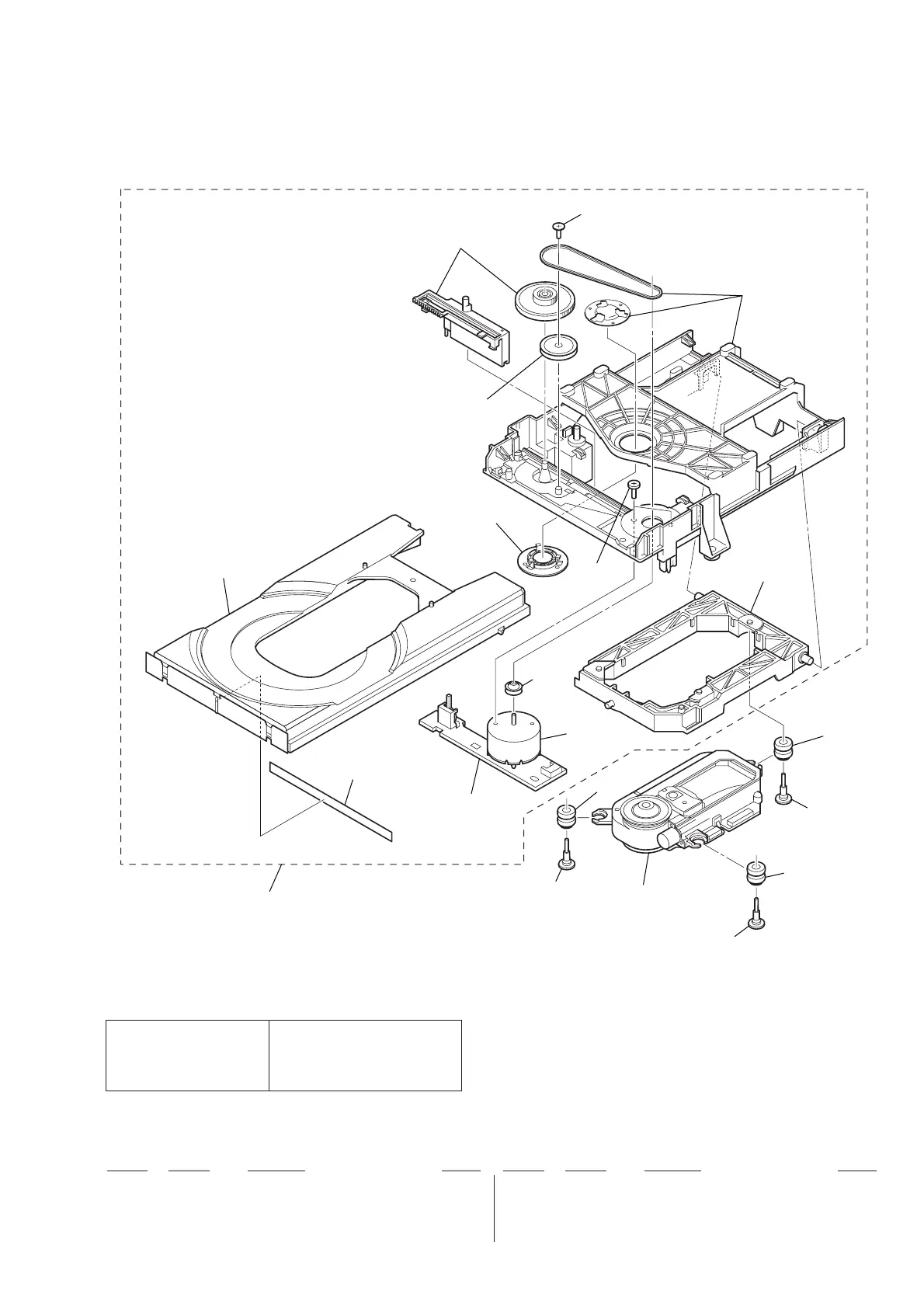

8-1-3. MECHANISM DECK ASSEMBLY
101
102
102
102
103
103
104
103
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
102 3-053-847-11 INSULATOR
103 3-067-344-01 INSULATOR SCREW
0 104 A-4900-634-A OPTICAL PICK-UP KHM-240 AAA/J1NP
101 A-6062-514-A LOADING ASSY (M) (US (DPX1410BM),
CND (DPX1410BM), AEP, UK, E, MX, AR, BR)
101 A-6062-517-A LOADING ASSY (J)
(US (DPX1410BJ), CND (DPX1410BJ))
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
