8-1-1. CASE ASSEMBLY
DVP-NS400D
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of the electrical parts list.
• Abbreviation
AR : Argentina
BR : Brazilian
CND : Canadian
MX : Mexican
SECTION 8
REPAIR PARTS LIST

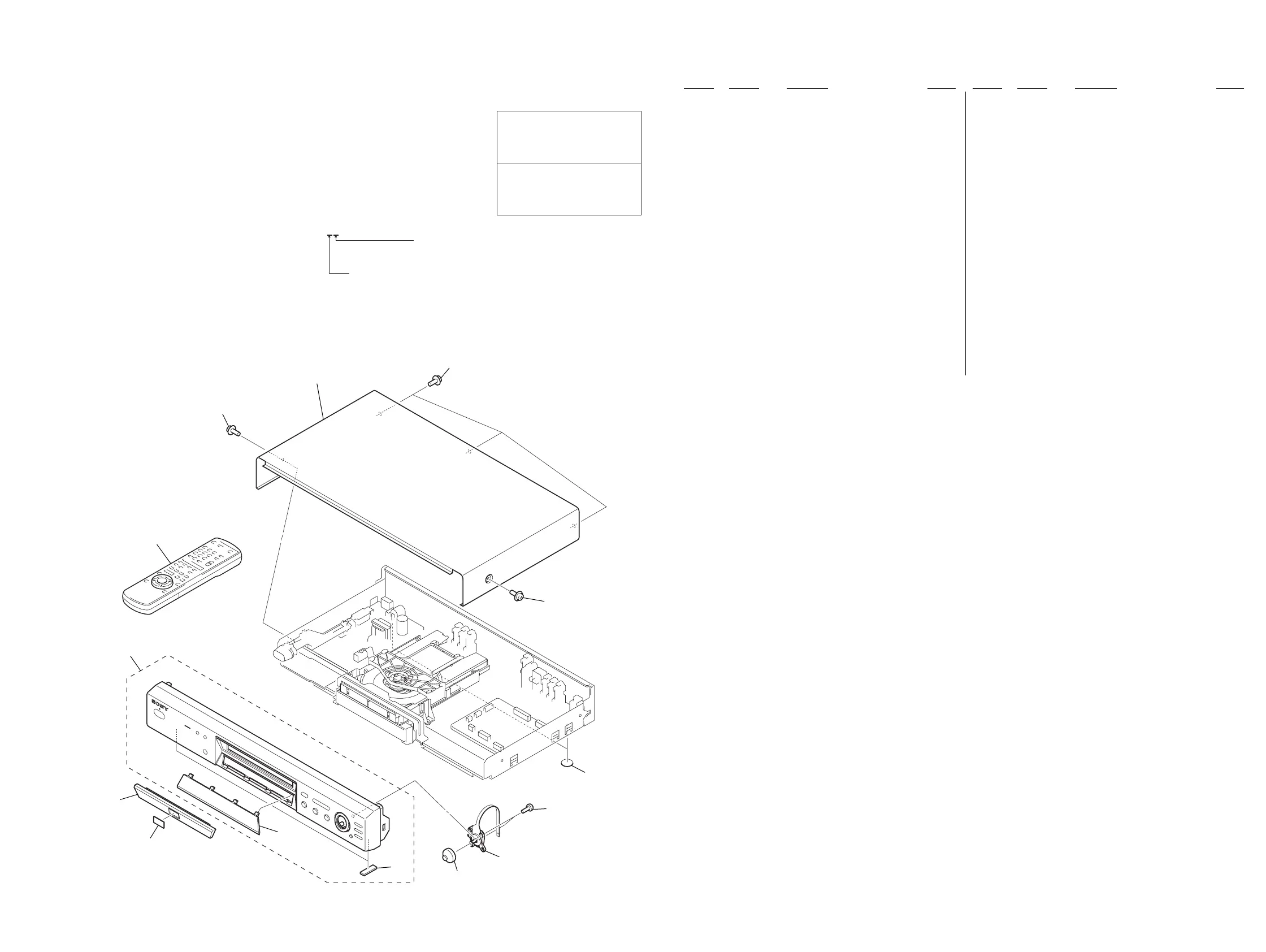

8-1. EXPLODED VIEWS
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
1
3
4
10
9
8
7
6
6
12
6
5
11
2
6 3-710-901-11 SCREW, TAPPING (US, CND,
AEP (DPX1411BM), AEP (DPX1412BM),
UK (DPX1411BM))
6 3-710-901-61 SCREW, TAPPING
(AEP (DPX1411HM), AEP (DPX1412HM),
UK (DPX1411HM), E, MX, AR, BR)
7 3-068-890-01 CUSHION, REAR LEG
8 3-970-608-51 SUMITITE (B3), +BV
9 1-786-131-11 SWITCH, TACTILE
10 3-067-238-11 CURSOR STICK (US, CND, AEP (DPX1411BM),
AEP (DPX1412BM), UK (DPX1411BM))
10 3-067-238-21 CURSOR STICK
(AEP (DPX1411HM), AEP (DPX1412HM),
UK (DPX1411HM), E, MX, AR, BR)
11 1-476-604-11 REMOTE COMMANDER (RMT-D128A)
(US, CND, E, MX, AR, BR)
11 1-476-605-11 REMOTE COMMANDER (RMT-D128P)
(AEP, UK)
12 3-068-047-01 CASE (EXCEPT AEP (DPX1411HM))
12 3-068-047-11 CASE (AEP (DPX1411HM),
AEP (DPX1412HM), UK (DPX1411HM), E, BR)
1 3-067-237-01 EMBLEM (V), DVD (US, CND,
AEP (DPX1411BM), AEP (DPX1412BM),
UK (DPX1411BM))
1 3-067-237-11 EMBLEM (V), DVD (AEP (DPX1411HM),
AEP (DPX1412HM), UK (DPX1411HM),
E, MX, AR, BR)
2 3-067-235-01 COVER (H), TRAY
(US (DPX1410BJ), CND (DPX1410BJ))
2 3-067-235-11 COVER (H), TRAY (US (DPX1410BM),
CND (DPX1410BM), AEP (DPX1411BM),
AEP (DPX1412BM), UK (DPX1411BM))
2 3-067-236-01 COVER (P), TRAY
(AEP (DPX1411HM), AEP (DPX1412HM),
UK (DPX1411HM), E, MX, AR, BR)
3 3-067-225-01 WINDOW
4 3-059-349-11 CUSHION, FOOT
5 A-6062-600-A FRONT PANEL ASSY (BR)
5 X-3951-513-1 FRONT PANEL ASSY (US)
5 X-3951-514-1 FRONT PANEL ASSY (AEP (DPX1411BM),
AEP (DPX1412BM), UK (DPX1411BM))
5 X-3951-517-1 FRONT PANEL ASSY (AEP (DPX1411HM),
AEP (DPX1412HM), UK (DPX1411HM))
5 X-3951-540-1 FRONT PANEL ASSY (E, MX, AR)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
• Description about model name
DPX14xxBJ
Name of production country
J : Japan
M : Malaysia
Color of set
B : Black
H : Titanium gray
