Sony RMT-D128A - Board Removal; Tray Removal; Optical Pick-Up Removal

2-3

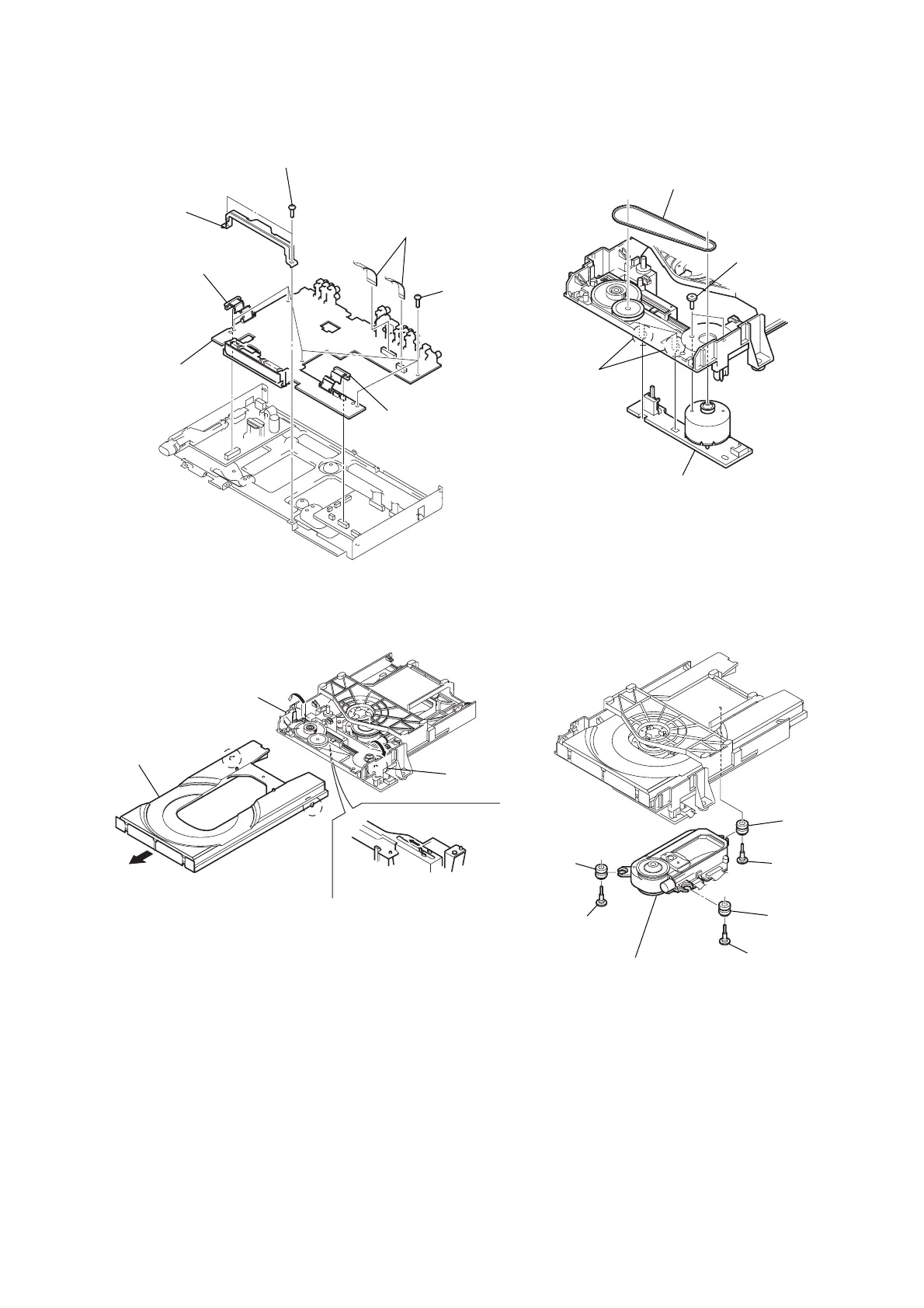

2-9. AI-23 BOARD REMOVAL
2-10. TRAY REMOVAL
2-11. LOADING MOTOR (M001),
MS-81 BOARD REMOVAL
2-12. OPTICAL PICK-UP REMOVAL
1 Two connectors
(FMA-023: CN203/
FMA-024: CN301)
6 AI-23 board
5 Five screws (B3)
3 Two screws (B3)
4 Multi pillar
2 Connector (CN101)
2 Connector (CN201)
1 Move the lever of chuck cam
in the direction of arrow A.
3 Claw
4 Tray
3 Claw
A
2
4 Loading motor (M001),
MS-81 board
3 Two claws
1 BELT
2 Two screws (P2.6 x 4)
2 Insulator
2 Insulator
2 Insulator
1 Insulator screw
1 Insulator screw
3 Optical pick-up
1 Insulator screw
