Sony RMT-D128A - Chassis Assembly

8-3 8-4

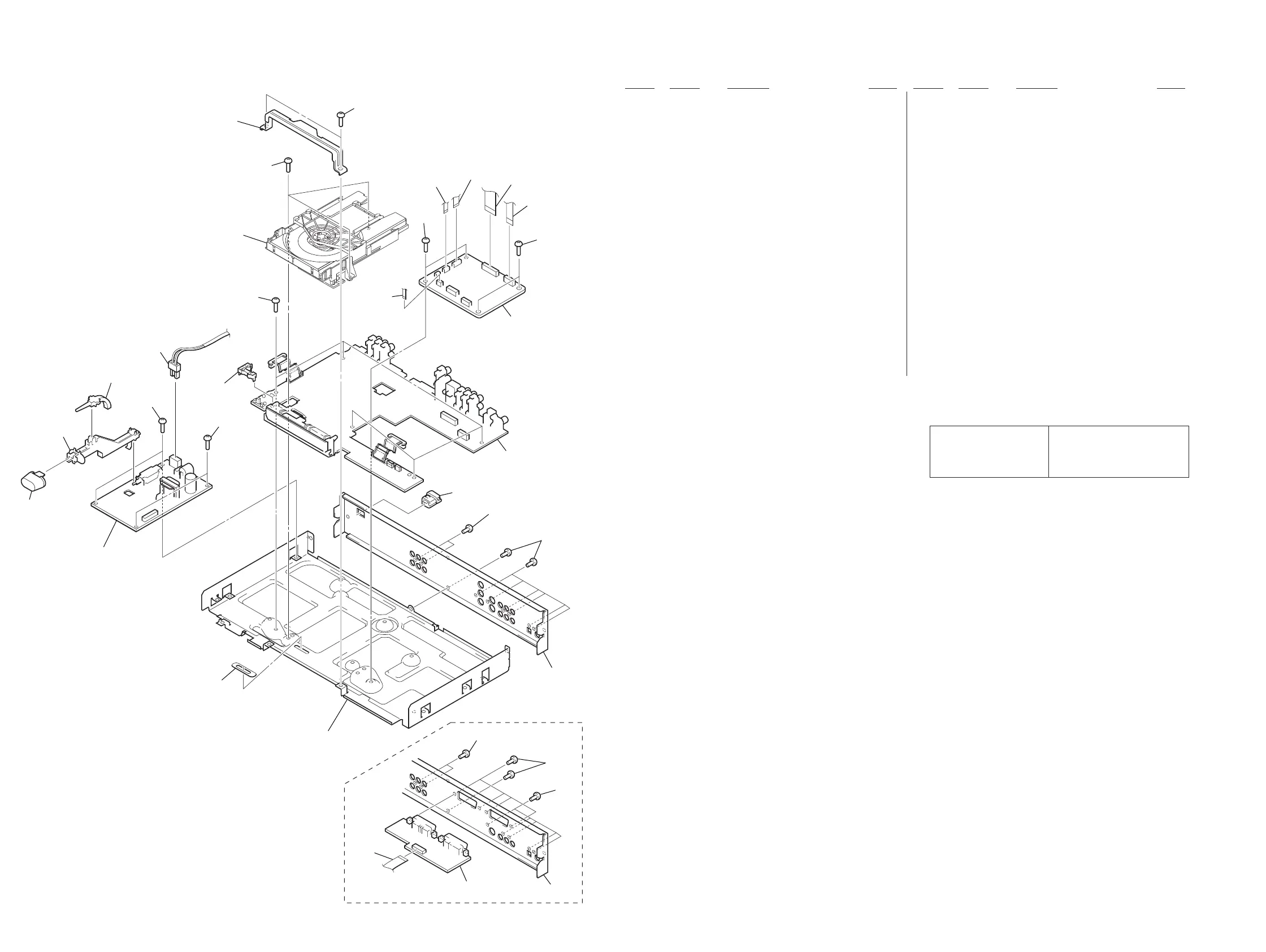

8-1-2. CHASSIS ASSEMBLY
51
52
54
53
57
55
55
65
64
63
62
61
55
60
59
67
67
67
71
70
72
67
66
55
55
56
69
57
Mechanism deck
not supplied
not supplied
not supplied
not supplied
67
AEP, UK
* 51 1-468-583-11 POWER BLOCK (HS13S0U) (US, CND, MX)
* 51 1-468-584-11 POWER BLOCK (TOP-244U) (US, CND)
* 51 1-468-585-11 POWER BLOCK (HS13S0E) (AEP, UK, AR)
* 51 1-468-586-11 POWER BLOCK (HS13S0F) (E, BR)
52 3-067-232-11 BUTTON (POWER) (US, CND,
AEP (DPX1411BM), AEP (DPX1412BM),
UK (DPX1411BM))
52 3-067-232-21 BUTTON (POWER) (AEP (DPX1411HM),
AEP (DPX1412HM), UK (DPX1411HM),
E, MX, AR, BR)
53 3-059-321-11 INDICATOR (P)
54 3-067-233-11 JOINT (POWER)
55 3-970-608-11 SUMITITE (B3), +BV
0 56 1-757-140-11 CORD, POWER (AEP, UK, E, BR)
0 56 1-757-571-11 CORD, POWER (US, CND, MX)
0 56 1-757-901-11 CORD, POWER (AR)
57 3-050-569-01 SUMITITE (B3), +WHD
* 59 A-6065-642-A AI-23 BOARD, COMPLETE
(US (DPX1410BJ), CND (DPX1410BJ))
* 59 A-6065-664-A AI-23 BOARD, COMPLETE (US (DPX1410BM),
CND (DPX1410BM), E, MX, AR)
* 59 A-6065-668-A AI-23 BOARD, COMPLETE (AEP, UK)
* 59 A-6065-707-A AI-23 BOARD, COMPLETE (BR)
* 60 A-6065-643-A MB-98 BOARD, COMPLETE
(US (DPX1410BJ), CND (DPX1410BJ))
* 60 A-6065-665-A MB-98 BOARD, COMPLETE
(US (DPX1410BM), CND (DPX1410BM))
* 60 A-6065-667-A MB-98 BOARD, COMPLETE (E, MX, AR, BR)
* 60 A-6065-669-A MB-98 BOARD, COMPLETE
(AEP (DPX1411BM), AEP (DPX1411HM), UK)
* 60 A-6065-671-A MB-98 BOARD, COMPLETE
(AEP (DPX1412BM), AEP (DPX1412HM))
61 1-757-696-11 CABLE, FLEXIBLE FLAT (FMA-024)
62 1-757-695-11 CABLE, FLEXIBLE FLAT (FMA-023)
63 1-757-693-11 CABLE, FLEXIBLE FLAT (FMO-001)
64 1-757-694-11 CABLE, FLEXIBLE FLAT (FMO-002)
65 1-757-697-11 CABLE, FLEXIBLE FLAT (FMM-035)
66 4-966-267-12 BUSHING (FBS001), CORD
67 3-970-608-51 SUMITITE (B3), +BV
69 3-067-248-01 LED HOLDER
70 3-069-090-01 COVER, EJECT
* 71 A-6065-670-A ER-15 BOARD, COMPLETE COMPL (AEP, UK)
72 1-757-699-11 CABLE, FLEXIBLE FLAT (FAE-005) (AEP, UK)
