DVP-NS400D
4-7 4-8
SIGNAL PROCESS, SERVO
MB-98
MB-98 (SIGNAL PROCESS, SERVO) PRINTED WIRING BOARD
– Ref. No.: MB-98 board; 2,000 series –
There are a few cases that the part isn't mounted in this model is printed on this diagram.
ER-15 (AEP, UK)
(EURO AV)
AI-23
(AUDIO/VIDEO OUT,
INTERFACE CONTROL)
MS-81
(LOADING)
Power Block (TOP-244U)
(US, Canadian)
Power Block (HS13S0U)
(US, Canadian, Mexican)
Power Block (HS13S0E)
(AEP, UK, Argentina)
Power Block (HS13S0F)
(E, Brazilian)
(SWITCHING REGULATOR)
MB-98
(SIGNAL PROCESS, SERVO)

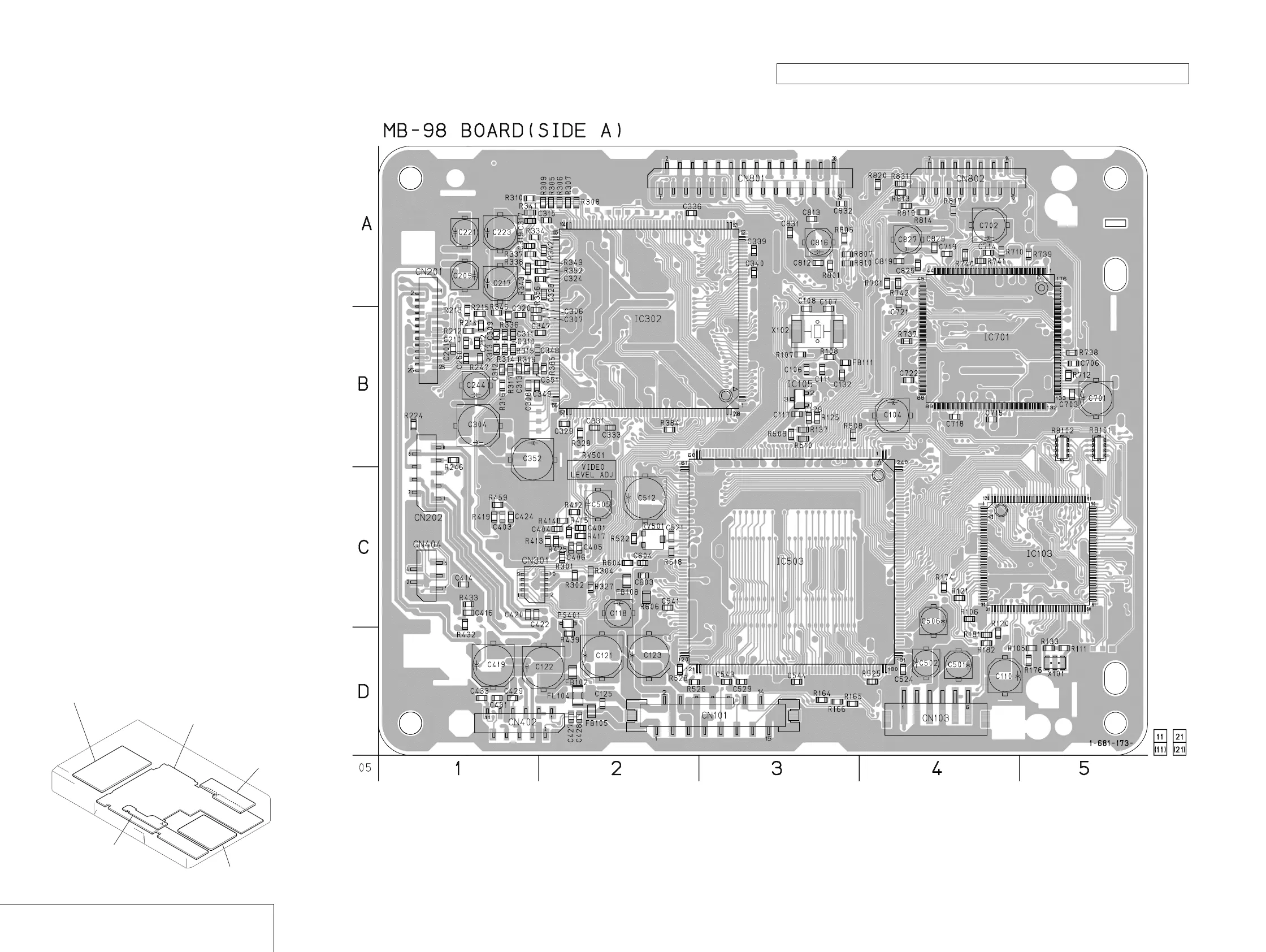

MB-98 BOARD (SIDE A)
CN101 D-3
CN103 D-4
CN201 A-1
CN202 C-1
CN402 D-1
CN801 A-3
CN802 A-4
IC103 C-5
IC302 B-2
IC503 C-3
IC701 B-4
