Sony SA-NT5 - Top Cabinet and Front Panel Components

HT-NT5
10
Note: Follow the disassembly procedure in the numerical order given.

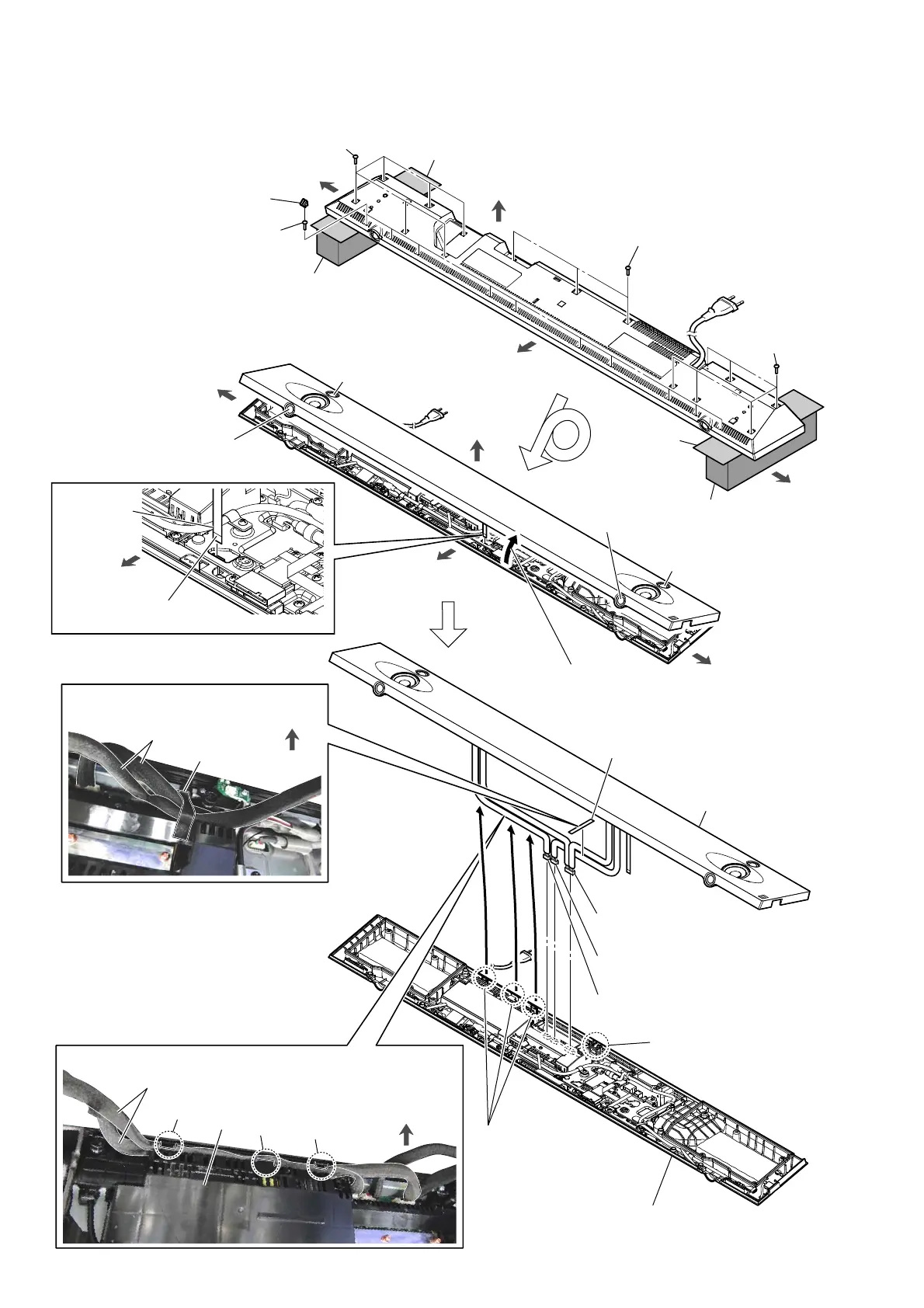

2-2. TOP CABINET BLOCK
front side
bottom side
front side
top side
:LUHVHWWLQJ
:LUHVHWWLQJ
left side
right side
left side
right side
5 saranet cushion
insulator
(top)
stand
slot
slot
slot
bottom cabinet block
rear side
The opposite side is
the terminal side.
0 top cabinet block
6 Draw the connection
cable with speaker
out of three slots.
2 three screws
(BVTP3 u 10)
1 ten caps (bottom)
2 ten screws
(BVTP3 u 10)
2 six screws
(BVTP3 u 10)
2 six screws
(BVTP3 u 10)
4 FFC 18P
(CN5003)
3 Open the
top cabinet block
in the direction of the arrow.
front side
REPEATER board
Note 2:
Be careful not to damage
the REPEATER board.
saranet cushion
connection cable
with speaker
rear side
stand
Note 1:
The center area of the tweeter on the top side protrudes out
more than the surface of the top cabinet block.
When working with the top side facing down, place stands
so that the center area of the top side tweeter is not crushed.
(Lay a soft piece of cloth between the unit and stands to
avoid damaging the top cabinet assy)
front
tweeter
top tweeter
top tweeter
front
tweeter
9 connection cable with speaker
connector (CN6004) (woofer: L-ch)
8 connection cable with speaker
connector (CN6005) (woofer: R-ch)
7 connection cable with speaker
connector (CN6009) (tweeter)
soft cloth, etc.
soft cloth, etc.
connection cable with speaker
