Sony SA-NT5 - Main Board Section Exploded View; Main Board Component Identification

68
HT-NT5
201 4-591-520-01 SHEET, RADIATION (See Note 1)
202 4-562-041-01 SHEET, RADIATION (See Note 1)
203 4-562-041-21 SHEET, RADIATION (See Note 1)
204 A-2089-312-A AMP BOARD, COMPLETE
205 4-974-510-11 SCREW (+BV 3X8 CU)
206 3-905-609-13 SCREW (TRANSISTOR)
207 4-562-041-51 SHEET, RADIATION (See Note 1)
208 A-2086-404-A POWER BOARD, COMPLETE (US, CND, TW)
208 A-2086-406-A POWER BOARD, COMPLETE
(AEP, RU, UK, AUS, CH, SP, AR)
208 A-2122-293-A POWER BOARD, COMPLETE (EA)
208 A-2123-170-A POWER BOARD, COMPLETE (BR, LA)
209 4-589-900-41 SHEET, RADIO WAVE ABSORPTION
210 4-586-625-01 GASKET (SL)
211 4-586-625-11 GASKET (SL)
9 212 A-2122-677-A MB-1509 BOARD, COMPLETE (SV) (US, CND)
(See Note 2)
9 212 A-2122-679-A MB-1509 BOARD, COMPLETE (SV) (AEP)
(See Note 2)
9 212 A-2122-680-A MB-1509 BOARD, COMPLETE (SV) (UK)
(See Note 2)

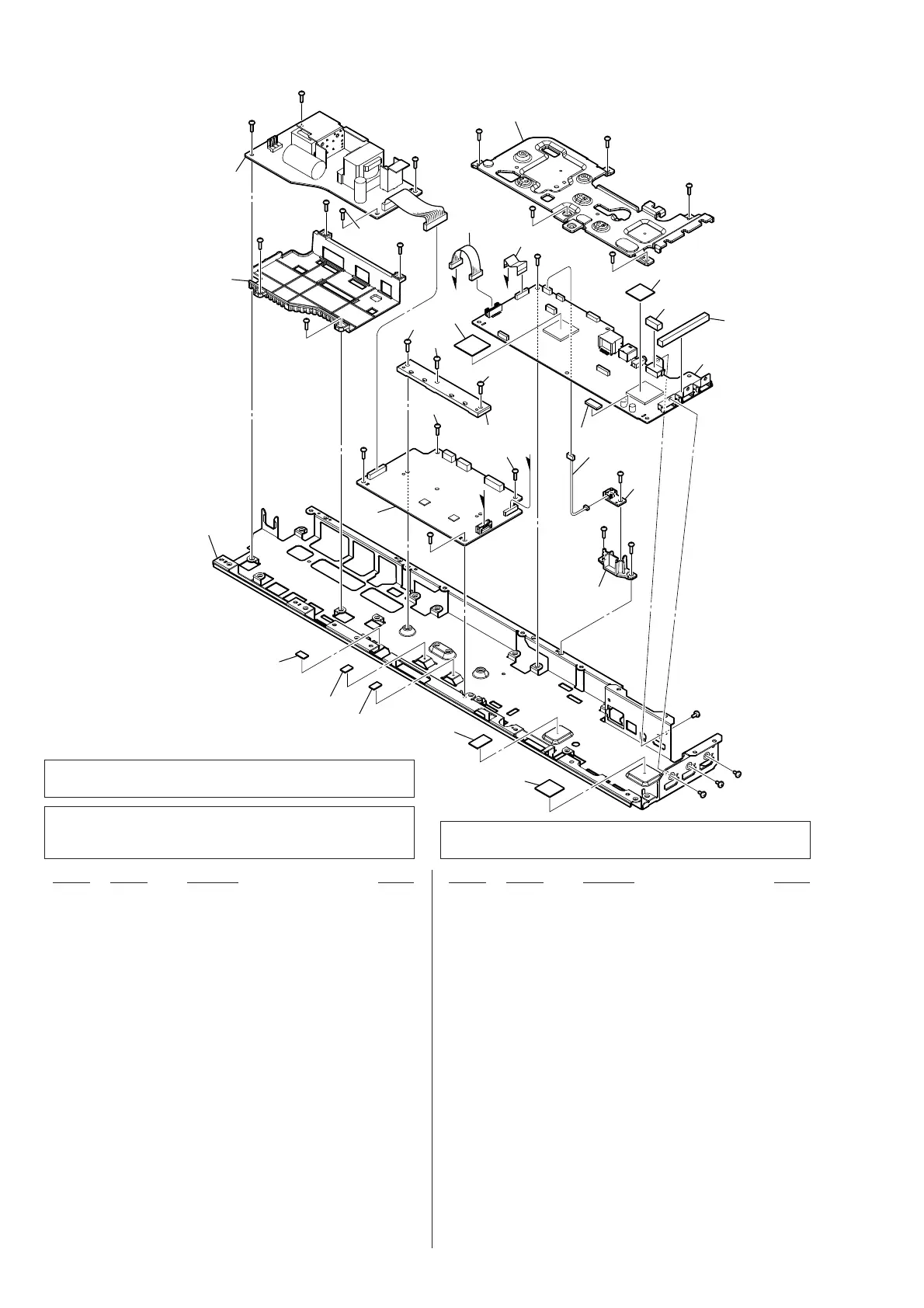

6-5. MAIN BOARD SECTION
#4
201
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
H
I
H
I
#4
#4
#4
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
202
203
203
203
204
205
205
206
206
206
not supplied
FFC5
207
208
209
210
211
212
213
Note 1: If the radiation sheets (Ref. No. 201, 202, 203, 207) are dam-
aged, be sure to replace them with new parts.
Note 2: When the COMPLETE MB-1509 BOARD (Ref. No. 212) is
replaced, refer to “NOTE OF REPLACING THE MB-1509
BOARD OR WLAN/BT COMBO CARD” on page 5.
Note 3: As for WIRE KIT (BAR FFC), all fl at fl exible cables (Ref.
No. FFC1, FFC2, FFC3, FFC4, FFC5) will be 1 set.
9 212 A-2122-681-A MB-1509 BOARD, COMPLETE (SV) (EA)
(See Note 2)
9 212 A-2122-682-A MB-1509 BOARD, COMPLETE (SV) (SP)
(See Note 2)
9 212 A-2122-683-A MB-1509 BOARD, COMPLETE (SV) (RU)
(See Note 2)
9 212 A-2122-684-A MB-1509 BOARD, COMPLETE (SV) (AUS)
(See Note 2)
9 212 A-2122-687-A MB-1509 BOARD, COMPLETE (SV) (CH)
(See Note 2)
9 212 A-2122-689-A MB-1509 BOARD, COMPLETE (SV) (TW)
(See Note 2)
9 212 A-2122-690-A MB-1509 BOARD, COMPLETE (SV) (LA)
(See Note 2)
9 212 A-2122-691-A MB-1509 BOARD, COMPLETE (SV) (BR)
(See Note 2)
9 212 A-2122-692-A MB-1509 BOARD, COMPLETE (SV) (AR)
(See Note 2)
213 A-2089-310-A REPEATER BOARD, COMPLETE
FFC5 9-833-607-27 WIRE KIT (BAR FFC) (26P) (See Note 3)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.2
