Sony SA-NT5 - SECTION 6 EXPLODED VIEWS; Overall Section Exploded View

64
HT-NT5
SECTION 6
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

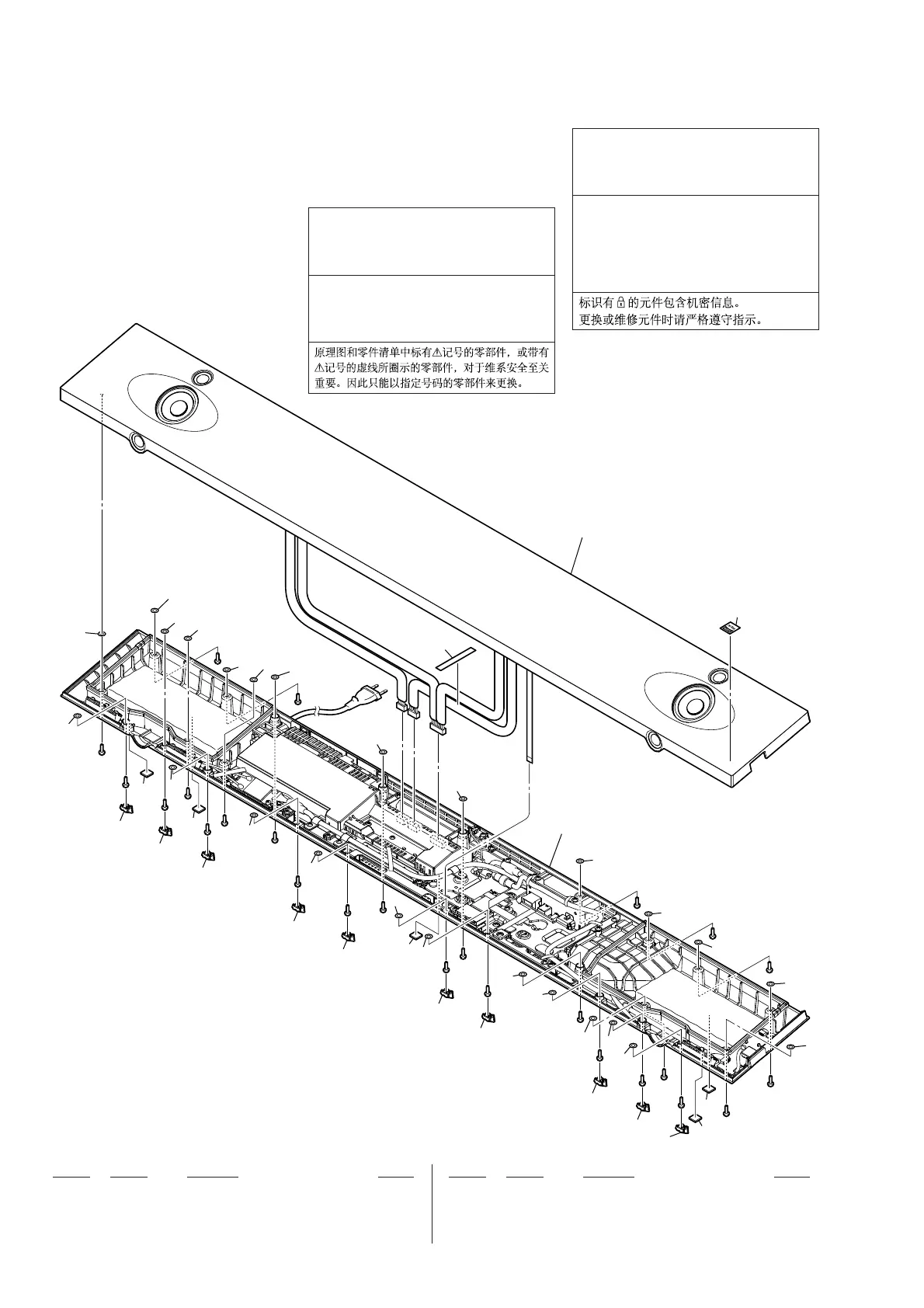

6-1. OVERALL SECTION
#1
2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
1
2
1
1
1
1
1
1
1
1
1
2
2
5
5
5
5
5
2
3
4
bottom cabinet section
top cabinet section
5
5
5
6
6
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
1 4-586-594-01 CAP (BOTTOM)
2 4-247-752-01 FOOT, RUBBER
* 3 3-378-109-01 CUSHION, SARANET
4 4-477-465-21 HI-RES LABEL
5 4-597-630-01 WASHER (t = 0.25 mm)
6 4-597-630-11 WASHER (t = 0.45 mm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.2
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
