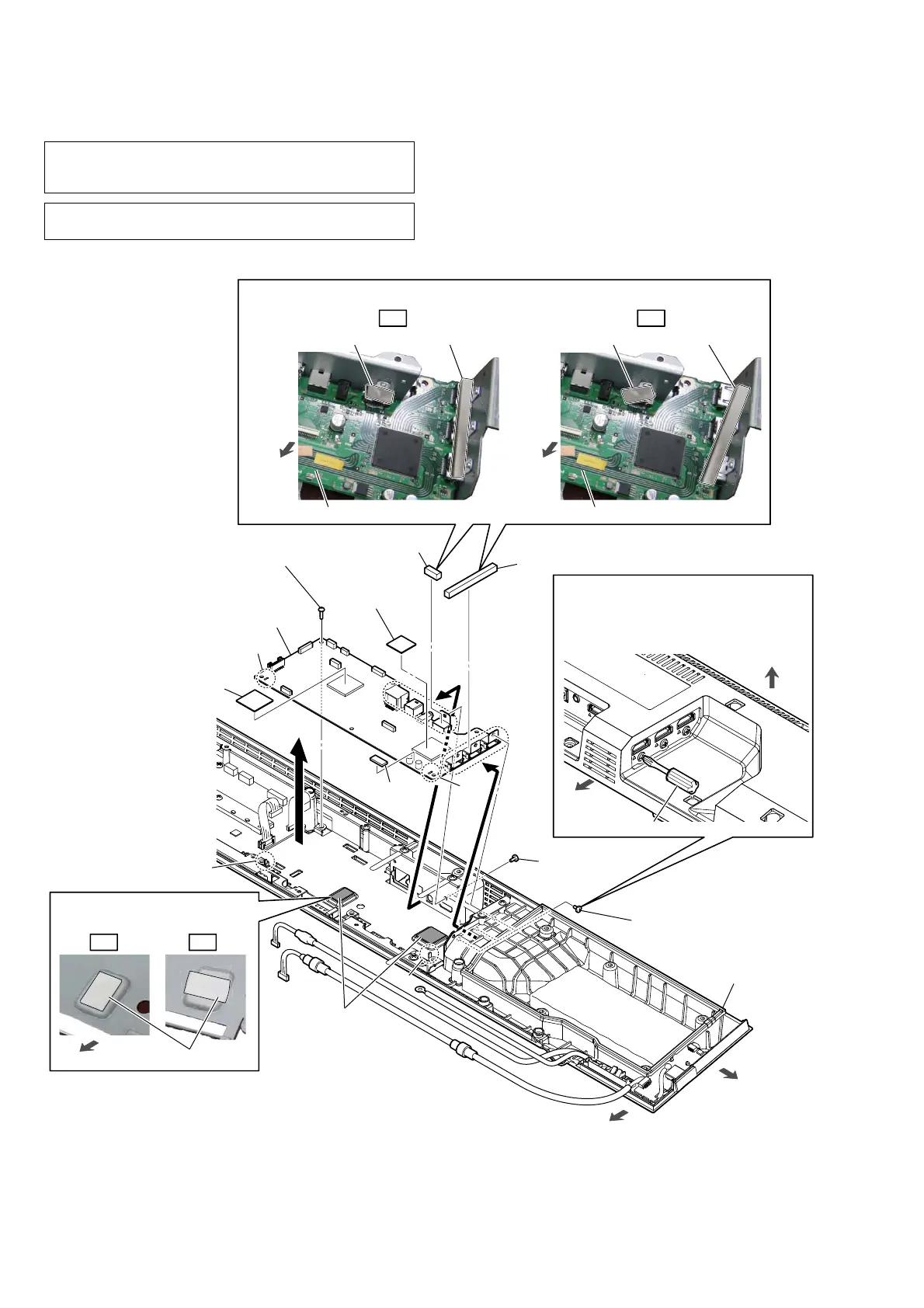

2-25. MB-1509 BOARD-2
OK NG
Note 3:
Please use the short screwdriver. If you
do not have a short screwdriver, refer to
“2-26. BOTTOM CHASSIS BLOCK”
and remove the whole bottom chassis
block.
short screwdriver
rear side
bottom side
front side
bottom cabinet block
,QVWDOODWLRQGLUHFWLRQIRU
WKHUDGLDWLRQVKHHW
,QVWDOODWLRQSRVLWLRQIRUWKHJDVNHW6/
front side
radiation sheet
right side
1 radio wave
absorption
sheet
2 radiation sheet
See Note 2
3 gasket (SL)
5 packing
(CZ2)
7 screw
(BVTP3 u 8)
6 three screws
(B3 u 5)
4 gasket (SL)
gasket (SL)
gasket (SL) gasket (SL)gasket (SL)
6 screw
(B3 u 5)
8 MB-1509 board
Note 4:
When installing the MB-1509 board,
align the two ribs and two holes.
MB-1509 board
hole
hole
rib
rib
OK NG
MB-1509 board
front side front side
radiation sheet
See Note 2
Note 1: When the COMPLETE MB-1509 BOARD is replaced, refer
to “NOTE OF REPLACING THE MB-1509 BOARD OR
WLAN/BT COMBO CARD” on page 5.
Note 2: If the radiation sheet is damaged, be sure to replace them with
new parts.
