Sony SA-NT5 - WLAN;BT Combo Card (WIFI1)-1

HT-NT5
20

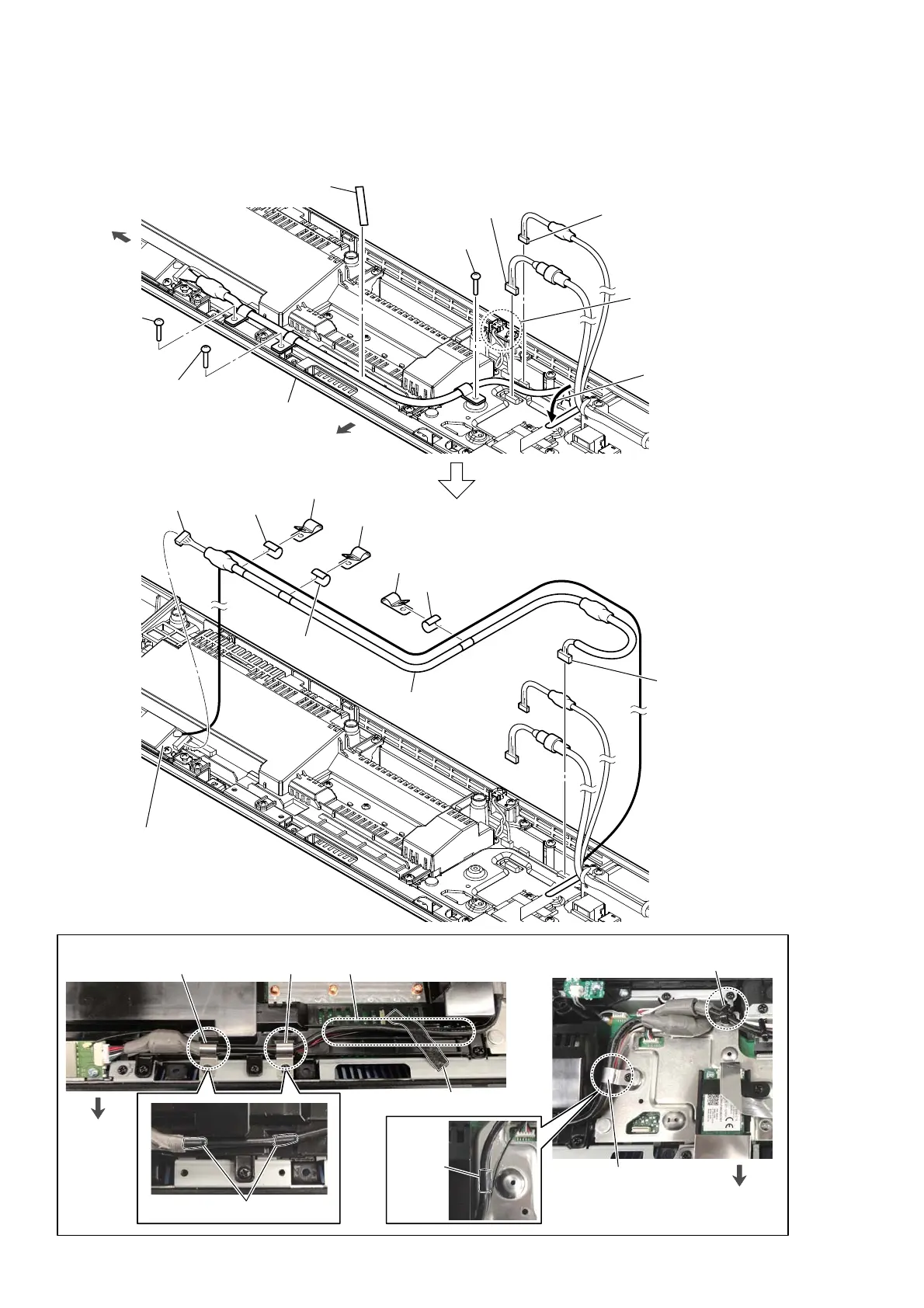

2-15. WLAN/BT COMBO CARD (WIFI1)-1
• Continued on 2-16 (page 21).
REPEATER board
Note:
Be careful not to damage
the REPEATER board.
1 Remove the two cables
and coaxial harness [black]
from the wiring stopper.
8 connector
5 screw
(BVTP3 u 10)
5 screw
(BVTP3 u 10)
5 screw
(BVTP3 u 10)
4 saranet cushion
front side
left side
bottom cabinet block
6 clamp (wire)
7 connector
(CN502)
0 cable
6 clamp (wire)
6 clamp (wire)
WLAN/BT combo card
cushion (QJ, S)
groove
wiring stopper
:LUHVHWWLQJ
cushion
(QJ, S)
clamp (wire)
clamp (wire)
clamp (wire)
saranet cushion
front side
front side
2 USB-CHUKEI board
cable connector
(CN501)
3 USB-CHUKEI board
cable connector
(CN5004)
9
cushion
(QJ, S)
9
cushion
(QJ, S)
9
cushion (QJ, S)
