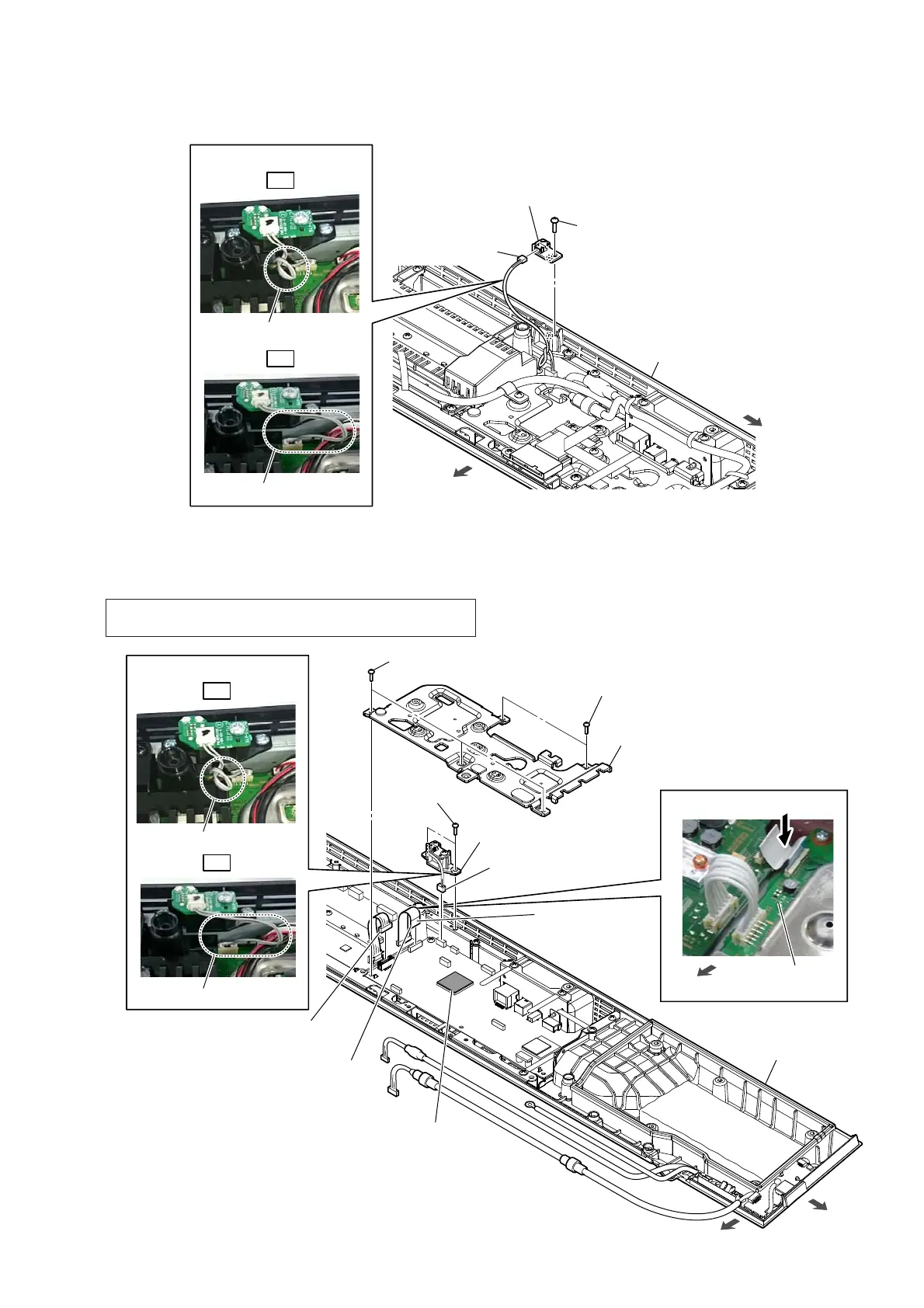

2-23. REPEATER BOARD
2-24. MB-1509 BOARD-1
• Continued on 2-25 (page 26).
OK
NG
:LUHVHWWLQJ
front side
bottom cabinet block
1 connector
(CN1100)
3 REPEATER board
2 screw
(BVTP3 u 8)
right side
Twisted.
Not twisted.
OK
NG
Push.
front side
bottom cabinet block
:LUHVHWWLQJ
MB-1509
board
front side
1 connector
(CN5005)
7 shield (MB)
:LUHVHWWLQJ
2 two screws
(BVTP3 u 8)
3 REPEATER board block
6 three screws
(BVTP3 u 8)
6 two screws
(BVTP3 u 8)
right side
5 connector
(CN301)
The opposite side is
the terminal side.
4 FFC 26P
(CN705)
Twisted.
Not twisted.
radiation sheet
See Note
Note: If the radiation sheet is damaged, be sure to replace them with
new parts.
