Sony SA-NT5 - Bottom Chassis Block

HT-NT5
27

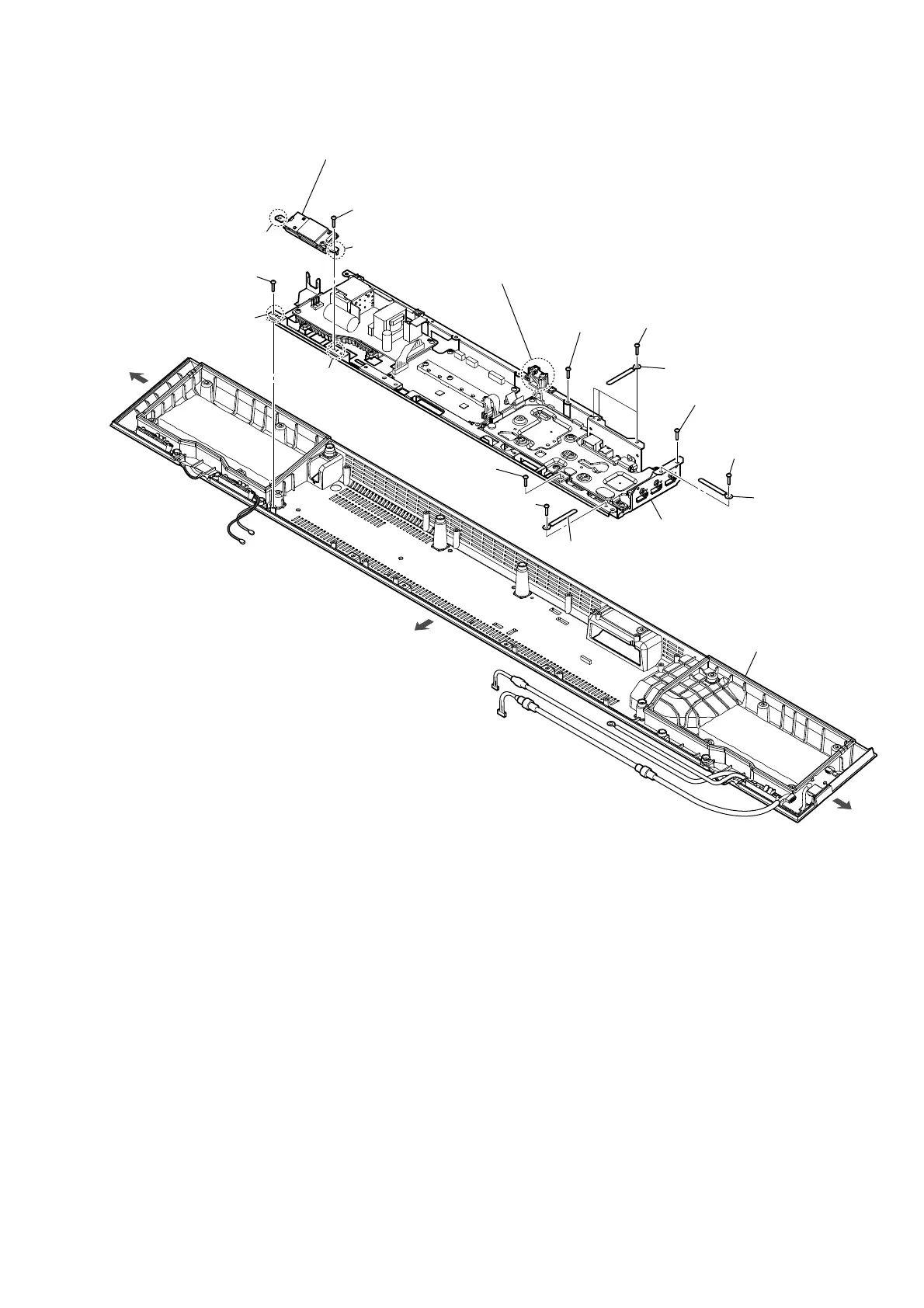

2-26. BOTTOM CHASSIS BLOCK
front side
bottom cabinet block
right side
left side
REPEATER board
Note 2:
Be careful not to damage
the REPEATER board.
5 bottom chassis block
4 three wiring stoppers
1 screw
(BVTP3 u 10)
3 three screws
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
4 wiring stopper
4 wiring
stopper
3 screw
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
3 screw
(BVTP3 u 10)
rib
rib
hole
hole
2 WLAN/BT combo card block
Note 1:
When installing the WLAN/BT combo card
block, align the two ribs and two holes.
