Sony SA-NT5 - BTW (BT) Board

HT-NT5
24

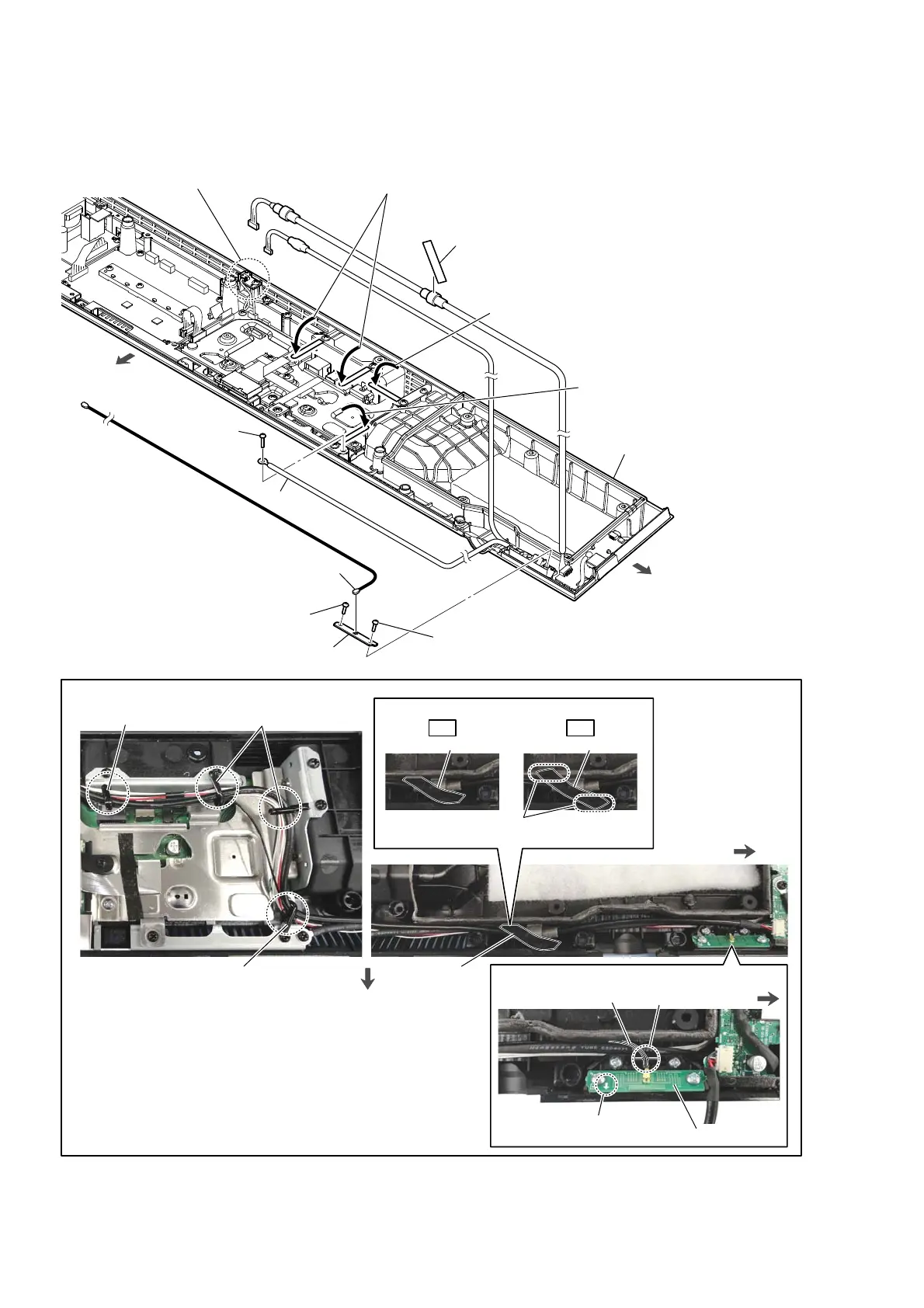

2-22. BTW (BT) BOARD
OK NG
1 saranet cushion
5 coaxial harness
[black]
3 screw
(BVTP3 u 10)
7 BTW (BT) board
REPEATER board
Note 1:
Be careful not to damage
the REPEATER board.
2 Remove the two cables and
coaxial harness [black] from
the wiring stopper.
2 Remove the two cables
from the wiring stopper.
2 Remove the two cables and
coaxial harness [black] from
the two wiring stoppers.
6 screw
(BVTP3 u 8)
6 screw
(BVTP3 u 8)
4 wire
with lug
front side
right side
bottom cabinet block
:LUHVHWWLQJ
wiring stopper
front side
wiring stopper
wiring stopper
right side
BTW (BT) board
coaxial harness [black]
Upward arrow.
right side
saranet cushion saranet cushion
saranet
cushion
3DVWLQJSRVLWLRQRIWKHVDUDQHWFXVKLRQ
Note 2:
Do not affix the saranet cushion over
the edges of cabinet (bottom) assy.
,QVWDOODWLRQGLUHFWLRQIRUWKH%7:%7ERDUG
groove
