67
HT-NT5

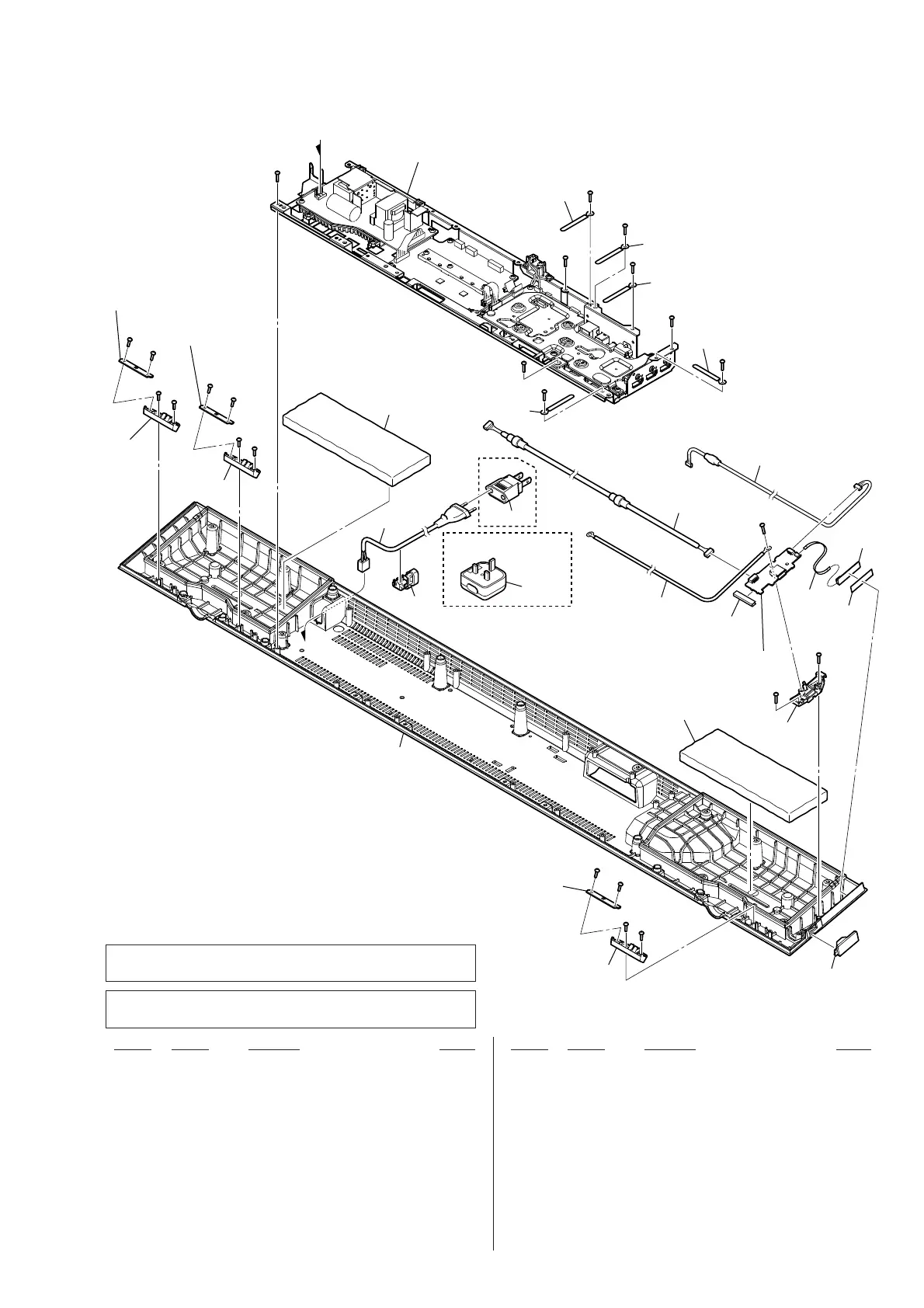

6-4. CHASSIS SECTION
#2
151
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
G
G
not supplied
not supplied
not supplied
not supplied
not supplied
MAIN board section
not supplied
(BTW (BT) board)
#1
#2
#2
#2
not supplied
(BTW (WIFI-2) board)
not supplied
(BTW (WIFI-1) board)
#2
#2
#2
#2
#2
#2
#2
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
FFC3
AC1
152
not supplied
(USB-CHUKEI board)
153
154
155
ACP1
(SP for Hong Kong)
(See Note 2)
ACP2
(LA)
151 4-582-246-01 LID (USB)
152 X-2592-424-1 CABINET (BOTTOM) ASSY
0 153 4-966-267-12 BUSHING (FBS001), CORD
154 A-2092-220-A NFC BOARD, COMPLETE
155 4-586-705-21 DOUBLE ADHESIVE TAPE
0 AC1 1-834-966-42 POWER-SUPPLY CORD (SP)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-835-706-23 CORD, POWER-SUPPLY (BR)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 AC1 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 AC1 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 AC1 1-839-986-12 POWER-SUPPLY CORD (AEP, RU, LA)
0 AC1 1-839-999-22 POWER-SUPPLY CORD (UK, EA)
0 ACP1 1-844-323-11 ADAPTOR, CONVERSION PLUG 3P (SV)
(SP for Hong Kong only) (See Note 2)
0 ACP2 1-569-008-33 ADAPTOR, CONVERSION 2P (AC plug adaptor)
(LA)
FFC3 9-833-607-27 WIRE KIT (BAR FFC) (6P) (See Note 1)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.2
Note 1: As for WIRE KIT (BAR FFC), all fl at fl exible cables (Ref.
No. FFC1, FFC2, FFC3, FFC4, FFC5) will be 1 set.
Note 2: Ref. No. ACP1 is a service part used only for the SP model
sold in Hong Kong.
To Next Page
