Sony SA-NT5 - USB-CHUKEI Board Schematics and Layout; USB-CHUKEI Board Layout; USB-CHUKEI Board Schematic

HT-NT5
HT-NT5
4747

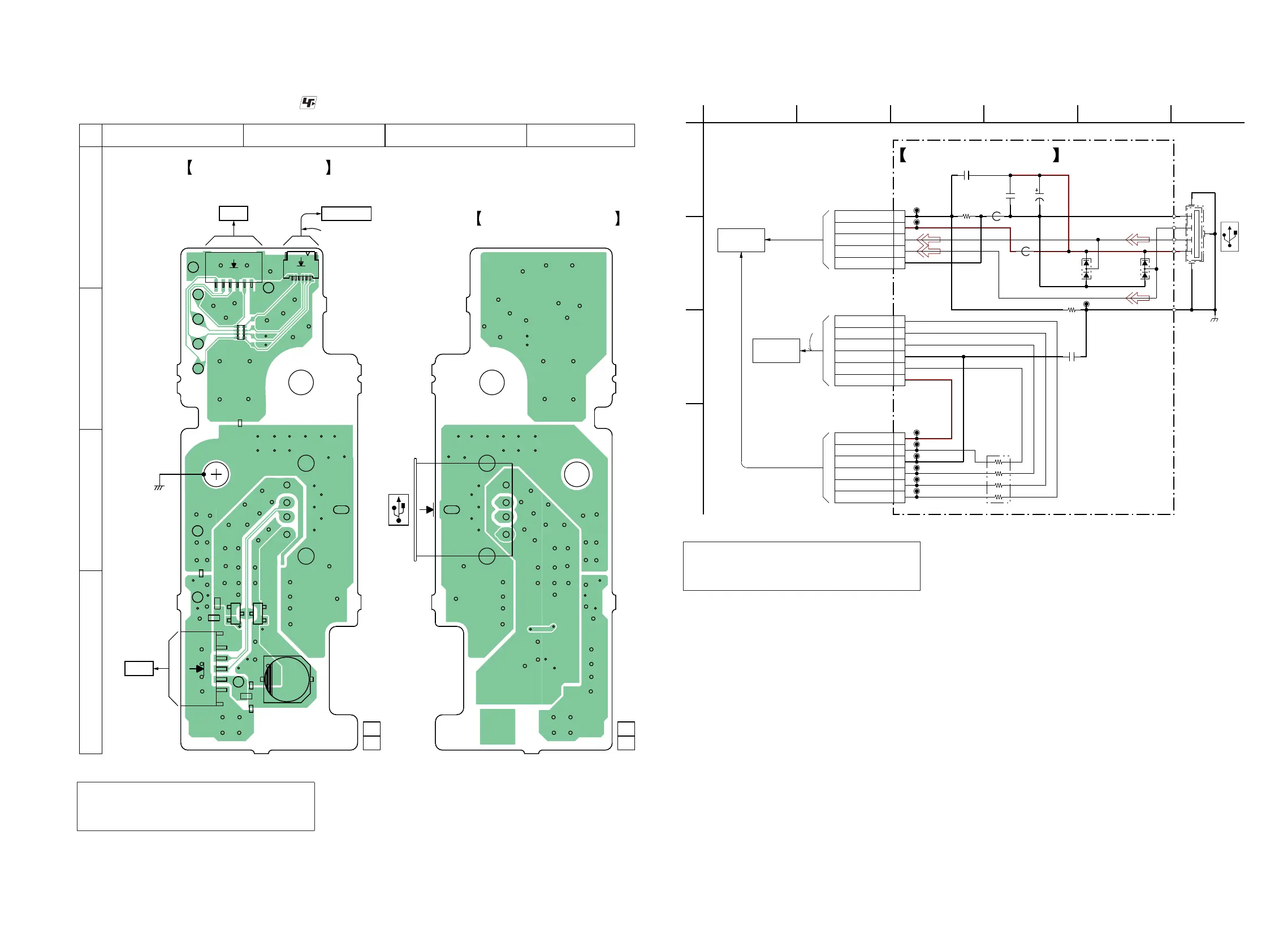

5-6. PRINTED WIRING BOARD - USB-CHUKEI Board -
• : Uses unleaded solder.
• See page 45 for Circuit Boards Location.
FB1401
FB1402
CL1401
CL1402
CL1403
CN1401
CL1451
6
61
1
CL1452
CL1453
CL1454
CL1455
C1401
CL1456
C1402
C1403
D1401 D1402
R1401
5
1
R1402
CN1451
CN1453
C1451
RB1401
CN1402
4
1
USB-CHUKEI BOARD
(COMPONENT SIDE)
USB-CHUKEI BOARD
(CONDUCTOR SIDE)
1-980-615-
11
(11)
1-980-615-
11
(11)
MB-1509 BOARD
CN5004
>03P
MB-1509
BOARD
CN501
>02P
NFC BOARD
FFC3
(CHASSIS)
A
B
C
D
1 2 3 4
K
A
K
A
A/K
K/A
Note: When the NFC board is defective, replace the complete
mounted board.
The mounted parts cannot be replaced with single for
repairing.
5-7. SCHEMATIC DIAGRAM - USB-CHUKEI Board -
220p
C1402220p
C1401
0
R1401
0
R1402
6.3V
220
C1403
CN1402
5P
CN1401
GND 1
DP 2
DM 3
VBUS 4
GND 5
6P
CN1453
RFDET 1
IRQ 2
SDA 3
GND 4
SCL 5
VDD 6
6P
CN1451
1UNSW3.3V
2NFC_SCL
3NFC_GND
4NFC_SDA
5NFC_IRQ
6NFC_RFDET
47
RB1401
CL1453
CL1454
CL1455
CL1456
CL1451
CL1452
CL1403
CL1401
CL1402
BAV99-215
D1401
BAV99-215
D1402
FB1402
FB1401
0.01
C1451
USB-CHUKEI BOARD
4
3
2
1
(CHASSIS)
FFC3
NFC BOARD
(3/6)
BOARD
MB-1509
1
C
D
62
B
3
A
45
Note: When the NFC board is defective, replace the complete
mounted board.
The mounted parts cannot be replaced with single for
repairing.
(Page 46)
(Page 46)
