10
STR-DA5300ES

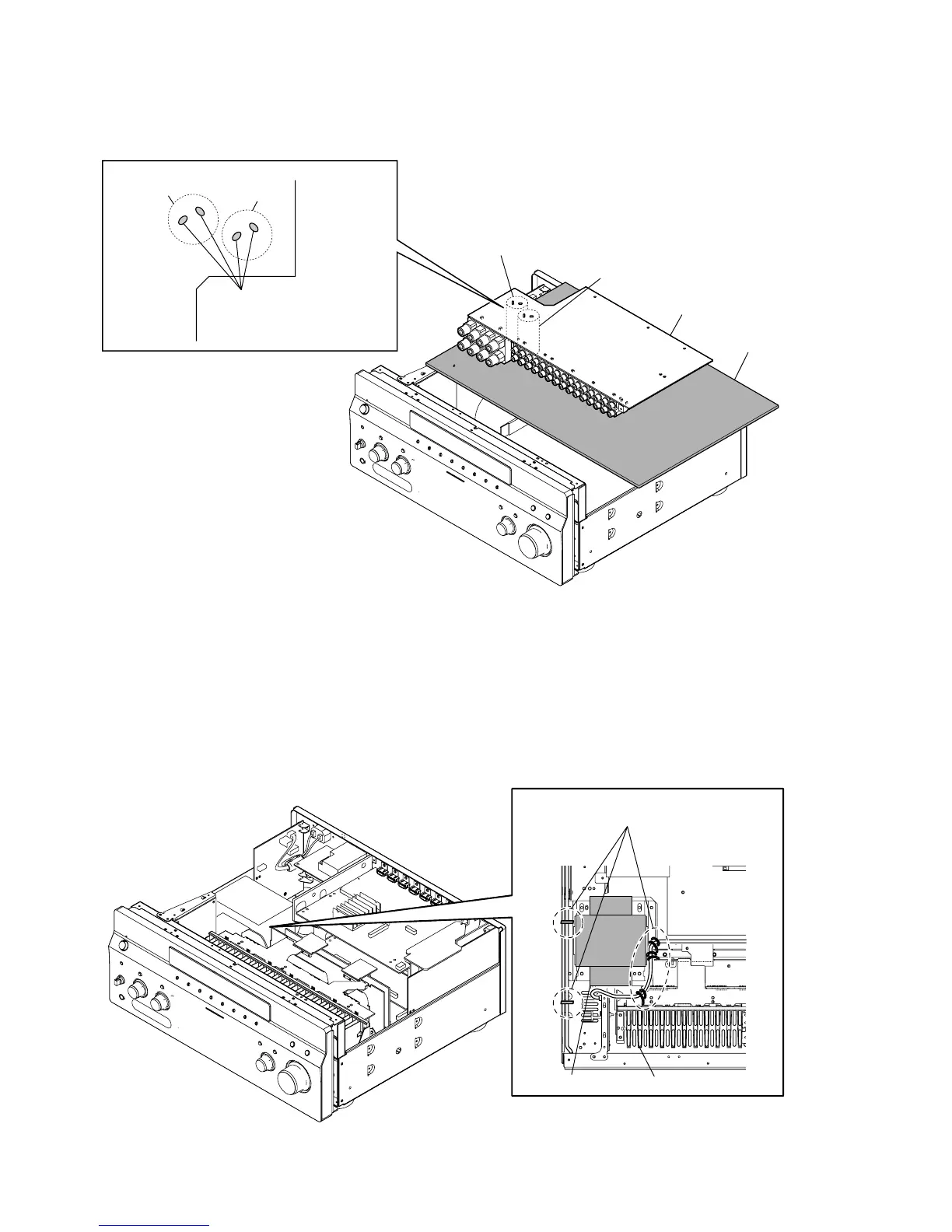

LEAD WIRE SETTING
insulating sheet
MAIN board
In checking the board, make two
capacitors discharge for electric
shock prevention. (R: 800
Ω
/2W)
C2490
C2490
C2491
C2491
CAUTION
MAIN BOARD SERVICE POSITION
heat sink
The lead wire must not come in contact with the transformer and the heat sink.
transformer
Please band together so that a primary side cable
cannot touch a power transformer and heat sink.
To Next Page
