Sony STR-DA5300ES - 7-9. MAIN BOARD SECTION

181
STR-DA5300ES

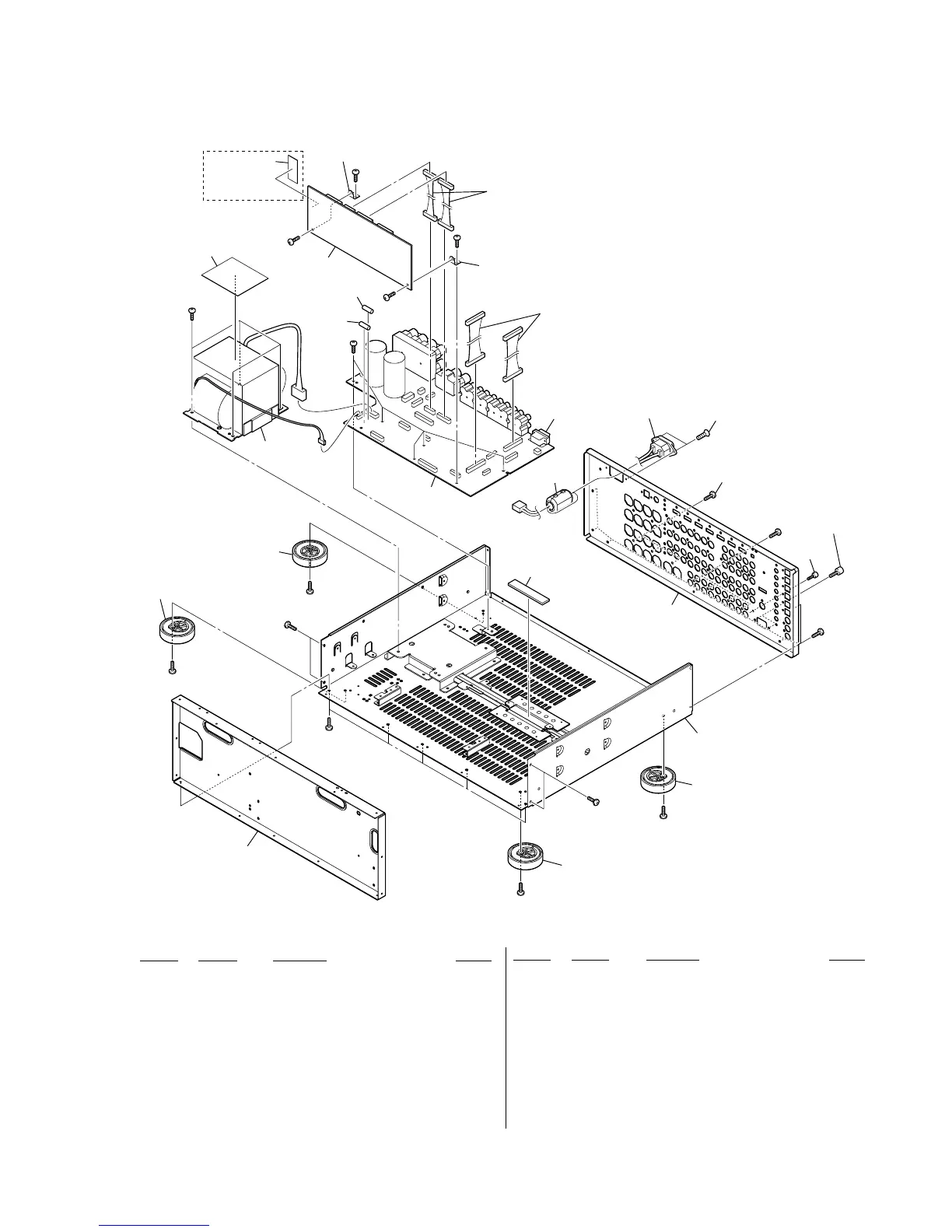

7-9. MAIN BOARD SECTION
#1
#1
#1
J01
#1
#1
#1
#1
#1
#1
#1
#4
#4
#4
#4
#5
not supplied
T001
F1403
F1404
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
408
408
408
408
402
403
405
404
406
J1499
407
supplied
with J1499
401
not supplied
not supplied
(US, CND)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 A-1252-334-A E-VOL BOARD, COMPLETE
402 A-1252-304-A MAIN BOARD, COMPLETE (US, CND)
402 A-1252-305-A MAIN BOARD, COMPLETE (AEP, ECE, UK)
403 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
404 2-580-644-01 SCREW, +KTP2 3X8
405 3-704-515-51 SCREW (BV/RING)
406 4-947-010-01 SCREW, FEEDER FIXED
407 3-196-712-01 SHEET (H), RADIATION
408 X-4955-348-1 FOOT ASSY
0F1403 1-532-504-33 FUSE (T4AL/250V)
0F1404 1-532-504-33 FUSE (T4AL/250V)
0J01 1-821-082-21 INLET, AC 2P (- AC IN)
J1499 1-815-737-11 CONNECTOR, (D) SUB 9P (RS-232C)
0T001 1-445-238-11 TRANSFORMER, POWER (US, CND)
0T001 1-445-239-11 TRANSFORMER, POWER (AEP, ECE, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-885-09 SCREW +BVTT 4X16 (S)
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
Ver. 1.1
