Sony STR-DA5300ES - 7-4. DISPLAY BOARD SECTION

176
STR-DA5300ES

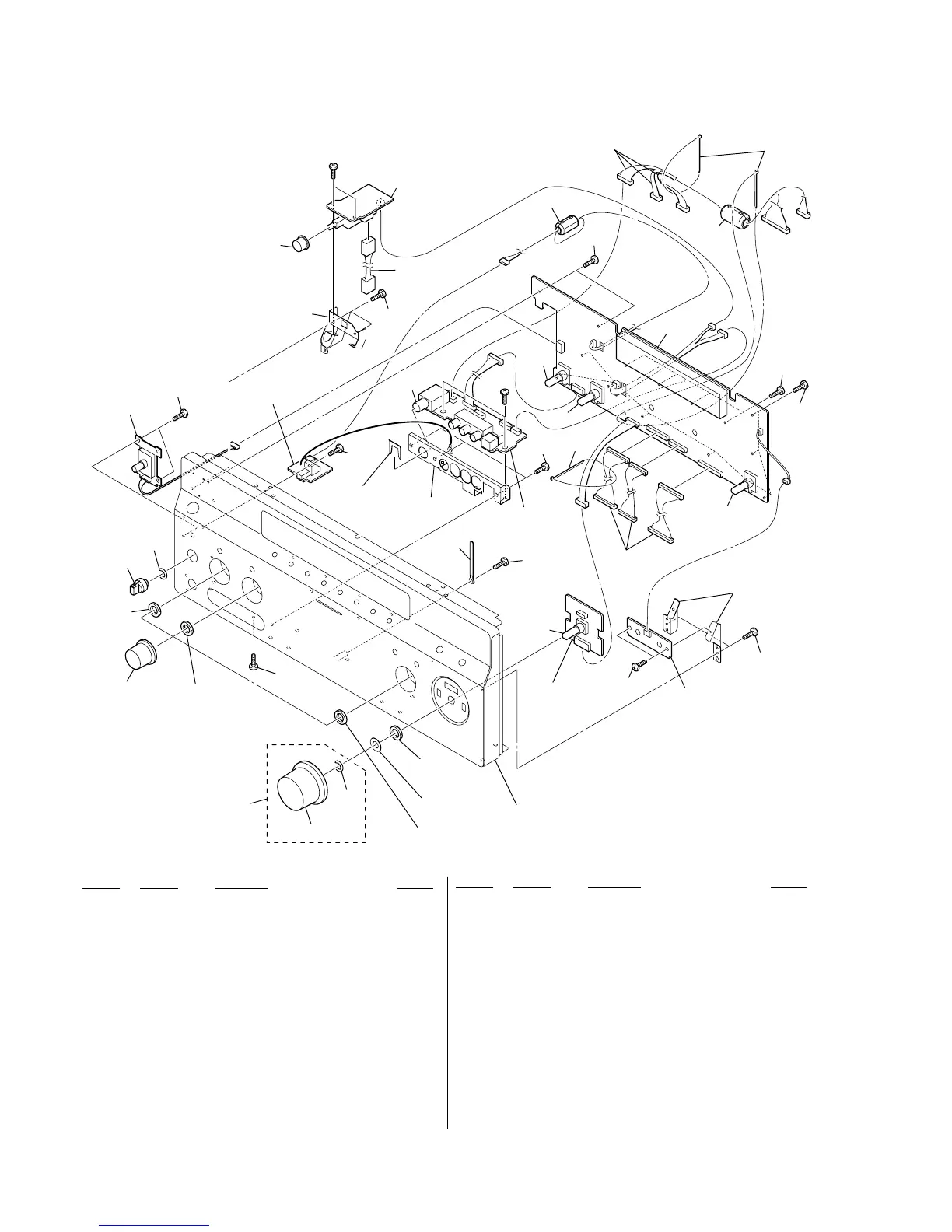

7-4. DISPLAY BOARD SECTION
156
155
157
152
153
154
154
154
154
158
154
154
154
154
#1
#1
not supplied
(MIC board)
not supplied
not supplied
not supplied
not supplied
not supplied
(MAIN VOL board)
not supplied
(VIDEO3 board)
S715
S714
S713
S722
not supplied
not supplied
(KEY1 board)
supplied
with S722
front panel section
supplied with S715
supplied
with S714
supplied
with S713
not supplied
not supplied
supplied with
J702
not supplied
(AC SW board)
151
159
not supplied
J702
154
165
164
164
163
161
162
160
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 X-2176-946-1 KNOB (VOL) ASSY (BLACK)
151 X-2176-947-1 KNOB (VOL) ASSY (SILVER)
152 3-704-515-22 SCREW (BV/RING)
153 2-661-141-31 MENU KNOB (BLACK)
153 2-661-141-41 MENU KNOB (SILVER)
154 3-087-053-01 +BVTP2.6 (3CR)
155 1-543-793-41 FILTER, CLAMP (FERRITE CORE) (US, CND)
156 X-4955-616-1 BUTTON (POWER) ASSY (BLACK)
156 X-4955-618-1 BUTTON (POWER) ASSY (SILVER)
157 A-1252-350-A DISPLAY BOARD, COMPLETE (US, CND)
157 A-1252-351-A DISPLAY BOARD, COMPLETE (AEP, ECE, UK)
158 3-087-053-11 +BVTP2.6 (3CR)
159 3-350-426-01 SPRING, RING
160 4-246-103-02 KNOB (SPEAKER) (SILVER)
160 4-246-103-22 KNOB (SPEAKER) (BLACK)
161 2-893-374-01 SPRING, RING
162 A-1252-357-A SPSW BOARD, COMPLETE
* 163 1-543-830-11 CLAMP, SLEEVE FERRITE (US, CND)
164 3-701-748-00 CLAMP
165 4-237-065-01 CLAMP (L35)
J702 1-815-313-11 JACK (PHONES)
S713 1-418-400-11 ENCODER, ROTARY (TONE)
S714 1-418-400-11 ENCODER, ROTARY (TUNING)
S715 1-418-400-11 ENCODER, ROTARY (INPUT SELECTOR)
S722 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ver. 1.1
