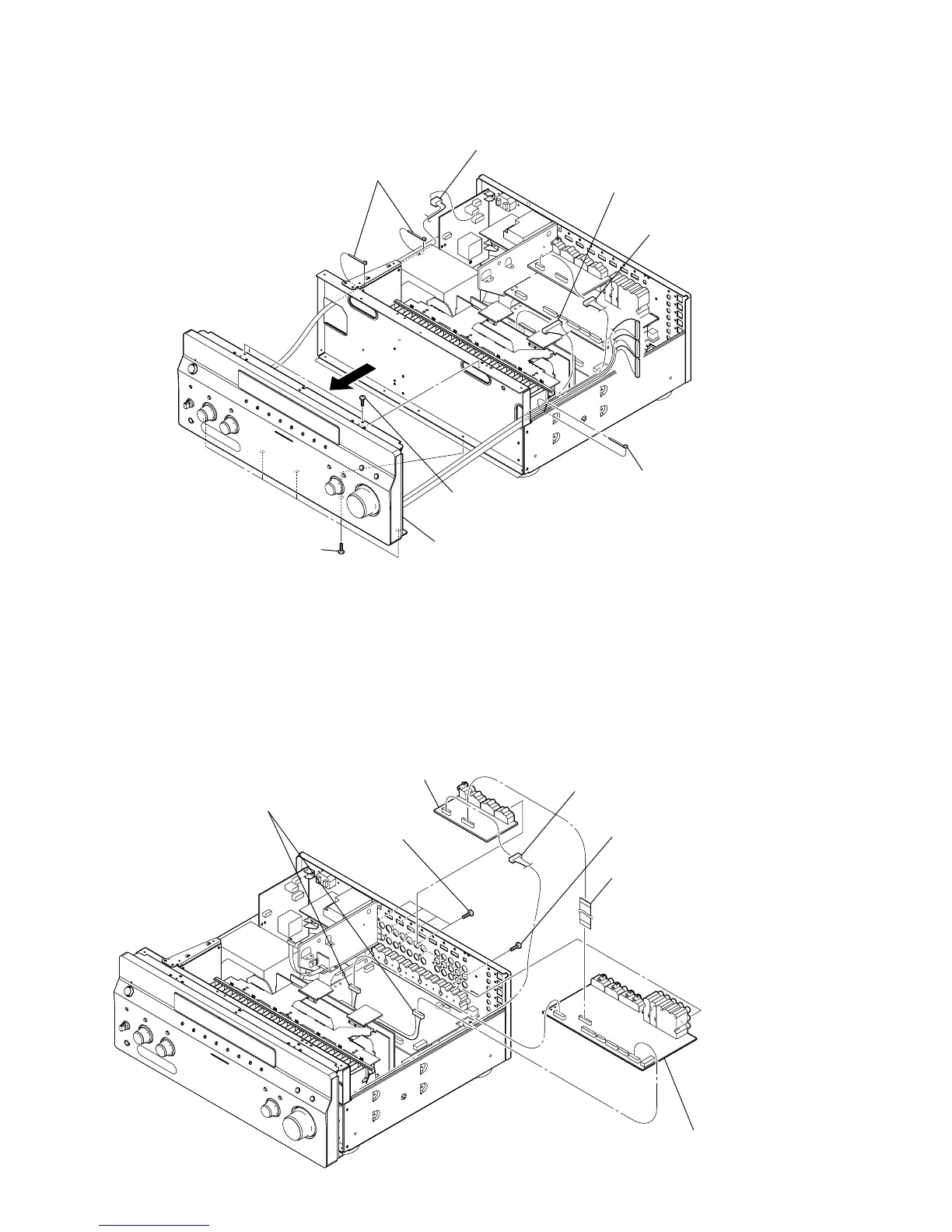

3-6. FRONT PANEL SECTION
3-7. S-VIDEO BOARD AND A-VIDEO BOARD
3 connector
(CNP53)
7 two screws
(BVTP3
× 8)
6 five screws
(BVTP3
× 8)
9 front panel section
8
5 connector
(CN6904)
4 connector
(CN606)
1 two clamps
2 clamp
5 two connectors
(CN6518, CN6519)
3 four screws
(BVTP3
× 8)
4 S-VIDEO board
7 A-VIDEO board
1 connector
(CN6904)
2 wire (flat type) (21 core)
(S-VIDEO board (CN6903),
A-VIDEO board (CN6509))
6 seven screws
(BVTP3
× 8)
