STR-DA5300ES
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 A-1252-517-A DC-DC BOARD, COMPLETE
21-500-386-11 FILTER, CLAMP (FERRITE CORE) (US, CND)
33-701-748-00 CLAMP
42-580-630-01 SCREW, +BVST 4X8 (for BLACK)
47-685-881-04 SCREW +BVTT 4X8 (S) (for SILVER)
54-227-843-03 SCREW (TP), FLAT HEAD (for BLACK)
5 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER)
6 2-668-102-11 CASE (BLACK)
6 2-668-102-31 CASE (SILVER)
0F1405 1-532-506-33 FUSE (T6.3AL/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
1
2
4
5
5
4
not supplied
not supplied
not supplied
not supplied
not supplied
DIGITAL board section
not supplied
F1405
#1
#1
#1
6
3
3
3
3
(US, CND)
(AEP, ECE,
UK)
(US, CND)

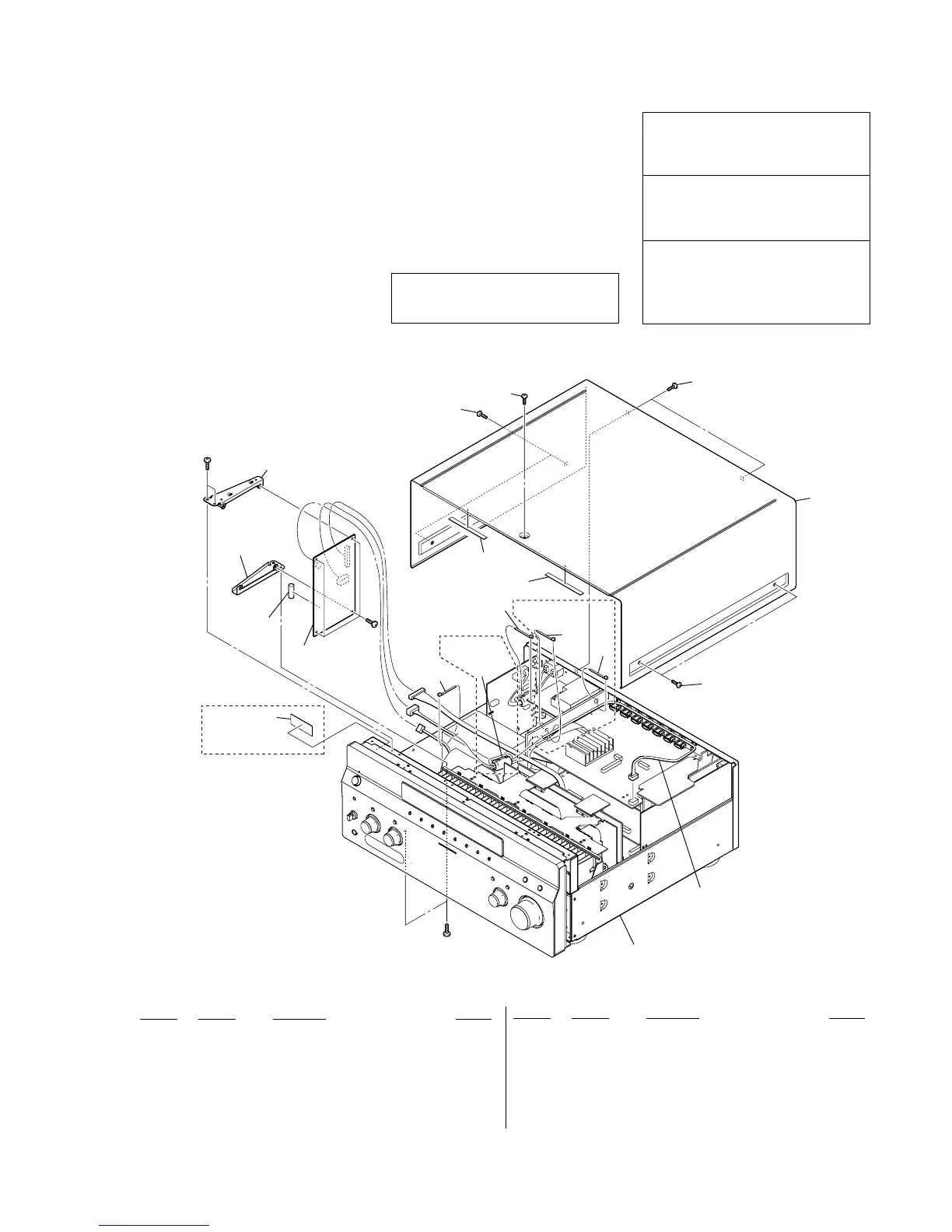

7-1. CASE SECTION
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
CND : Canadian model
ECE : Russian and Ukrainian models
• Color Variation
US, CND, UK: BLACK
AEP, ECE : BLACK/SILVER
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
Les composants identifiés par une marque 0
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque 9
contiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et /
ou réparé.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ver. 1.1
